Farmer 2 S har en trecylindrig, vattenkyld MWM D 208-3 på 2233 cm³. DLG-provets exemplar gav 40,2 metriska hk på kraftuttaget; det separata motorprovet redovisar 45,4 metriska hk. Rapporten beskriver 13 framåtväxlar, fyra backväxlar och en vätskekoppling.
Värdena gäller rapportens provexemplar och mätvillkor. Motor- och kraftuttagseffekt har olika mätpunkter. Tre dragkraftsuppgifter och vändradier hålls utanför tabellen på grund av motsägande uppgifter i originalrapporten. Produktionsperiod, modellår, PIN-gränser och svensk leveransspecifikation är inte fastställda.
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 · Fendt Farmer 2 S — Wleiter, Wikimedia Commons
The report cover names Fendt Farmer 2 S. Physical p.4 identifies tractor specimen serial 138/11/0846 and engine serial D 208.3.07886; these identify the report specimen only.
No generation, model year, production period, serial/PIN boundary or market is stated.
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17

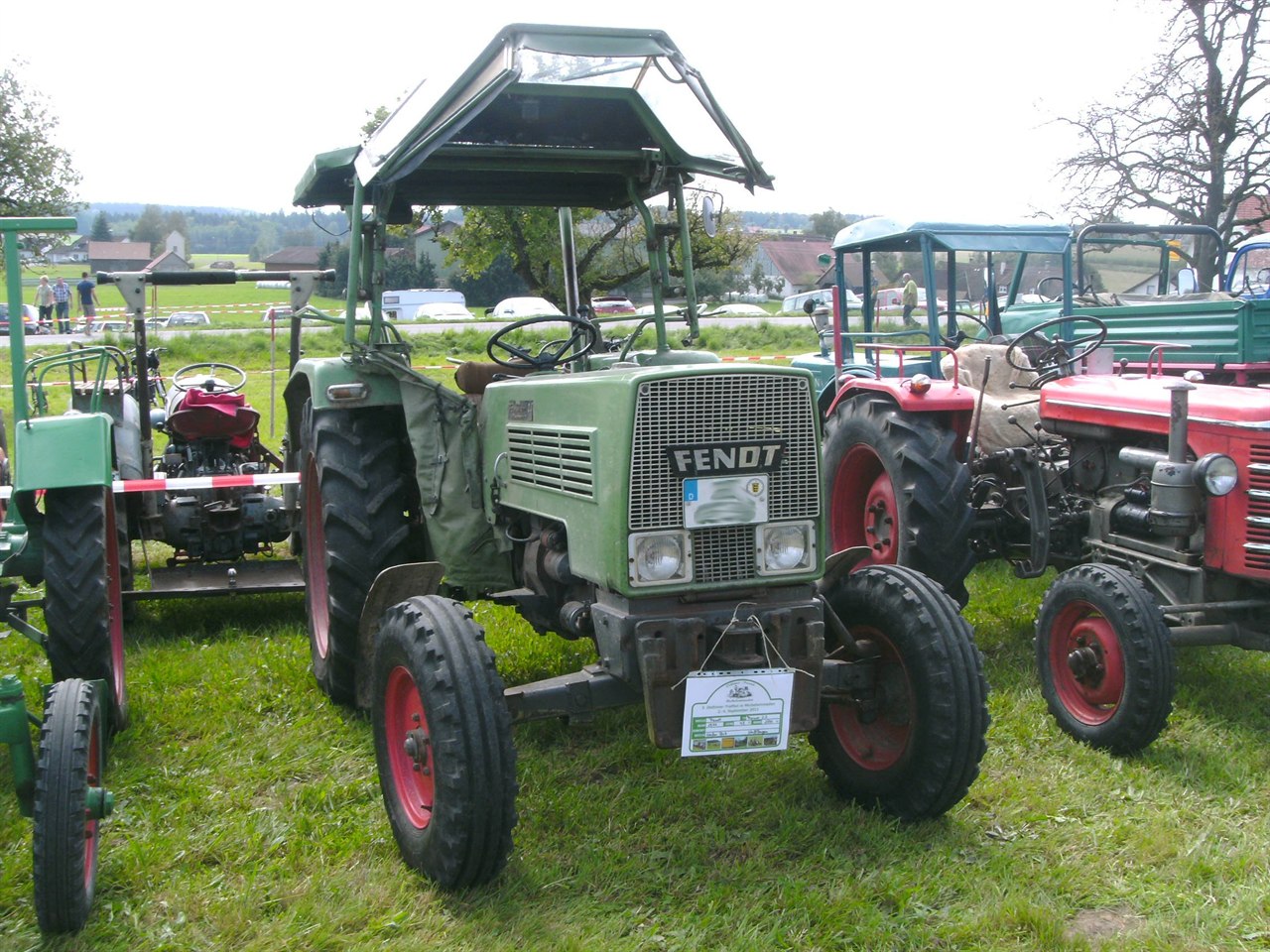

The licensed Commons caption names Farmer 2 S, but the original badge is unreadable; the image is not identified as the DLG specimen.
Keep image unbound unless root accepts caption-based identity. Do not adopt the filename’s 1970/43 PS.
Fendt Farmer 2 S
Flera värden eller villkor i samma källrad; ingen enskild fart har valts för en mätare.
Fendt Farmer 2 S as named in DLG/OECD Report No.
FaktaFlera värden eller villkor i samma källrad; ingen enskild fart har valts för en mätare.
Fendt Farmer 2 S as named in DLG/OECD Report No.
FaktaFlera värden eller villkor i samma källrad; ingen enskild fart har valts för en mätare.
Fendt Farmer 2 S as named in DLG/OECD Report No.
FaktaFlera värden eller villkor i samma källrad; ingen enskild fart har valts för en mätare.
Fendt Farmer 2 S as named in DLG/OECD Report No.
FaktaFendt Farmer 2 S as named in DLG/OECD Report No.
FaktaFendt Farmer 2 S as named in DLG/OECD Report No.
FaktaÖvriga uppgifter · Motor och effekt · Hydraulik och lyft · Transmission · Service och underhåll · Kraftuttag · Mått och vikt
Fendt Farmer 2 S as named in DLG/OECD Report No. 300; statements are bounded to the report’s named/tested configuration and stated test conditions.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Motortillverkare | Motorenwerke Mannheim AG, 68 Mannheim as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Make",
"printedCellValue": "Motorenwerke Mannheim AG., 68 Mannheim",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Motormodell | D 208-3 as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Model",
"printedCellValue": "D 208-3",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Provexemplarets motornummer | D 208.3.07886 as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Serial No.",
"printedCellValue": "D 208.3.07886",
"printedUnit": "as printed",
"testCondition": "Specific report specimen only; not a model-wide boundary.",
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Motortyp | 4-stroke diesel engine, water cooled as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Type",
"printedCellValue": "4-stroke Diesel engine, water cooled",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Cylindrar, borrning och slag | 3 cylinders vertical in line; 95 mm bore; 105 mm stroke mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Cylinders",
"printedCellValue": "3 cylinders vertical in line, 95 mm bore, 105 mm stroke",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Slagvolym och kompressionsförhållande | 2233 cm³; compression ratio 17:1 cm³; ratio | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Cylinders — capacity/compression ratio",
"printedCellValue": "capacity 2233 cm³; compression ratio 17:1",
"printedUnit": "cm³; ratio",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Insprutningsmunstycke | Bosch DLL 150 S 393, multi-hole nozzle as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Fuel system",
"printedCellValue": "Bosch type DLL 150 S 393 multihole nozzles; injection pressure 180 kp/cm²",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Insprutningstryck | 180 kp/cm² kp/cm² | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Fuel system — injection pressure",
"printedCellValue": "injection pressure: 180 kp/cm²",
"printedUnit": "kp/cm²",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Insprutningstidpunkt | 28° before TDC degrees | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Fuel system — injection timing",
"printedCellValue": "injection timing: 28° before TDC",
"printedUnit": "degrees",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Regulator och varvtalsområde | Bosch centrifugal governor; governed range 650–2480 rev/min rev/min Exact Bosch governor suffix is not used because the scan is unclear. | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Governor",
"printedCellValue": "Bosch type EP/RSV 325 ... centrifugal type governor; governed range of engine speed 650 rev/min to 2480 rev/min",
"printedUnit": "rev/min",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Märkvarvtal efter arbetssätt | 2480 rev/min for PTO, field, transportation and belt work rev/min | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Governor — rated engine speed",
"printedCellValue": "PTO 2480; field 2480; transportation 2480; belt work 2480 rev/min",
"printedUnit": "rev/min",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Luftrenare | Mann & Hummel oil-bath type; approx. 0.7 l oil capacity l | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Air cleaner",
"printedCellValue": "Mann & Hummel oil bath type cleaner; oil capacity appr. 0.7 l",
"printedUnit": "l",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Motorsmörjning | Forced-feed gear pump, sump strainer, MANN & HUMMEL W39 micron full-flow filter; 7 l oil capacity l | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Lubrication system",
"printedCellValue": "Forced feed from gear type pump; strainer in sump; Mann & Hummel type W39 micron filter in full flow; oil capacity 7 l",
"printedUnit": "l",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Motoroljebyte | 100–120 hours hours | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Lubrication system — oil change period",
"printedCellValue": "oil change period 100–120 hours",
"printedUnit": "hours",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Motoroljegrader efter klimat | Winter HD SAE 10; summer HD SAE 20; tropics HD SAE 30 as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Lubrication system — recommended oil",
"printedCellValue": "winter HD SAE 10; summer HD SAE 20; tropics HD SAE 30",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Kylsystem | Pressurized water cooling, impeller assisted; 4-blade 400 mm fan; thermostat; 10 l capacity mm; l | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Cooling system",
"printedCellValue": "Pressurized water cooling; impeller assisted and 4 blade fan 400 mm dia.; thermostat; cooling water capacity 10 l",
"printedUnit": "mm; l",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Separat motortest | Separate optional engine test: 45.4 metric hp at 2480 rev/min (2-hour maximum); 9.50 l/h; 174 g/hph; 43.9 hp at 2250 rev/min for 540 PTO speed metric hp; rev/min; l/h; g/hph | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 25,
"printedPage": 23,
"row": "Engine tests — maximum and standard-PTO-speed rows",
"printedCellValue": "optional test 9.7.1969, Schenck U1-20; maximum 45.4 hp at 2480, 9.50 l/h, 174 g/hph; standard PTO speed 540 row 43.9 hp at 2250, 9.27 l/h, 175 g/hph",
"printedUnit": "metric hp; rev/min; l/h; g/hph",
"testCondition": "Separate optional engine test; not merged with compulsory PTO output or asserted as nominal engine rating.",
"renderSha256": "C9EAD90851191E4B702CB765FA0C9F8CD35A94B86F8ED77E37A4799979F55CE0",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Moment och bränsle i motortest | Optional engine test: 13.1 kpm at maximum power; 14.7 kpm at 1795 rev/min; optimum 166 g/hph at 27.2 hp/1600 rev/min kpm; rev/min; g/hph; metric hp | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 25,
"printedPage": 23,
"row": "Engine tests — torque and optimum fuel summary",
"printedCellValue": "13.1 kpm at maximum power; maximum 14.7 kpm at 1795 rev/min; optimum 166 g/hph at 27.2 hp and 1600 rev/min",
"printedUnit": "kpm; rev/min; g/hph; metric hp",
"testCondition": "Optional test summary; separate from the PTO test.",
"renderSha256": "C9EAD90851191E4B702CB765FA0C9F8CD35A94B86F8ED77E37A4799979F55CE0",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
Fendt Farmer 2 S as named in DLG/OECD Report No. 300; statements are bounded to the report’s named/tested configuration and stated test conditions.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Koppling, post 1: vätskekoppling | Voith 792 Heidenheim fluid clutch (report item 1) as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Clutch / item 1",
"printedCellValue": "1) Make: Voith, 792 Heidenheim fluid clutch",
"printedUnit": "as printed",
"testCondition": "The report lists numbered clutch items 1 and 2; no alternative-fitment claim is made.",
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Koppling, post 2: torrkoppling | Fichtel & Sachs G 250 K dry single-plate clutch, foot operated (report item 2) as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Clutch / item 2",
"printedCellValue": "2) Make: Fichtel & Sachs AG, 872 Schweinfurt; dry type single plate clutch, type G 250 K, operated by foot pedal",
"printedUnit": "as printed",
"testCondition": "The report lists numbered clutch items 1 and 2; no alternative-fitment claim is made.",
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Växellåda | Fully synchronized constant-mesh sliding gear as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Transmission — Gearbox",
"printedCellValue": "fully synchronized constant mesh sliding gear",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Växelantal och tillval | 13 forward + 4 reverse; optional slow-speed box adds 3 forward + 1 reverse; optional reversing gear gives 13 reverse speeds gears | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Transmission — available gears",
"printedCellValue": "13 forward speeds and 4 reverse; optional additional transmission adds 3 forward and 1 reverse; reversing gear available giving 13 reverse speeds",
"printedUnit": "gears",
"testCondition": "Extra slow-speed and reversing gear are listed as options, not asserted fitted to specimen.",
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Krypgruppens hastigheter | Optional forward 1–3: 0.34, 0.56, 0.98 km/h; reverse 1.R: 0.55 km/h km/h | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 6,
"printedPage": 6,
"row": "Total ratios and speeds — optional creeping group",
"printedCellValue": "Forward 1=0.34, 2=0.56, 3=0.98; reverse 1.R=0.55",
"printedUnit": "km/h",
"testCondition": "At 2480 engine rev/min; 2% fluid-clutch slip included; drive-wheel slip excluded.",
"renderSha256": "EB6230A3C39B7B3CEDD005267673155B2E84AB4569DB44BB26D72B2ECD47A788",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Lågväxelgruppens hastigheter | Slow group gears 1–6: 1.30, 2.16, 3.78, 5.39, 8.90, 15.63 km/h km/h | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 6,
"printedPage": 6,
"row": "Total ratios and speeds — normal forward, slow group",
"printedCellValue": "1=1.30; 2=2.16; 3=3.78; 4=5.39; 5=8.90; 6=15.63",
"printedUnit": "km/h",
"testCondition": "At 2480 engine rev/min; 2% fluid-clutch slip included; drive-wheel slip excluded.",
"renderSha256": "EB6230A3C39B7B3CEDD005267673155B2E84AB4569DB44BB26D72B2ECD47A788",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Högväxelgruppens hastigheter | Fast group gears 1–6: 1.66, 2.77, 4.84, 6.90, 11.42, 20.04 km/h; fast road speed 29.25 km/h km/h | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 6,
"printedPage": 6,
"row": "Total ratios and speeds — normal forward, fast group and road speed",
"printedCellValue": "1=1.66; 2=2.77; 3=4.84; 4=6.90; 5=11.42; 6=20.04; fast road speed=29.25",
"printedUnit": "km/h",
"testCondition": "At 2480 engine rev/min; 2% fluid-clutch slip included; drive-wheel slip excluded.",
"renderSha256": "EB6230A3C39B7B3CEDD005267673155B2E84AB4569DB44BB26D72B2ECD47A788",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Backhastigheter | Slow reverse 1.R/2.R: 2.11/8.73 km/h; fast reverse 1.R/2.R: 2.70/11.20 km/h km/h | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 6,
"printedPage": 6,
"row": "Total ratios and speeds — normal reverse",
"printedCellValue": "slow 1.R=2.11, 2.R=8.73; fast 1.R=2.70, 2.R=11.20",
"printedUnit": "km/h",
"testCondition": "At 2480 engine rev/min; 2% fluid-clutch slip included; drive-wheel slip excluded.",
"renderSha256": "EB6230A3C39B7B3CEDD005267673155B2E84AB4569DB44BB26D72B2ECD47A788",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Bakaxel och differential | Bevel-gear differential; foot-operated self-disengaging differential lock; spur-gear portal final drive as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Rear axle and final drive",
"printedCellValue": "bevel-gear differential with crown wheel and pinion; foot-pedal self-disengaging lock; spur final drive in portal axle housing",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Transmissionsoljemängder | Fluid clutch 3.8 l; distributor gear 2 l; selecting gear/rear-axle drive 24 l; final drives 5 l l | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Oil capacity",
"printedCellValue": "fluid clutch 3.8 l; distributor gear 2 l; selecting gear and rear axle drive 24 l; final drives 5 l",
"printedUnit": "l",
"testCondition": "Report oil-capacity row for the fluid-clutch item; no alternative-fitment claim is made.",
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
Fendt Farmer 2 S as named in DLG/OECD Report No. 300; statements are bounded to the report’s named/tested configuration and stated test conditions.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Ventiler och cylinderfoder | Overhead valves; wet replaceable cylinder liners as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Cylinders — construction",
"printedCellValue": "overhead valves; wet replaceable cylinder liners",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Insprutningspump | Bosch PES 3A 75 C 320/3 RS 1165 as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Fuel system — injection pump",
"printedCellValue": "Bosch type PES 3A 75 C 320/3 RS 1165 injection pump",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Kraftlyftens styrning | Power control, position control, infinitely variable mix and float; mechanically lockable for transport as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Power lift",
"printedCellValue": "power control, position control, infinitely variable mix, floating position; mechanically locked in transport position",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Hydraulpump | Bosch HY/ZFR 1/14 C L104 gear-type oil pump, directly engine-driven as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Power lift — pump",
"printedCellValue": "Bosch HY/ZFR 1/14 C L104 gear-type oil pump, directly driven by engine",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Hydraulventiler | Bosch HY/SR 10 control valve plus additional remote-control valve as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Power lift — valves",
"printedCellValue": "Bosch HY/SR 10 control valve plus additional valve for remote control",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Kraftlyftens tryck och oljekapacitet | Maximum oil pressure 175 kp/cm²; oil capacity 7.5 l; 9 l when front-end loader fitted kp/cm²; l | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Power lift / hydraulic specification",
"printedCellValue": "Maximum oil pressure 175 kp/cm²; oil capacity 7.5 l; when front end loader fitted 9 l; 1 external tapping",
"printedUnit": "kp/cm²; l",
"testCondition": "Specification-page statement, distinct from measured pump-test pressures.",
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Externanslutning vid frontlastare | 1 external tapping tapping | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Power lift / hydraulic specification",
"printedCellValue": "when front end loader fitted 9 l; 1 external tapping",
"printedUnit": "tapping",
"testCondition": "Configuration note only; no front loader is asserted fitted to test tractor.",
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Trepunktens kategori och lyfthöjd | Category II (DIN 9674); lift height 0–1000 mm; mechanical lock at 465 mm mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Pull attachment — implement linkage",
"printedCellValue": "category II (DIN 9674); lift height 0–1000 mm above ground; may be fixed at 465 mm with mechanical lock",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Dragstångens hålbild och höjd | Eight holes per side, spacing 4×80 + 1×240 + 3×80 mm; adjustable 0–1000 mm, lock 465 mm; centre hole 670 mm from PTO-shaft end mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Pull attachment — drawbar",
"printedCellValue": "8 holes each side; 4 x 80 + 1 x 240 + 3 x 80 mm; adjustable 0–1000 mm; locked 465 mm; centre hole to PTO-shaft end 670 mm",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Villkor för hydraulikprov | Power-lift/pump test dated 18.10.1969 at Gross-Umstadt; hydraulic fluid engine oil HD SAE 10 date; fluid | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 24,
"printedPage": 22,
"row": "Power lift and hydraulic pump test — setup",
"printedCellValue": "18.10.1969, Gross-Umstadt; hydraulic fluid: engine oil HD SAE 10",
"printedUnit": "date; fluid",
"testCondition": "Test-specific fluid.",
"renderSha256": "6F3F3C7F6B6DCDAFC1225F33CAE6932BC7276960E6BA4CFD05C34FB7AF3C589F",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Lyftkraft mätt vid hitch points | At lower-link hitch points: at −142 mm height, 782 mm travel/1435 kp force; at 270 mm, 637 mm/1710 kp; pressure 178 kp/cm² mm; kp; kp/cm² | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 24,
"printedPage": 22,
"row": "Power lift table — measured on hitch points of lower links",
"printedCellValue": "−142: 782 mm travel, 1435 kp; 270: 637 mm travel, 1710 kp; pressure 178 kp/cm²",
"printedUnit": "mm; kp; kp/cm²",
"testCondition": "Hitch-point results; distinct from test frame 610 mm behind hitch points.",
"renderSha256": "6F3F3C7F6B6DCDAFC1225F33CAE6932BC7276960E6BA4CFD05C34FB7AF3C589F",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Lyftkraft mätt på testställning | On test frame 610 mm behind hitch points: −142 mm hitch height gives 789 mm travel/1350 kp; 270 mm gives 745 mm/1260 kp; both 178 kp/cm²; lift load 1110 kp mm; kp; kp/cm² | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 24,
"printedPage": 22,
"row": "Power lift table — test frame 610 mm behind hitch points",
"printedCellValue": "−142 mm hitch, −134 mm frame: 789 mm/1350 kp; 270 mm hitch, 637 mm frame: 745 mm/1260 kp; 178 kp/cm²; 1110 kp load",
"printedUnit": "mm; kp; kp/cm²",
"testCondition": "Separate test-frame geometry; linkage-load condition is unballasted front end lifted off ground.",
"renderSha256": "6F3F3C7F6B6DCDAFC1225F33CAE6932BC7276960E6BA4CFD05C34FB7AF3C589F",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Hydraulpumpens mätresultat | Relief opening/sustained pressure 180/178 kp/cm²; external-tapping flow 36.6 l/min at minimum pressure and 34.5 l/min at maximum hydraulic power; 11.5 metric hp at delivery pressure 150 kp/cm² kp/cm²; l/min; metric hp | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 24,
"printedPage": 22,
"row": "Pump characteristics",
"printedCellValue": "relief opening 180 kp/cm²; sustained 178; 36.6 l/min minimum pressure; 34.5 l/min at maximum hydraulic power; 11.5 metric hp; 150 kp/cm²",
"printedUnit": "kp/cm²; l/min; metric hp",
"testCondition": "Measured external-tapping pump test; not a combined system-flow claim.",
"renderSha256": "6F3F3C7F6B6DCDAFC1225F33CAE6932BC7276960E6BA4CFD05C34FB7AF3C589F",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
Fendt Farmer 2 S as named in DLG/OECD Report No. 300; statements are bounded to the report’s named/tested configuration and stated test conditions.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Huvudkraftuttagets utförande | Live PTO, hand-wheel operated below steering wheel; two pre-selectable PTO speeds as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — main PTO",
"printedCellValue": "live power take-off, operated by hand wheel below steering wheel; two PTO speeds engageable pre-selectable",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "2F707FD0DC9D683A7D0BB925152D20DFB228AA19E78D2DE8C7D4B2B990EF27A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Huvudkraftuttagets axel | Rear, median plane, 620 mm above ground; spline 29 × 34.9 × 8.7 mm, 6 splines mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — main PTO location/dimensions",
"printedCellValue": "rear of tractor, median plane, 620 mm above ground; spline shaft 29 x 34.9 x 8.7 mm; 6 splines",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "2F707FD0DC9D683A7D0BB925152D20DFB228AA19E78D2DE8C7D4B2B990EF27A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Huvudkraftuttagets hastigheter | 589 or 1043 rev/min at engine 2480; standard PTO 540 at engine 2290; standard PTO 1000 at engine 2380 rev/min | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — main PTO speed",
"printedCellValue": "589 or 1043 at 2480 engine rev/min; standard PTO 540 at 2290; standard PTO 1000 at 2380",
"printedUnit": "rev/min",
"testCondition": "PTO speeds include fluid-clutch slip measured during PTO tests.",
"renderSha256": "2F707FD0DC9D683A7D0BB925152D20DFB228AA19E78D2DE8C7D4B2B990EF27A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Huvudkraftuttagets rotationsriktning | Clockwise when viewed from tractor rear as stated | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — direction of rotation",
"printedCellValue": "Clockwise, viewed from tractor rear",
"printedUnit": "as stated",
"testCondition": null,
"renderSha256": "2F707FD0DC9D683A7D0BB925152D20DFB228AA19E78D2DE8C7D4B2B990EF27A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Markhastighetskraftuttag | Ground-speed PTO ratio 24.28; travel distance 0.17 m per PTO revolution ratio; m/rev | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — ground-speed PTO",
"printedCellValue": "transmission ratio PTO shaft to drive wheels = 24.28; travel distance per PTO revolution = 0.17 m",
"printedUnit": "ratio; m/rev",
"testCondition": "Switched from main PTO by hand lever.",
"renderSha256": "2F707FD0DC9D683A7D0BB925152D20DFB228AA19E78D2DE8C7D4B2B990EF27A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Kraftuttag för slåtterbalk | Mower-bar drive PTO independent from main clutch; location 1120 mm before rear axle, 60 mm right of median plane, 540 mm above ground; spline B6 × 26 × 30 mm mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — mower-bar drive",
"printedCellValue": "independent from main clutch; 1120 mm before rear axle centre; 60 mm right of median plane; 540 mm above ground; spline B6 x 26 x 30 mm",
"printedUnit": "mm",
"testCondition": "Counter-clockwise with normal transmission; reversing gear may make it clockwise.",
"renderSha256": "2F707FD0DC9D683A7D0BB925152D20DFB228AA19E78D2DE8C7D4B2B990EF27A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Remskiva, ej monterad på provtraktor | Belt pulley not fitted to test tractor; manufacturer specification: 225 mm diameter × 150 mm width; 1471 rev/min at engine 2480; belt speed 17.32 m/s mm; rev/min; m/s | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Belt pulley",
"printedCellValue": "not fitted on tractor tested; 225 mm diameter, 150 mm width; 1471 rev/min at 2480 engine rev/min; linear belt speed 17.32 m/s",
"printedUnit": "mm; rev/min; m/s",
"testCondition": "Manufacturer specification only; not fitted on tested tractor.",
"renderSha256": "2F707FD0DC9D683A7D0BB925152D20DFB228AA19E78D2DE8C7D4B2B990EF27A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Villkor för PTO-prov | Compulsory main PTO test 22.8.1969 at Gross-Umstadt; Schenck hydraulic dynamometer U1-40 date/location/equipment | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 11,
"printedPage": 11,
"row": "Main PTO performance — setup",
"printedCellValue": "22.8.1969, Gross-Umstadt; Schenck hydraulic dynamometer U1-40",
"printedUnit": "date/location/equipment",
"testCondition": null,
"renderSha256": "F7DBCDA2D085E1AE199FB0E67985E3D6E6488DC3A215D2584F0E08F61FBF30A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| PTO-effekt, tvåtimmars maxprov | 40.2 metric hp at engine 2480/PTO 588 rev/min; 9.65 l/h; 198 g/hph metric hp; rev/min; l/h; g/hph | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 11,
"printedPage": 11,
"row": "Maximum power — 2-hour test",
"printedCellValue": "40.2; 2480 engine; 588 PTO; 9.65 l/h; 198 g/hph",
"printedUnit": "metric hp; rev/min; l/h; g/hph",
"testCondition": "Measured PTO-test result for report specimen, not nominal engine power.",
"renderSha256": "F7DBCDA2D085E1AE199FB0E67985E3D6E6488DC3A215D2584F0E08F61FBF30A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| PTO-effekt vid 540 rpm | 39.0 metric hp at engine 2290/PTO 540 rev/min; 9.23 l/h; 196 g/hph metric hp; rev/min; l/h; g/hph | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 11,
"printedPage": 11,
"row": "At standard PTO speed (540 rev/min)",
"printedCellValue": "39.0; 2290 engine; 540 PTO; 9.23 l/h; 196 g/hph",
"printedUnit": "metric hp; rev/min; l/h; g/hph",
"testCondition": null,
"renderSha256": "F7DBCDA2D085E1AE199FB0E67985E3D6E6488DC3A215D2584F0E08F61FBF30A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| PTO-provets delbelastningspunkter | 85% torque point 34.2 hp/8.35 l/h/202 g/hph; 50% point 17.4/5.35/253; 25% point 8.8/4.02/379; 75% point 25.8/6.79/218 metric hp; l/h; g/hph | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 11,
"printedPage": 11,
"row": "Fuel consumption at part loads — rows (i), (iii), (v), (vi)",
"printedCellValue": "85% torque: 34.2 hp, 2535 engine/601 PTO, 8.35 l/h, 202 g/hph; 50%: 17.4, 2560/614, 5.35, 253; 25%: 8.8, 2570/620, 4.02, 379; 75%: 25.8, 2540/608, 6.79, 218",
"printedUnit": "metric hp; l/h; g/hph",
"testCondition": "Each percentage uses the report’s defined PTO-test load point; rows kept together as one same-table fact.",
"renderSha256": "F7DBCDA2D085E1AE199FB0E67985E3D6E6488DC3A215D2584F0E08F61FBF30A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Momentvärden i PTO-provet | 11.8 kpm at maximum power; maximum 13.4 kpm at engine 1740 rev/min kpm; rev/min | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 11,
"printedPage": 11,
"row": "Main PTO performance — torque summary",
"printedCellValue": "11.8 kpm at maximum power; 13.4 kpm maximum at 1740 rev/min",
"printedUnit": "kpm; rev/min",
"testCondition": "Footnote: equivalent torque on the fluid-clutch output shaft; not an unqualified engine-torque curve.",
"renderSha256": "F7DBCDA2D085E1AE199FB0E67985E3D6E6488DC3A215D2584F0E08F61FBF30A2",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
Fendt Farmer 2 S as named in DLG/OECD Report No. 300; statements are bounded to the report’s named/tested configuration and stated test conditions.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Dragkrokar | Rear trailer hitch height 480–880 mm, 473 mm from rear axle; front towing hitch height 640 mm mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Pull attachment — trailer/towing hitch",
"printedCellValue": "rear hitch 480–880 mm above ground, 473 mm from rear axle; front towing hitch 640 mm above ground",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Framhjulens däck och spårvidd | Front: 7.50 L-15 AS Front, 6 ply (DIN 7808); rim 5½J×15; track 1278/1528 mm mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheels — steering wheels",
"printedCellValue": "7.50 L-15 AS Front, 6 ply; rim 5 1/2 J x 15; track 1278 or 1528 mm by extending front axle",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Framdäckens belastning | Front tyre permissible load 670 kp at 2.5 kp/cm²; 850 kp when transporting mounted implements kp; kp/cm² | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheels — front maximum permissible weight",
"printedCellValue": "670 kp per tyre at 2.5 kp/cm²; 850 kp when transporting mounted implements",
"printedUnit": "kp; kp/cm²",
"testCondition": "Report-era units preserved, not converted.",
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Bakhjulens däck och spårvidd | Rear: 14.9/13-30 AS, 6 ply (DIN 7807); rim DW12×30; track 1360/1500 mm mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheels — driving wheels",
"printedCellValue": "14.9/13-30 AS, 6 ply; rim DW12 x 30; track 1360 or 1500 mm by reversing wheels",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Bakhjulens belastning | Rear tyre permissible load 1595 kp at 1.3 kp/cm²; 1823 kp when transporting mounted implements kp; kp/cm² | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheels — rear maximum permissible weight",
"printedCellValue": "1595 kp per tyre at 1.3 kp/cm²; 1823 kp when transporting mounted implements",
"printedUnit": "kp; kp/cm²",
"testCondition": "Report-era units preserved, not converted.",
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Axelavstånd | 2078 mm mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheel base",
"printedCellValue": "2078 mm",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Vikt utan ballast, provkonfiguration | Without ballast, as tested: without driver front/rear/total 850/1520/2370 kp; with driver 850/1595/2445 kp kp | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Weights — tractor without ballast",
"printedCellValue": "with lift, linkage, safety frame, full fuel/cooling water/oil; without driver 850/1520/2370 kp; with driver 850/1595/2445 kp",
"printedUnit": "kp",
"testCondition": "Specific tested configuration only; kp preserved.",
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Främre ballast | 8 front weights × 36 kp = 288 kp kp | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Weights — front ballast",
"printedCellValue": "8 front weights each 36 kp = 288 kp",
"printedUnit": "kp",
"testCondition": "Tested ballast configuration only.",
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Bakre ballast | 3 rear wheel weights × 60 kp = 360 kp; water in tyres 341 kp kp | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Weights — rear ballast",
"printedCellValue": "3 wheel weights 60 kp each = 360 kp; water in tyres = 341 kp",
"printedUnit": "kp",
"testCondition": "Tested ballast configuration only.",
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Vikt med ballast, provkonfiguration | With ballast: without driver front/rear/total 1219/2150/3369 kp; with driver 1223/2217/3440 kp kp | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Weights — tractor with ballast",
"printedCellValue": "without driver 1219/2150/3369 kp; with driver 1223/2217/3440 kp",
"printedUnit": "kp",
"testCondition": "Specific tested ballast configuration only; kp preserved.",
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Yttermått: längd och bredd | Length 3626 mm with 3-point linkage; width 1878 mm at 1500 mm track without ballast mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Overall dimensions — length/width",
"printedCellValue": "length 3626 mm with linkage; width 1878 mm at 1500 mm track without ballast",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Yttermått: höjd och markfrigång | Height 1655 mm to attendant-seat backrest; 2300 mm with safety frame; clearance 410 mm on median plane/380 mm away from it mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Overall dimensions — height/ground clearance",
"printedCellValue": "1655 mm to seat backrest; 2300 mm with safety frame; ground clearance 410 mm in median plane and 380 mm apart",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
Fendt Farmer 2 S as named in DLG/OECD Report No. 300; statements are bounded to the report’s named/tested configuration and stated test conditions.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Serviceintervall, vätskekoppling | Fluid-clutch oil change approx. 5000 hours hours | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Oil capacity — oil change period",
"printedCellValue": "Fluid clutch appr. 5000 hours",
"printedUnit": "hours",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Serviceintervall, övrig transmission | Other transmission: first change after 200 hours; then every 1000 hours or annually hours; time | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Oil capacity — oil change period",
"printedCellValue": "all other transmissions first change after 200 hours; further change 1000 hours or every year",
"printedUnit": "hours; time",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
Fendt Farmer 2 S as named in DLG/OECD Report No. 300; statements are bounded to the report’s named/tested configuration and stated test conditions.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Modellnamn på rapportens omslag | FENDT FARMER 2 S as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 1,
"printedPage": null,
"row": "Cover title",
"printedCellValue": "FENDT FARMER 2 S",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "D5460C0628DC901841C9F8A3C45F2EF7A6F93B286D881DE08663140EF1E08375",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| DLG/OECD-rapportnummer | 300 report number | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 1,
"printedPage": null,
"row": "Cover right header",
"printedCellValue": "O.E.C.D. Report No. 300",
"printedUnit": "report number",
"testCondition": null,
"renderSha256": "D5460C0628DC901841C9F8A3C45F2EF7A6F93B286D881DE08663140EF1E08375",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| DLG-testnummer | 69-17 test number | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Report header",
"printedCellValue": "Test No. 69-17",
"printedUnit": "test number",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Testperiod | July–October 1969 as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 1,
"printedPage": null,
"row": "Date of tests",
"printedCellValue": "July - October 1969",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "D5460C0628DC901841C9F8A3C45F2EF7A6F93B286D881DE08663140EF1E08375",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Godkännandedatum | 21 January 1970 date | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 1,
"printedPage": null,
"row": "Date of Approval",
"printedCellValue": "21.1.1970",
"printedUnit": "date",
"testCondition": null,
"renderSha256": "D5460C0628DC901841C9F8A3C45F2EF7A6F93B286D881DE08663140EF1E08375",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Provtraktorns serienummer | 138/11/0846 as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Tractor — Serial No.",
"printedCellValue": "138/11/0846",
"printedUnit": "as printed",
"testCondition": "Report specimen only; not a model range or PIN boundary.",
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Traktortyp | Diesel tractor, unit construction as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Tractor — Type",
"printedCellValue": "Diesel tractor, unit construction",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Tillverkare | Xaver Fendt & Co., Maschinen- und Schlepperfabrik, 8952 Marktoberdorf/Allgäu as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Tractor manufacturer",
"printedCellValue": "XAVER FENDT & CO., Maschinen- und Schlepperfabrik, 8952 Marktoberdorf/Allgäu",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Inkörningstid | Engine approx. 40 hours; tractor approx. 20 hours as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Duration of running-in",
"printedCellValue": "Engine appr. 40 hours, tractor appr. 20 hours",
"printedUnit": "as printed",
"testCondition": "Manufacturer-selected DLG test unit only.",
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Bränsletank | approx. 65 l l | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Fuel system — fuel-tank capacity",
"printedCellValue": "capacity of fuel tank: appr. 65 l",
"printedUnit": "l",
"testCondition": null,
"renderSha256": "24475A7DE86F143D32EEB0D522BBF8710E22DF54B768CDC702A45EB11C33D22E",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Elsystem | 12 Volt, negative earth V | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Electrical equipment",
"printedCellValue": "Voltage 12 Volt, negative earth",
"printedUnit": "V",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Batteri | Bosch lead-acid, 12 V, 66 Ah V; Ah | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 5,
"printedPage": 5,
"row": "Battery",
"printedCellValue": "Bosch lead acid type battery 12 V 66 Ah",
"printedUnit": "V; Ah",
"testCondition": null,
"renderSha256": "D2DA5FD24E821676EC7DF394AC4F684B8C758B029E8E157957E80E7C0979DB25",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Styrningsalternativ | Report lists ZF worm steering or ZF Hydro-Column steering as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Steering device",
"printedCellValue": "Zahnradfabrik Friedrichshafen AG.; ZF-Worm steering or ZF-Hydro-Column steering",
"printedUnit": "as printed",
"testCondition": "Alternatives; report does not single out the specimen’s exact variant.",
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Bromsarnas konstruktion | External band parking brake at differential shafts; internal rear-wheel drum foot brake; split pedal also for steering brake as printed | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Brakes",
"printedCellValue": "external band type parking brake on differential-shaft drums; internal shoe-type foot brake on rear wheels; split pedal for steering brake; safety bolt couples parts for normal use",
"printedUnit": "as printed",
"testCondition": null,
"renderSha256": "15DC36BDCFBC6BD77F74DD4842936D76333F406B8D01D1DEFA9BE02E452A0587",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Förarstol | Parallelogram seat, hydraulically damped; weight-adjustable; 20 mm vertical, 80 mm horizontal; 16 mm left of median plane mm | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Seat",
"printedCellValue": "upholstered parallel-linkage seat, hydraulically damped; adjustable by operator weight; 20 mm vertical, 80 mm horizontal; 16 mm left of median plane",
"printedUnit": "mm",
"testCondition": null,
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Smörjnipplar | 12 grease points on whole tractor points | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Number of grease points",
"printedCellValue": "12 on whole tractor",
"printedUnit": "points",
"testCondition": null,
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Belysning | Electric 12 Volt according to StVZO V | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Lighting equipment",
"printedCellValue": "Electric 12 Volt, according to StVZO (German regulation)",
"printedUnit": "V",
"testCondition": null,
"renderSha256": "25E281D89E1BC0602F3CF06E6604DFFCD93B1332C38D40FB1EB4F9574A62E594",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Fotbromsprov | Foot brake on concrete at 29.25 km/h: 5.0 m/s² deceleration both ballast states; stopping 9.6 m unballasted/9.2 m ballasted; pedal force 44/59 kp m/s²; m; kp | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 22,
"printedPage": 20,
"row": "Brake test — foot brake, old brakes",
"printedCellValue": "1.10.1969; concrete; 29.25 km/h; 5.0 m/s²; 9.6/9.2 m; 44/59 kp",
"printedUnit": "m/s²; m; kp",
"testCondition": "Measured DLG brake test only.",
"renderSha256": "1A296C604A789969C1167B8B076896A5F5D0B3315B923D61E37B6A856A932BCA",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Bromsarnas fadeprov | Unballasted hot test: hot/cold deceleration 102%; cold/hot stopping distance 107%; cold/hot pedal force 105% % | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 22,
"printedPage": 20,
"row": "Brake fade characteristics, hot test, tractor without ballast",
"printedCellValue": "deceleration hot/cold 102%; stopping distance cold/hot 107%; force on pedal cold/hot 105%",
"printedUnit": "%",
"testCondition": null,
"renderSha256": "1A296C604A789969C1167B8B076896A5F5D0B3315B923D61E37B6A856A932BCA",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Parkeringsbromsprov | Parking-brake lever force 63 kp cold and hot; no rear-wheel rotation during towing after application, including after one hour kp; result | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 22,
"printedPage": 20,
"row": "Parking brake test",
"printedCellValue": "cold brake 63 kp; hot brake 63 kp; no rear-wheel rotation when towed, including one hour after application",
"printedUnit": "kp; result",
"testCondition": "DLG test observation, not a guarantee for all wear states.",
"renderSha256": "1A296C604A789969C1167B8B076896A5F5D0B3315B923D61E37B6A856A932BCA",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Omgivningsljud | Ambient emitted sound 85 dBA in top gear at 21.9 km/h before acceleration dBA; km/h | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 23,
"printedPage": 21,
"row": "Measurement of ambient noise emitted by the tractor — results",
"printedCellValue": "12.9.1969; concrete; top gear; 21.9 km/h before acceleration; 85 dBA",
"printedUnit": "dBA; km/h",
"testCondition": "Test-specific condition.",
"renderSha256": "84BC398AB02D1D44268AC796933B6DECA5E05CD708A407884D081B8ED186A659",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
| Ljud vid förarens öra | Driver-ear test, without top/claddings: 4.S/3.S/2.S gives 74/71/69 Sone; with top/claddings: 102/107/113 Sone Sone | Källa
Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-2-s-dlg-oecd-report-300",
"pageTitle": "Fendt Farmer 2 S — DLG/OECD Report No. 300, DLG Test No. 69-17",
"modelColumn": "Fendt Farmer 2 S; test-unit/configuration scope applies where stated.",
"physicalPdfPage": 23,
"printedPage": 21,
"row": "Noise measurement at the driver’s ear — results table",
"printedCellValue": "without top/claddings: 4.S 74, 3.S 71, 2.S 69 Sone; with top/claddings: 4.S 102, 3.S 107, 2.S 113 Sone",
"printedUnit": "Sone",
"testCondition": "Report writes Sone, not dBA, for this table; top/cladding configurations stated in the report.",
"renderSha256": "84BC398AB02D1D44268AC796933B6DECA5E05CD708A407884D081B8ED186A659",
"sourcePdfSha256": "38f1c6596433503c91828c91b53f3b73fa46018311fb34308dec110802176f10"
} |
Jämför publicerade faktarader och deras källvillkor mellan modellprofiler.
Välj en modell för att se de faktarader som har källgranskats.
Öppna källposten för publikation, variant, period och metod.
Photographer caption identifies Farmer 2 S, own-work statement and file-specific CC BY-SA 3.0 verified through primary Commons API. Side badge unreadable. Model reference only; no filename year/power claim and not DLG test specimen.
Cover: report No. 300, model title, tests July–October 1969, approval 21.1.1970. Physical p.4 gives DLG Test No. 69-17 and test specimen serial 138/11/0846. Physical p.2 says engineering tests do not evaluate practical farm work. Physical p.19 errata conflicts with physical p.20/printed p.19 turning-radius table; values held. PTO and optional engine test remain separate. Physical p.14 running Test No.96-17 differs from the other 69-17 headers; all three proposed p.14 facts are withheld. Five pre-integration cell/wording corrections and neutral numbered clutch descriptions are recorded in the root evidence.
Styrker: Modellnamn på rapportens omslag · DLG/OECD-rapportnummer · DLG-testnummer · Testperiod · Godkännandedatum · Provtraktorns serienummer · Traktortyp · Tillverkare · Inkörningstid · Motortillverkare · Motormodell · Provexemplarets motornummer · Motortyp · Cylindrar, borrning och slag · Slagvolym och kompressionsförhållande · Ventiler och cylinderfoder · Insprutningspump · Insprutningsmunstycke · Insprutningstryck · Insprutningstidpunkt · Bränsletank · Regulator och varvtalsområde · Märkvarvtal efter arbetssätt · Luftrenare · Motorsmörjning · Motoroljebyte · Motoroljegrader efter klimat · Kylsystem · Elsystem · Batteri · Koppling, post 1: vätskekoppling · Koppling, post 2: torrkoppling · Växellåda · Växelantal och tillval · Krypgruppens hastigheter · Lågväxelgruppens hastigheter · Högväxelgruppens hastigheter · Backhastigheter · Bakaxel och differential · Transmissionsoljemängder · Serviceintervall, vätskekoppling · Serviceintervall, övrig transmission · Huvudkraftuttagets utförande · Huvudkraftuttagets axel · Huvudkraftuttagets hastigheter · Huvudkraftuttagets rotationsriktning · Markhastighetskraftuttag · Kraftuttag för slåtterbalk · Remskiva, ej monterad på provtraktor · Kraftlyftens styrning · Hydraulpump · Hydraulventiler · Kraftlyftens tryck och oljekapacitet · Externanslutning vid frontlastare · Trepunktens kategori och lyfthöjd · Dragstångens hålbild och höjd · Dragkrokar · Styrningsalternativ · Bromsarnas konstruktion · Framhjulens däck och spårvidd · Framdäckens belastning · Bakhjulens däck och spårvidd · Bakhjulens belastning · Axelavstånd · Vikt utan ballast, provkonfiguration · Främre ballast · Bakre ballast · Vikt med ballast, provkonfiguration · Förarstol · Smörjnipplar · Yttermått: längd och bredd · Yttermått: höjd och markfrigång · Belysning · Villkor för PTO-prov · PTO-effekt, tvåtimmars maxprov · PTO-effekt vid 540 rpm · PTO-provets delbelastningspunkter · Momentvärden i PTO-provet · Separat motortest · Moment och bränsle i motortest · Villkor för hydraulikprov · Lyftkraft mätt vid hitch points · Lyftkraft mätt på testställning · Hydraulpumpens mätresultat · Fotbromsprov · Bromsarnas fadeprov · Parkeringsbromsprov · Omgivningsljud · Ljud vid förarens öra
Avgränsat källunderlag · status gap · omfattning comparisonFacts.
En fullständig granskning av hela modellguiden är inte dokumenterad.
89 original-cell DLG/OECD facts bounded to the Farmer 2 S report specimen and stated test conditions. Three physical-page-14 facts are held because its running test number differs; turning radii remain held. Partial profile only, no full-guide attestation.
