Farmer 3 S har en fyrcylindrig, vattenkyld MWM D 208-4 på 2975 cm³. DLG-provets exemplar gav 44,1 metriska hk på kraftuttaget och 46,6 metriska hk i det separata motorprovet. Rapporten redovisar även trepunktens lyftkraft och två olika hydraulikutföranden.
Värdena gäller rapportens provexemplar och mätvillkor. Motor- och kraftuttagseffekt har olika mätpunkter. Produktionsperiod, modellår, PIN-gränser och svensk leveransspecifikation är inte fastställda.
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 · Fendt Farmer 3S · Alf van Beem · Wikimedia Commons · 2010
DLG/OECD Report No. 205 names Fendt Farmer 3 S (FW 238); physical p.4 identifies DLG Test No. 4033/SPF and test-specimen serial 238/1/0015.
Serial is one test specimen, not a production or PIN boundary. No model year, generation, sales market or Swedish availability is established.

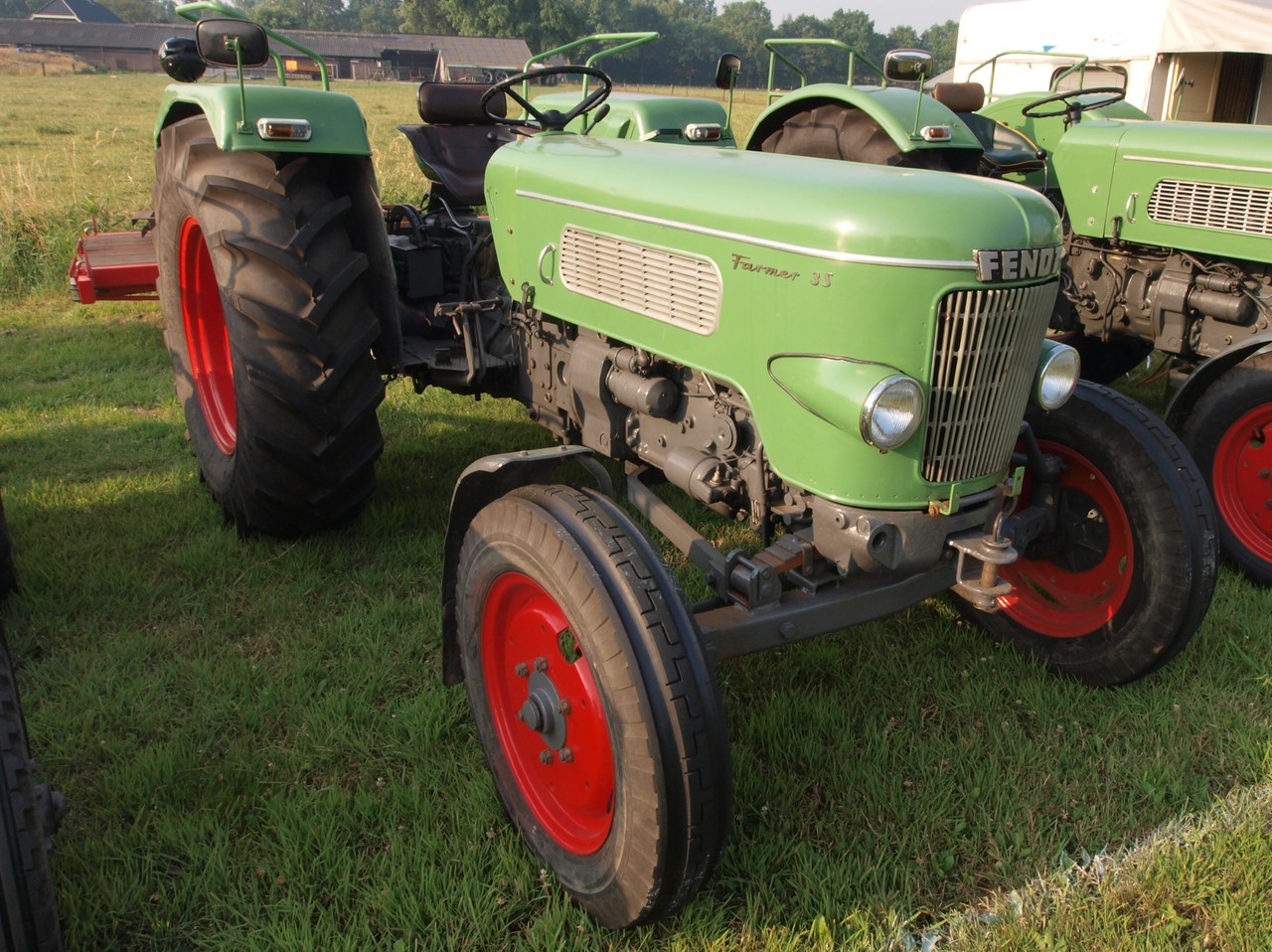

The B08 Commons original visibly shows the Farmer 3S side badge and is reused as a CC0 1.0 reference image.
The photo is not identified as DLG test specimen serial 238/1/0015; its 2010 capture date is not a tractor production date.
Fendt Farmer 3 S
Historical Fendt Farmer 3 S (FW 238), based on DLG/OECD Report No.
FaktaFlödesuppgifter per källrad och utförande
Historical Fendt Farmer 3 S (FW 238), based on DLG/OECD Report No.
FaktaÖvriga uppgifter · Motor och effekt · Mått och vikt · Transmission · Kraftuttag · Hydraulik och lyft
Historical Fendt Farmer 3 S (FW 238), based on DLG/OECD Report No. 205. Specimen-only measurements retain the stated serial/configuration/conditions. No generation, model-year, production-span, PIN or sales-market inference; distinct from later 300/3SA/Vario models.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Motortillverkare | Motorenwerke Mannheim A.G., Mannheim as stated | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Make",
"printedCellValue": "Motorenwerke Mannheim A.G., Mannheim",
"printedUnit": "no separate unit",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Motormodell | D 208 - 4 as stated | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Model",
"printedCellValue": "D 208 - 4",
"printedUnit": "no separate unit",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Motortyp | Water cooled 4-stroke Diesel-engine as stated | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Type",
"printedCellValue": "water cooled 4-stroke Diesel-engine",
"printedUnit": "no separate unit",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Antal och placering av cylindrar | 4 cylinders, vertical, in line as stated | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Cylinders",
"printedCellValue": "4 cylinders, vertical, in line",
"printedUnit": "no separate unit",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Slagvolym | 2975 cm³ | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Cylinders",
"printedCellValue": "capacity 2975 cm³",
"printedUnit": "cm³",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Kompressionsförhållande | 17:1 ratio | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Cylinders",
"printedCellValue": "compression ratio 17:1",
"printedUnit": "ratio",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Reglerat motorvarvtalsområde | 530–2240 r.p.m. Original report uses r.p.m. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Governor — governed range of speed",
"printedCellValue": "governed range of speed 530 – 2240 r.p.m.",
"printedUnit": "r.p.m.",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Märkvarvtal för redovisade arbetssätt | 1935 for standard PTO work; 2075 for field, transport and belt work r.p.m. Keep the standard-PTO engine speed separate from field/transport/belt engine speed. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Governor — rated speeds",
"printedCellValue": "p.t.o.-work at standard p.t.o. speed 1935 r.p.m.; field-work 2075 r.p.m.; transportation-work 2075 r.p.m.; belt-work 2075 r.p.m.",
"printedUnit": "r.p.m.",
"testCondition": "Separate engine-speed values stated for the listed work modes.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Separat valfritt motorprov: maximal effekt | 46,6 metric hp Keep separate from the compulsory PTO output facts. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 25,
"printedPage": 25,
"row": "Optional tests — Engine test — At maximum power, 2 hours test",
"printedCellValue": "46,6 at 2075 r.p.m.",
"printedUnit": "metric hp; engine r.p.m.",
"testCondition": "Optional engine test dated 21 July 1966 at Darmstadt-Kranichstein; Schenck hydraulic dynamometer; maximum-power 2-hour test.",
"renderSha256": "3F67546134A71CEDBA84A3D7049DCF4233ED6438C4CC4640ABE731D777E10368"
} |
| Separat valfritt motorprov: högsta motormoment | 18,70 at 1460 kpm at engine r.p.m. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 25,
"printedPage": 25,
"row": "Optional engine test — Maximum torque",
"printedCellValue": "Maximum torque 18,70 kpm at 1460 r.p.m. of the engine",
"printedUnit": "kpm; engine r.p.m.",
"testCondition": "Optional engine test dated 21 July 1966.",
"renderSha256": "3F67546134A71CEDBA84A3D7049DCF4233ED6438C4CC4640ABE731D777E10368"
} |
| Separat valfritt motorprov: lägsta specifika bränsleförbrukning | 174 at 25,3 metric hp and 1264 engine r.p.m. g/hph A test operating point, not general operating consumption. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 25,
"printedPage": 25,
"row": "Optional engine test — Optimum fuel consumption",
"printedCellValue": "174 g/hph at 25,3 hp and 1264 r.p.m.",
"printedUnit": "g/hph; metric hp; engine r.p.m.",
"testCondition": "Optional engine test dated 21 July 1966; stated optimum operating point.",
"renderSha256": "3F67546134A71CEDBA84A3D7049DCF4233ED6438C4CC4640ABE731D777E10368"
} |
Historical Fendt Farmer 3 S (FW 238), based on DLG/OECD Report No. 205. Specimen-only measurements retain the stated serial/configuration/conditions. No generation, model-year, production-span, PIN or sales-market inference; distinct from later 300/3SA/Vario models.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Teoretisk färdhastighet i snabbväxel | 27,82 km/h A theoretical table speed under stated engine-speed basis, not a general measured top speed. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 6,
"printedPage": 6,
"row": "Total ratios and speeds — fast gear",
"printedCellValue": "fast gear; ratio 18,67 : 1; 27,82 km/h; 7,730 m/s",
"printedUnit": "ratio; km/h; m/s",
"testCondition": "Theoretical travelling speed at rated engine speed 2075 r.p.m.",
"renderSha256": "4FAC507371C49933D6D284574CCE0A0FFF7A0131B2F1FA00CAE7839CD4A81C93"
} |
Historical Fendt Farmer 3 S (FW 238), based on DLG/OECD Report No. 205. Specimen-only measurements retain the stated serial/configuration/conditions. No generation, model-year, production-span, PIN or sales-market inference; distinct from later 300/3SA/Vario models.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Trepunktens hydrauliska reglagefunktioner | Power control and position control may be steplessly mixed; floating position; mechanical and hydraulic transport lock; single-acting ram as stated | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power lift — Hydraulic system",
"printedCellValue": "power control and position control, may be stepless mixed; floating position; mechanical and hydraulical lock of the linkage for transport; single acting ram",
"printedUnit": "no separate unit",
"testCondition": "Power lift specification.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| Trepunktens kategori | Category II category DIN 9674 as stated. · The source states category II; it does not support an additional category. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Pull attachment — Implement linkage",
"printedCellValue": "Three point linkage category II (acc. to DIN 9674)",
"printedUnit": "category",
"testCondition": "Implement linkage specification.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| Maximalt oljetryck i hydraulsystemets specifikation | 175 kp/cm² Keep separate from physical p.24 pump-test opening and sustained pressures. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power lift — Hydraulic system",
"printedCellValue": "maximum oil pressure 175 kp/cm²",
"printedUnit": "kp/cm²",
"testCondition": "Model specification, distinct from separately measured pump test pressures.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| Hydrauloljekapacitet enligt utrustningsvillkor | 7,5 l with power lift only; 9 l when also fitted with front-end loader l Do not merge the loader-equipped volume into the power-lift-only configuration. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power lift — Hydraulic system — oil capacity",
"printedCellValue": "oil capacity 7,5 l fitted with power lift only; oil capacity 9 l when also fitted front end loader",
"printedUnit": "l",
"testCondition": "Two separately stated equipment configurations.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| DLG-lyftkraft vid nedre länkarnas hitchpunkter | 1390 kp at 100 mm; 1550 kp at 285 mm kp Measured at hitch points; not the separate test-frame values. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 24,
"printedPage": 24,
"row": "Power lift — Measured at the hitch points of lower links",
"printedCellValue": "height 100 mm: total vertical movement 750 mm; maximum force 1390 kp; pressure 175 kp/cm². Height 285 mm: movement 690 mm; maximum force 1550 kp; pressure 175 kp/cm².",
"printedUnit": "mm; kp; kp/cm²",
"testCondition": "DLG test 14 February 1967; engine oil BP HD 20 SAE; test height is above ground in down position at hitch points.",
"renderSha256": "D71A96EBDDA675C391B334D4B6D47296A559B85FA8B69299766CD71DA5254022"
} |
| DLG-lyftkraft vid testbalk 610 mm bakom hitchpunkterna | 1495 kp at hitch-point height 100 mm / test-frame height 105 mm; 1510 kp at 285 mm / 305 mm kp Keep separate from the hitch-point maximum-force rows. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 24,
"printedPage": 24,
"row": "Power lift — Measured at test frame 610 mm to the rear of the hitch points",
"printedCellValue": "100 mm at hitch points / 105 mm test frame: movement 805 mm; maximum force 1495 kp; 175 kp/cm²; front axle load 0: lifting force 1145 kp. 285 mm / 305 mm: movement 745 mm; maximum force 1510 kp; 175 kp/cm²; lifting force 1145 kp.",
"printedUnit": "mm; kp; kp/cm²",
"testCondition": "DLG test 14 February 1967; test frame 610 mm behind hitch points; engine oil BP HD 20 SAE.",
"renderSha256": "D71A96EBDDA675C391B334D4B6D47296A559B85FA8B69299766CD71DA5254022"
} |
| Pumpens öppnings- och hålltryck | 178 opening; 175 sustained kp/cm² Test measurements; distinct from the 175 kp/cm² specification maximum on p.7. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 24,
"printedPage": 24,
"row": "Pump characteristics — opening pressure of relief valve; sustained pressure by open relief valve",
"printedCellValue": "opening pressure 178 kp/cm²; sustained pressure by the open relief valve 175 kp/cm²",
"printedUnit": "kp/cm²",
"testCondition": "DLG test 14 February 1967; external tapping.",
"renderSha256": "D71A96EBDDA675C391B334D4B6D47296A559B85FA8B69299766CD71DA5254022"
} |
| Pumpflöde vid minimitryck | 25,0 l/min | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 24,
"printedPage": 24,
"row": "Pump characteristics — pump delivery rate at external tapping — at minimum pressure",
"printedCellValue": "25,0 l/min",
"printedUnit": "l/min",
"testCondition": "DLG test 14 February 1967; external tapping; minimum pressure.",
"renderSha256": "D71A96EBDDA675C391B334D4B6D47296A559B85FA8B69299766CD71DA5254022"
} |
| Hydraulisk effekt vid maximalt hydraulikuttag | 23,5 l/min; 8,4 metric hp at 160 kp/cm² l/min; metric hp; kp/cm² Original metric hp and pressure units preserved; do not relabel as kW or bar. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 24,
"printedPage": 24,
"row": "Pump characteristics — at maximum hydraulic power",
"printedCellValue": "23,5 l/min; maximum hydraulic power 8,4 hp (metric); delivery pressure 160 kp/cm²",
"printedUnit": "l/min; hp (metric); kp/cm²",
"testCondition": "DLG test 14 February 1967; external tapping, maximum hydraulic power point.",
"renderSha256": "D71A96EBDDA675C391B334D4B6D47296A559B85FA8B69299766CD71DA5254022"
} |
| Alternativ hydraulpump med ZF-column hydrostyrning | Type 7409 configuration: 37,5 l/min at minimum pressure; 31,6 l/min at maximum hydraulic power; 10,9 metric hp at 155 kp/cm² l/min; metric hp; kp/cm² Retain as a separate configuration; it does not establish that this pump was fitted to the tested tractor. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 24,
"printedPage": 24,
"row": "Remark — Using the tractor with ZF-column hydrosteering type 7409",
"printedCellValue": "Bosch type HY/ZFR 1/16 AL 104 gear type pump; maximum oil pressure 175 kp/cm²; opening pressure 178 kp/cm²; sustained pressure 175 kp/cm²; 37,5 l/min minimum pressure; 31,6 l/min at maximum hydraulic power; 10,9 hp (metric) at 155 kp/cm²",
"printedUnit": "l/min; hp (metric); kp/cm²",
"testCondition": "Separate hydraulic-steering pump configuration, not merged with the standard pump test.",
"renderSha256": "D71A96EBDDA675C391B334D4B6D47296A559B85FA8B69299766CD71DA5254022"
} |
| Totallängd med drag i trepunktslyften | 3675 mm | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Overall dimensions — overall length",
"printedCellValue": "3675 mm with drawbar in three point linkage",
"printedUnit": "mm",
"testCondition": "Drawbar in three-point linkage.",
"renderSha256": "F36C3E2A5849210C937BBE73925D45D6C79B313D0E4C21C9E5157D0BA26F2AD9"
} |
Historical Fendt Farmer 3 S (FW 238), based on DLG/OECD Report No. 205. Specimen-only measurements retain the stated serial/configuration/conditions. No generation, model-year, production-span, PIN or sales-market inference; distinct from later 300/3SA/Vario models.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Huvud-PTO: drivsätt | Proportional to engine speed; independent from main clutch; manually engaged as stated | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — Main p.t.o.",
"printedCellValue": "Main p.t.o., proportional engine speed, independent from main clutch, manually engaged",
"printedUnit": "no separate unit",
"testCondition": "Specification of the named tested model.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| Huvud-PTO: varvtal och motorvarvtalsbasis | 579 p.t.o. r.p.m. at rated engine speed; standard 540 p.t.o. r.p.m. at 1935 engine r.p.m. p.t.o. r.p.m. and engine r.p.m. The engine speed for the standard 540 setting is not the 2075 r.p.m. rated speed. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — Speed",
"printedCellValue": "579 r.p.m. at rated engine speed; 540 r.p.m. standard p.t.o. speed at 1935 r.p.m. engine speed may be set by aid of tractormeter",
"printedUnit": "p.t.o. r.p.m.; engine r.p.m.",
"testCondition": "Main p.t.o. specification.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| Huvud-PTO: axelmått och splines | 29 × 34,9 × 8,7 mm = 1 3/8 in; 6 splines mm / inch / spline count, as stated DIN 9611 Form I; BS 1495; ASAE S 203.7 stated in the same source row. · Original metric and inch notation retained together. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — Dimensions",
"printedCellValue": "29 × 34,9 × 8,7 mm = 1 3/8 in; 6 splines",
"printedUnit": "mm; inch; splines",
"testCondition": "Main rear p.t.o. shaft.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| Mellan-PTO vid märkmotorvarvtal | 1197 r.p.m. Separate from the main rear PTO. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Power take-off — Medium p.t.o. — Speed",
"printedCellValue": "1197 r.p.m. at rated engine speed",
"printedUnit": "r.p.m.",
"testCondition": "Medium p.t.o., proportional engine speed, independent from main clutch.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| Remskiva: inte monterad på provexemplaret | Not fitted on tractor tested as stated Does not mean the feature was unavailable as an option. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 7,
"printedPage": 7,
"row": "Belt pulley",
"printedCellValue": "Not fitted on tractor tested. Figures acc. to manufacturers statements",
"printedUnit": "no separate unit",
"testCondition": "Equipment configuration of the individual tested tractor.",
"renderSha256": "C469F3BCA9342BD7C9CB0F29246EC2920560CA3F9A8727BEBE6384F4F66AE029"
} |
| DLG-PTO-prov: effekt vid maxeffekt i tvåtimmarsprov | 44,1 metric hp Keep this measured PTO output separate from the optional engine-test result. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 11,
"printedPage": 11,
"row": "Compulsory test — Main power take-off performance — At maximum power, 2 hours test",
"printedCellValue": "44,1; engine 2075 r.p.m.; p.t.o. 579 r.p.m.",
"printedUnit": "metric hp; engine r.p.m.; PTO r.p.m.",
"testCondition": "Compulsory PTO test dated 26 August 1966 at Darmstadt-Kranichstein; Schenck hydraulic dynamometer; maximum-power 2-hour test.",
"renderSha256": "37A82F652880BC3090B597FEE7DF7838F11EE21962654DEF9047D20F134D80EF"
} |
| DLG-PTO-prov: effekt vid standardiserat PTO-varv | 42,8 metric hp The observed PTO speed is 539 r.p.m. in this test row; do not round it into the printed cell. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 11,
"printedPage": 11,
"row": "Compulsory test — Main power take-off performance — At standard p.t.o. speed (540 r.p.m.)",
"printedCellValue": "42,8; engine 1935 r.p.m.; p.t.o. 539 r.p.m.",
"printedUnit": "metric hp; engine r.p.m.; PTO r.p.m.",
"testCondition": "Compulsory PTO test dated 26 August 1966 at Darmstadt-Kranichstein; Schenck hydraulic dynamometer; standard 540 PTO setting.",
"renderSha256": "37A82F652880BC3090B597FEE7DF7838F11EE21962654DEF9047D20F134D80EF"
} |
| DLG-PTO-prov: högsta ekvivalenta vevaxelmoment | 16,95 at 1390 engine r.p.m.; 15,2 at maximum power kpm Torque is explicitly equivalent crankshaft torque; do not label as output-shaft PTO torque. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 11,
"printedPage": 11,
"row": "Main power take-off performance — torque",
"printedCellValue": "Torque at maximum power 15,2 kpm; maximum torque 16,95 kpm at 1390 r.p.m. of the engine",
"printedUnit": "kpm; engine r.p.m.",
"testCondition": "Compulsory PTO test; report footnote says torque is equivalent crankshaft torque.",
"renderSha256": "37A82F652880BC3090B597FEE7DF7838F11EE21962654DEF9047D20F134D80EF"
} |
| Separat valfritt motorprov: effekt vid 540 PTO-varv | 44,9 metric hp The row names a PTO-speed operating point while reporting engine-test output. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 25,
"printedPage": 25,
"row": "Optional engine test — At standard p.t.o. speed (540 r.p.m.)",
"printedCellValue": "44,9 at 1935 engine r.p.m.",
"printedUnit": "metric hp; engine r.p.m.",
"testCondition": "Optional engine test dated 21 July 1966; Schenck hydraulic dynamometer; engine speed for standard PTO setting.",
"renderSha256": "3F67546134A71CEDBA84A3D7049DCF4233ED6438C4CC4640ABE731D777E10368"
} |
Historical Fendt Farmer 3 S (FW 238), based on DLG/OECD Report No. 205. Specimen-only measurements retain the stated serial/configuration/conditions. No generation, model-year, production-span, PIN or sales-market inference; distinct from later 300/3SA/Vario models.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Cylinderdiameter och slaglängd | 95 / 105 mm, bore / stroke Original bore/stroke pair retained in the printed order. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Engine — Cylinders",
"printedCellValue": "bore/stroke 95/105 mm",
"printedUnit": "mm, bore/stroke",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Framdäck enligt rapporten | 6,50-16 AS Front; 6 ply tyre size; ply No market-specific or later fitment inference. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheels — Steering wheels",
"printedCellValue": "Two at front, 6,50-16 AS Front 6 ply pneumatic",
"printedUnit": "tyre size; ply",
"testCondition": "Test report wheel specification.",
"renderSha256": "699B615B3752F040F6AF0314F20ACD349D839B83663877963D1F777C975825C0"
} |
| Framdäckens tillåtna belastning med villkor | 780 kp at 3,0 kp/cm²; 975 kp when transporting mounted implements kp; kp/cm² Preserve the report's exact wording; mounted-implement transport is a separate condition. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheels — Steering wheels — maximum permissible weight",
"printedCellValue": "max. permissible weight on each tyre 780 kp at 3,0 kp/cm²; when transporting mounted implements 975 kp",
"printedUnit": "kp per tyre; kp/cm²",
"testCondition": "Report-stated tyre load conditions.",
"renderSha256": "699B615B3752F040F6AF0314F20ACD349D839B83663877963D1F777C975825C0"
} |
| Bakdäck enligt rapporten | 14,9/13-30 AS; 6 ply tyre size; ply No market-specific or later fitment inference. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheels — Driving wheels",
"printedCellValue": "Two at rear, 14,9/13-30 AS 6 ply",
"printedUnit": "tyre size; ply",
"testCondition": "Test report wheel specification.",
"renderSha256": "699B615B3752F040F6AF0314F20ACD349D839B83663877963D1F777C975825C0"
} |
| Bakdäckens tillåtna belastning med villkor | 1585 kp at 1,3 kp/cm²; 1820 kp when transporting mounted implements kp; kp/cm² Preserve the report's exact wording; mounted-implement transport is a separate condition. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheels — Driving wheels — maximum permissible weight",
"printedCellValue": "max. permissible weight on each tyre 1585 kp at 1,3 kp/cm²; when transporting mounted implements 1820 kp",
"printedUnit": "kp per tyre; kp/cm²",
"testCondition": "Report-stated tyre load conditions.",
"renderSha256": "699B615B3752F040F6AF0314F20ACD349D839B83663877963D1F777C975825C0"
} |
| Axelavstånd | 2253 mm | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 8,
"printedPage": 8,
"row": "Wheel base",
"printedCellValue": "2253 mm",
"printedUnit": "mm",
"testCondition": "Dimension as stated in the report.",
"renderSha256": "699B615B3752F040F6AF0314F20ACD349D839B83663877963D1F777C975825C0"
} |
| Provvikt utan ballast med/utan förare | Without driver: front 876 kp, rear 1484 kp, total 2360 kp; with driver: front 884 kp, rear 1546 kp, total 2430 kp kp Not a general shipping or operating weight for all market configurations. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Weights — Weight of tractor without ballast",
"printedCellValue": "front axle load 876 kp without driver / 884 kp with driver; rear axle load 1484 kp / 1546 kp; total 2360 kp / 2430 kp",
"printedUnit": "kp",
"testCondition": "With power lift, three-point linkage, full fuel tank and oil, as tested; without ballast; report separates with/without driver.",
"renderSha256": "F36C3E2A5849210C937BBE73925D45D6C79B313D0E4C21C9E5157D0BA26F2AD9"
} |
| Ballastalternativ och vatten i däck | Front: 3 weights 124 kp at drawbar test; 5 weights 205 kp permitted. Rear: 5 wheel weights per wheel, total 570 kp; 12 wheel weights 660 kp available. Water in tyres 386 kp kp Different values distinguish tested ballast, permitted/available ballast, and water in tyres. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Weights — Ballast front; Ballast rear; water in tyres",
"printedCellValue": "3 front-weights mounted = 124 kp at drawbar test; 5 front-weights = 205 kp permitted; 5 wheel-weights per wheel total 570 kp; 12 wheel-weights = 660 kp available by manufacturer; water in tyres 386 kp",
"printedUnit": "kp",
"testCondition": "Report-listed ballast and water mass.",
"renderSha256": "F36C3E2A5849210C937BBE73925D45D6C79B313D0E4C21C9E5157D0BA26F2AD9"
} |
| Provvikt med ballast | Front axle 1000 kp; rear axle 2440 kp; total 3440 kp kp This row has no explicit driver column; do not infer driver inclusion. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Weights — Weight of tractor with ballast",
"printedCellValue": "front axle load 1000 kp; rear axle load 2440 kp; total 3440 kp",
"printedUnit": "kp",
"testCondition": "With ballast, as separately listed in the report.",
"renderSha256": "F36C3E2A5849210C937BBE73925D45D6C79B313D0E4C21C9E5157D0BA26F2AD9"
} |
| Totalbredd utan ballastvikter | 1904 mm | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Overall dimensions — overall width",
"printedCellValue": "1904 mm without ballast weights",
"printedUnit": "mm",
"testCondition": "Without ballast weights.",
"renderSha256": "F36C3E2A5849210C937BBE73925D45D6C79B313D0E4C21C9E5157D0BA26F2AD9"
} |
| Totalhöjd till ryggstödets överkant | 1670 mm | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Overall dimensions — overall height",
"printedCellValue": "1670 mm to top of back rest of the seat",
"printedUnit": "mm",
"testCondition": "Height reference point is top of seat backrest.",
"renderSha256": "F36C3E2A5849210C937BBE73925D45D6C79B313D0E4C21C9E5157D0BA26F2AD9"
} |
| Markfrigång med två referenslägen | 400 mm in vertical centre plane; 350 mm apart vertical centre plane mm Preserve centre-plane versus off-centre condition. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 9,
"printedPage": 9,
"row": "Overall dimensions — maximum ground clearance",
"printedCellValue": "400 mm in vertical centre plane; 350 mm apart vertical centre plane",
"printedUnit": "mm",
"testCondition": "Two positions stated by the report.",
"renderSha256": "F36C3E2A5849210C937BBE73925D45D6C79B313D0E4C21C9E5157D0BA26F2AD9"
} |
Historical Fendt Farmer 3 S (FW 238), based on DLG/OECD Report No. 205. Specimen-only measurements retain the stated serial/configuration/conditions. No generation, model-year, production-span, PIN or sales-market inference; distinct from later 300/3SA/Vario models.
| Uppgift | Värde och utförande | Källa |
|---|---|---|
| Modellbeteckning i DLG/OECD-rapporten | Fendt Farmer 3 S (FW 238) as stated Does not establish model year, generation, production span or PIN range. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 1,
"printedPage": null,
"row": "Cover — tractor model",
"printedCellValue": "FENDT FARMER 3 S (FW 238)",
"printedUnit": "no separate unit",
"testCondition": "Report cover; exact historical model designation.",
"renderSha256": "B557596CD7404CC12F7F1B480D61D7B9F690DADAA40A829FCE80A0E4AB4FDB1E"
} |
| DLG-provnummer | 4033/SPF as stated Test identifier only; not a model year or serial range. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Page heading — Test No.",
"printedCellValue": "Test No. 4033/SPF",
"printedUnit": "no separate unit",
"testCondition": "DLG test report identification.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Serienummer för provexemplaret | 238/1/0015 as stated Applies only to the tested tractor; it is not a production/PIN boundary. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Tractor — Serial No.",
"printedCellValue": "238/1/0015",
"printedUnit": "no separate unit",
"testCondition": "Individual DLG test specimen.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Traktortyp enligt rapporten | Diesel-tractor, unit construction as stated No drivetrain configuration is inferred from this row. | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Tractor — Type",
"printedCellValue": "Diesel-tractor, unit construction",
"printedUnit": "no separate unit",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
| Bränsletankens kapacitet | 65 l | Källa
Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205 Källpost Originalcell och exakt källankare{
"sourceId": "fendt-farmer-3-s-dlg-oecd-205",
"pageTitle": "Fendt Farmer 3 S (FW 238) — DLG/OECD Report No. 205",
"modelColumn": "Fendt Farmer 3 S (FW 238); test specimen serial 238/1/0015 where stated.",
"physicalPdfPage": 4,
"printedPage": 4,
"row": "Fuel system — capacity of fuel tank",
"printedCellValue": "capacity of fuel tank 65 l",
"printedUnit": "l",
"testCondition": "Specification of the named tested model.",
"renderSha256": "073FFA88794D9CA6A547E38E3BDB7F4D3D532D48B8008DD20DCD62279EA9C90B"
} |
Jämför publicerade faktarader och deras källvillkor mellan modellprofiler.
Välj en modell för att se de faktarader som har källgranskats.
Öppna källposten för publikation, variant, period och metod.
Reuse frozen image review B08; exact badge and CC0 1.0 metadata were checked there. Photo is not identified as DLG specimen serial 238/1/0015.
The report cover and physical p.4 identify Fendt Farmer 3 S (FW 238); p.4 gives specimen serial 238/1/0015. Physical p.5 carries the inconsistent header "Ford Farmer 3 S (FW 238)" despite Test No. 4033/SPF; no physical p.5 facts are proposed. Technical facts are taken from other exact, visually inspected pages. PTO and optional engine tests remain separate.
Styrker: Modellbeteckning i DLG/OECD-rapporten · DLG-provnummer · Serienummer för provexemplaret · Traktortyp enligt rapporten · Motortillverkare · Motormodell · Motortyp · Antal och placering av cylindrar · Cylinderdiameter och slaglängd · Slagvolym · Kompressionsförhållande · Reglerat motorvarvtalsområde · Märkvarvtal för redovisade arbetssätt · Bränsletankens kapacitet · Teoretisk färdhastighet i snabbväxel · Huvud-PTO: drivsätt · Huvud-PTO: varvtal och motorvarvtalsbasis · Huvud-PTO: axelmått och splines · Mellan-PTO vid märkmotorvarvtal · Remskiva: inte monterad på provexemplaret · Trepunktens hydrauliska reglagefunktioner · Trepunktens kategori · Maximalt oljetryck i hydraulsystemets specifikation · Hydrauloljekapacitet enligt utrustningsvillkor · DLG-lyftkraft vid nedre länkarnas hitchpunkter · DLG-lyftkraft vid testbalk 610 mm bakom hitchpunkterna · Pumpens öppnings- och hålltryck · Pumpflöde vid minimitryck · Hydraulisk effekt vid maximalt hydraulikuttag · Alternativ hydraulpump med ZF-column hydrostyrning · Framdäck enligt rapporten · Framdäckens tillåtna belastning med villkor · Bakdäck enligt rapporten · Bakdäckens tillåtna belastning med villkor · Axelavstånd · Provvikt utan ballast med/utan förare · Ballastalternativ och vatten i däck · Provvikt med ballast · Totallängd med drag i trepunktslyften · Totalbredd utan ballastvikter · Totalhöjd till ryggstödets överkant · Markfrigång med två referenslägen · DLG-PTO-prov: effekt vid maxeffekt i tvåtimmarsprov · DLG-PTO-prov: effekt vid standardiserat PTO-varv · DLG-PTO-prov: högsta ekvivalenta vevaxelmoment · Separat valfritt motorprov: maximal effekt · Separat valfritt motorprov: effekt vid 540 PTO-varv · Separat valfritt motorprov: högsta motormoment · Separat valfritt motorprov: lägsta specifika bränsleförbrukning
Avgränsat källunderlag · status gap · omfattning comparisonFacts.
En fullständig granskning av hela modellguiden är inte dokumenterad.
Partial historical test profile with 49 source-cell-bound facts. Report/test specimen scope is preserved; no full-guide attestation.
