Fendt · Farmer 300

Fendt Farmer 307 LSA

Farmer 307 LSA Turbomatik har fyrhjulsdrift, en trecylindrig MWM-turbodiesel på 3117 cm³ och växellåda av typen R 21/6. I DLG-provet 1986 uppmättes 53,4 kW motoreffekt vid tvåtimmarsprovet och 46,8 kW på kraftuttaget vid 1000 varv/min.

Omfattning

Uppgifterna gäller DLG-provets utförande FWA 170 S. Testresultat är mätvärden för provmaskinen; bildens traktor är ett separat referensexemplar. Ingen modellårs- eller serienummergräns är fastställd.

Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 · Fendt Farmer 307 LSA Turbomatik · Wikimedia Commons · 2020

Motorfabrikat och modellMWM TD 226B-3 not stated
Uppgivet nominellt motorvarvtal2200 1/min
Uppmätt max. motorvridmoment288 Nm
VäxellådstypFendt type R 21/6 not stated
Hydraulpumpens flöde vid nominellt motorvarvtal37.4 l/min

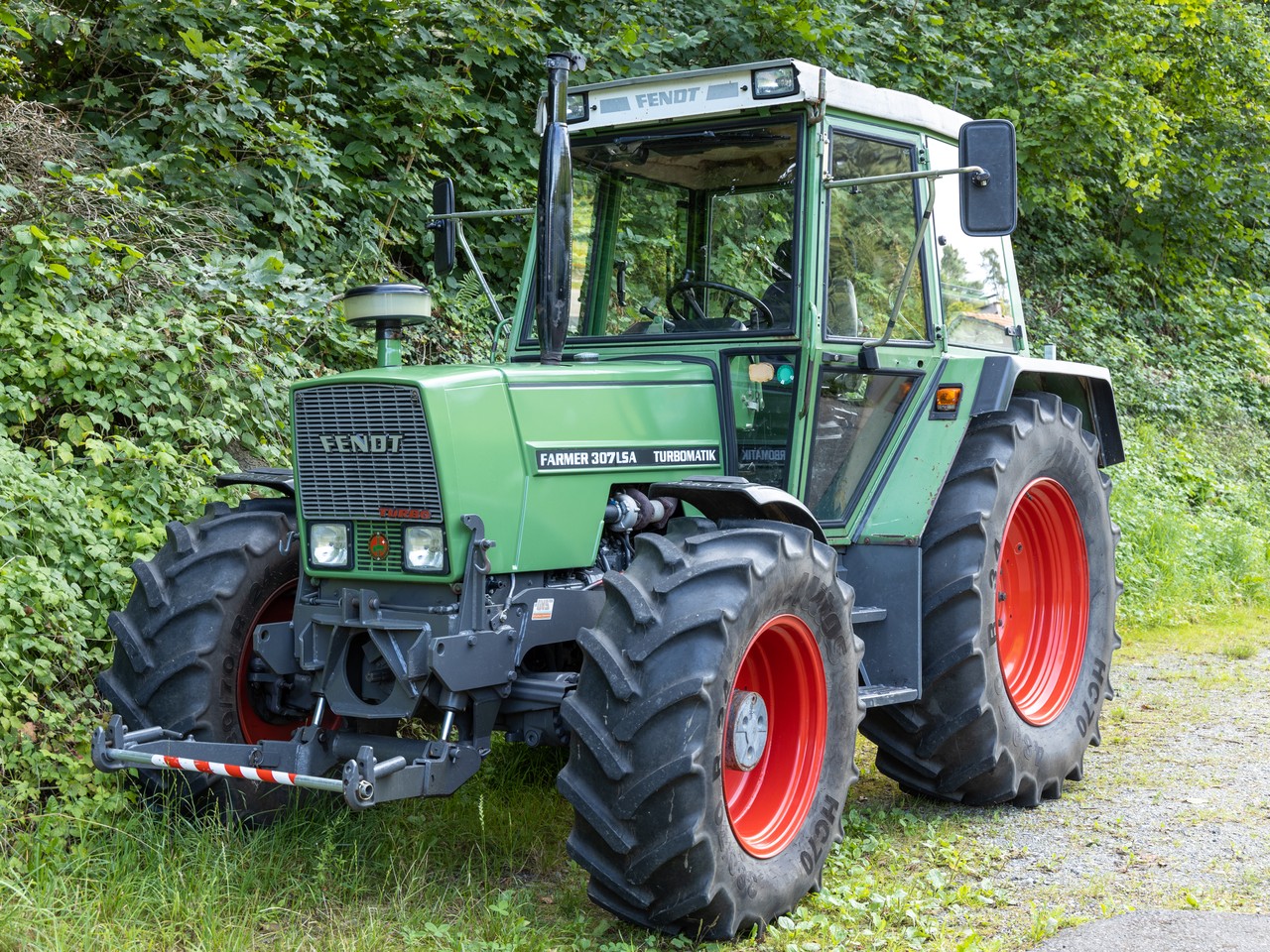

Fendt Farmer 307 LSA Turbomatik fotograferad från sidan, med modellbeteckningen tydlig på motorhuven. — Fendt Farmer 307 LSA Turbomatik. Referensfoto från 2020, proportionellt förminskat; visar inte DLG-provets enskilda traktor.
Foto: JoachimKohler-HB · JoachimKohler-HB, Wikimedia Commons, CC BY-SA 4.0. Proportionellt förminskad till 1280 × 960 px; EXIF borttaget. · CC BY-SA 4.0 · Bildkälla

Översikt

Model identity and test scope

The DLG title page names Fendt Farmer 307 LSA Turbomatik (4WD); the specification page gives type FWA 170 S. The report does not name a generation or production range.

Om villkoren

Do not relabel as a later 307 Vario or infer MY/PIN from the 1986 test dates.

Källor till avsnittet

Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986

Kraft, fart och format.

Fendt Farmer 307 LSA

Alla tekniska data

Motoreffekt

Uppmätt motoreffekt, 2-timmarstest53,4 kWExact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D… · OECD reportFakta

Uppmätt motoreffekt vid uppgivet nominellt varvtal52,8 kWExact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D… · OECD reportFakta

Motor

Cylindervolym3117 cm³

Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D…

Fakta

Antal cylindrar3 cylindrar

Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D…

Fakta

Mått

Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D…

Totallängd utan ballast3 780 mmFakta

Totalhöjd till hyttak2 593 mmFakta

Proportion mellan publicerade mått; bilden visar inte maskinens form. Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D…

Hjulbas2 152 mm

Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D…

Fakta

Totalbredd utan ballast1 945 mm

Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D…

Fakta

Fler mått

DLG-mätt tyngdpunktshöjd över mark940 mm

Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen… · OECD test · Position of centre of gravity of the tested tractor.

Mätpunkt / villkor: Position of centre of gravity of the tested tractor.

Fakta

Hydraulik

Flödesuppgifter per källrad och utförande

Hydraulpumpens flöde vid nominellt motorvarvtal37,4 L/min

Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in D…

Fakta

Fler flödesuppgifter

DLG-mätt hydraulpumpsflöde vid minimitryck, standardflöde40,1 L/min

Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen… · OECD test

Fakta

DLG-mätt hydraulpumpsflöde vid minimitryck, högfartsventilläge61,4 L/min

Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen… · OECD test

Fakta

Tekniska data

Motor och effekt · Mått och vikt · Övriga uppgifter · Transmission · Kraftuttag · Hydraulik och lyft

Motor och effekt

Farmer 307 LSA · Motor och effekt
Uppgift	Värde och utförande	Källa
Motorfabrikat och modell	MWM TD 226B-3 not stated Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.	Källa Originalrubrik Motorfabrikat och modell Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report FENDT FARMER 307 LSA TURBOMATIK (4WD), Test 86-62 / OECD No. 1029, physical PDF p.4, Engine — Make (MWM) and Engine — Model (TD 226B-3). Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 4, "printedPage": 4, "row": "Engine — Make; Engine — Model", "printedCellValue": "Make: MWM; Model: TD 226B-3", "printedUnit": "not stated", "testCondition": null }
Antal cylindrar	3 cylindrar Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.	Källa Originalrubrik Antal cylindrar Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.4, Engine — Cylinders. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 4, "printedPage": 4, "row": "Engine — Cylinders", "printedCellValue": "3, vertical in line", "printedUnit": "cylindrar", "testCondition": null }
Cylinderdiameter	105 mm Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.	Källa Originalrubrik Cylinderdiameter Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.4, Engine — Cylinders (bore). Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 4, "printedPage": 4, "row": "Engine — Cylinders (bore)", "printedCellValue": "105", "printedUnit": "mm", "testCondition": null }
Cylindervolym	3117 cm³ Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.	Källa Originalrubrik Cylindervolym Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.4, Engine — Cylinders (displacement). Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 4, "printedPage": 4, "row": "Engine — Cylinders (displacement)", "printedCellValue": "3117", "printedUnit": "cm³", "testCondition": null }
Uppgivet nominellt motorvarvtal	2200 1/min Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. · This does not supply or imply rated engine power.	Källa Originalrubrik Uppgivet nominellt motorvarvtal Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.5, Governor — rated engine speed. Villkor This does not supply or imply rated engine power. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 5, "printedPage": 5, "row": "Governor — rated engine speed", "printedCellValue": "rated engine speed 2200 1/min", "printedUnit": "1/min", "testCondition": null }
DLG dragkraftsprov, oballasterad maximaleffekt, gear 3 A FM	3648 daN Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Concrete track; unballasted maximum-power test; drawbar height 480 mm above ground; test date 28 April–22 May 1986. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG dragkraftsprov, oballasterad maximaleffekt, gear 3 A FM Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.24, Drawbar performance — Maximum power (unballasted) — gear 3 A FM — drawbar pull. Villkor Concrete track; unballasted maximum-power test; drawbar height 480 mm above ground; test date 28 April–22 May 1986. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 24, "printedPage": 24, "row": "Drawbar performance — Maximum power (unballasted) — gear 3 A FM — drawbar pull", "printedCellValue": "3 A FM \| 3.58 km/h \| 36.3 kW \| 3648 daN \| 2120 1/min \| 15.1% wheel slip", "printedUnit": "daN", "testCondition": "Concrete track; unballasted maximum-power test; drawbar height 480 mm above ground; test date 28 April–22 May 1986." }
DLG dragkraftsprov, ballasterad maximaleffekt, gear 1 A FM	4971 daN Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Concrete track; ballasted maximum-power test; drawbar height 475 mm above ground; test date 28 April–22 May 1986. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG dragkraftsprov, ballasterad maximaleffekt, gear 1 A FM Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.24, Drawbar performance — Maximum power (ballasted) — gear 1 A FM — drawbar pull. Villkor Concrete track; ballasted maximum-power test; drawbar height 475 mm above ground; test date 28 April–22 May 1986. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 24, "printedPage": 24, "row": "Drawbar performance — Maximum power (ballasted) — gear 1 A FM — drawbar pull", "printedCellValue": "1 A FM \| 1.51 km/h \| 20.9 kW \| 4971 daN \| 2284 1/min \| 14.9% wheel slip", "printedUnit": "daN", "testCondition": "Concrete track; ballasted maximum-power test; drawbar height 475 mm above ground; test date 28 April–22 May 1986." }
DLG dragkraft under femtimmarstest vid 75% av dragkraften vid maximieffekt	1941 daN Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Five-hour test; row is gear 1 S FM at 75% of pull at maximum power. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG dragkraft under femtimmarstest vid 75% av dragkraften vid maximieffekt Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.24, Drawbar performance — Five-hour test at 75% of pull at maximum power — gear 1 S FM — drawbar pull. Villkor Five-hour test; row is gear 1 S FM at 75% of pull at maximum power. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 24, "printedPage": 24, "row": "Drawbar performance — Five-hour test at 75% of pull at maximum power — gear 1 S FM — drawbar pull", "printedCellValue": "1 S FM \| 6.65 km/h \| 35.9 kW \| 1941 daN \| 2245 1/min \| 3.4% wheel slip", "printedUnit": "daN", "testCondition": "Five-hour test; row is gear 1 S FM at 75% of pull at maximum power." }

Transmission

Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.

Farmer 307 LSA · Transmission
Uppgift	Värde och utförande	Källa
Växellådstyp	Fendt type R 21/6 not stated Report describes 21 forward and 6 reverse speeds. Creeper option is listed separately.	Källa Originalrubrik Växellådstyp Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.6, Transmission — Gear box. Villkor Report describes 21 forward and 6 reverse speeds. Creeper option is listed separately. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 6, "printedPage": 6, "row": "Transmission — Gear box", "printedCellValue": "Fendt type R 21/6", "printedUnit": "not stated", "testCondition": null }
Växellägen med monterad krypväxel	20 framåt / 6 bakåt not stated Conditional: only with creeper range installed; report says 21 forward and 6 reverse speeds otherwise.	Källa Originalrubrik Växellägen med monterad krypväxel Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.6, Transmission — Gear box — total speeds if creeper range is installed. Villkor Conditional: only with creeper range installed; report says 21 forward and 6 reverse speeds otherwise. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 6, "printedPage": 6, "row": "Transmission — Gear box — total speeds if creeper range is installed", "printedCellValue": "total 20 forward and 6 reverse speeds", "printedUnit": "not stated", "testCondition": null }

Hydraulik och lyft

Farmer 307 LSA · Hydraulik och lyft
Uppgift	Värde och utförande	Källa
Hydraulpumpens flöde vid nominellt motorvarvtal	37.4 l/min Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.	Källa Originalrubrik Hydraulpumpens flöde vid nominellt motorvarvtal Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.10, Power lift — Hydraulic system — delivery at rated engine speed. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 10, "printedPage": 10, "row": "Power lift — Hydraulic system — delivery at rated engine speed", "printedCellValue": "delivery 37.4 l/min at rated engine speed", "printedUnit": "l/min", "testCondition": null }
Maxtryck, hydraulisk reglerventil	180±10 bar Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.	Källa Originalrubrik Maxtryck, hydraulisk reglerventil Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.10, Power lift — Hydraulic system — control valve maximum pressure. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 10, "printedPage": 10, "row": "Power lift — Hydraulic system — control valve maximum pressure", "printedCellValue": "max. pressure 180±10 bar", "printedUnit": "bar", "testCondition": null }
Separat hydrauloljetank	20 l Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.	Källa Originalrubrik Separat hydrauloljetank Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.10, Power lift — Hydraulic system — separate hydraulic oil tank. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 10, "printedPage": 10, "row": "Power lift — Hydraulic system — separate hydraulic oil tank", "printedCellValue": "20", "printedUnit": "l", "testCondition": null }
Hydraulolja som kan tas ut	6 under arbete/resor; 15 stillastående l Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. · Conditions preserved as stated: 6 l while working/travelling; 15 l stationary.	Källa Originalrubrik Hydraulolja som kan tas ut Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.10, Power lift — Hydraulic system — oil available for take-off. Villkor Conditions preserved as stated: 6 l while working/travelling; 15 l stationary. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 10, "printedPage": 10, "row": "Power lift — Hydraulic system — oil available for take-off", "printedCellValue": "up to 6 l oil may be taken off working, travelling and 15 l stationary", "printedUnit": "l", "testCondition": null }
DLG-mätt maximal lyftkraft vid lyftpunkterna genom hela lyftområdet	2170 daN Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. · At the hitch points: 2170 daN. The DLG table separately reports 1880 daN on the test frame; do not conflate these measurement locations.	Källa Originalrubrik DLG-mätt maximal lyftkraft vid lyftpunkterna genom hela lyftområdet Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor DLG measured lifting-force result; not a manufacturer-rated lift capacity. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report FENDT FARMER 307 LSA TURBOMATIK (4WD), Test 86-62 / OECD No. 1029, physical PDF p.29, Lifting forces — max. force exerted through full range, at hitch points. Villkor At the hitch points: 2170 daN. The DLG table separately reports 1880 daN on the test frame; do not conflate these measurement locations. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 29, "printedPage": 29, "row": "Lifting forces and hydraulic power — Lifting forces — Max. force exerted through full range", "printedCellValue": "2170 daN at hitch points", "printedUnit": "daN", "testCondition": "DLG test dated 4 June 1986; lower hitch points 200 mm above ground in down position; table also gives corresponding hydraulic pressure 164 bar." }
DLG-mätt hydraulpumpsflöde vid minimitryck, standardflöde	40.1 l/min Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Hydraulic power test dated 4 June 1986; footnote (*) means standard delivery. This measured test result is distinct from the 37.4 l/min nominal/rated-engine-speed specification on p.10. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-mätt hydraulpumpsflöde vid minimitryck, standardflöde Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.29, Hydraulic power — Pump delivery rate at minimum pressure — standard delivery. Villkor Hydraulic power test dated 4 June 1986; footnote () means standard delivery. This measured test result is distinct from the 37.4 l/min nominal/rated-engine-speed specification on p.10. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 29, "printedPage": 29, "row": "Hydraulic power — Pump delivery rate at minimum pressure — standard delivery", "printedCellValue": "40.1 l/min ()", "printedUnit": "l/min", "testCondition": "Hydraulic power test dated 4 June 1986; footnote (*) means standard delivery. This measured test result is distinct from the 37.4 l/min nominal/rated-engine-speed specification on p.10." }
DLG-mätt hydraulpumpsflöde vid minimitryck, högfartsventilläge	61.4 l/min Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation, see p.10. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-mätt hydraulpumpsflöde vid minimitryck, högfartsventilläge Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.29, Hydraulic power — Pump delivery rate at minimum pressure — high-speed operation. Villkor Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation, see p.10. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 29, "printedPage": 29, "row": "Hydraulic power — Pump delivery rate at minimum pressure — high-speed operation", "printedCellValue": "61.4 l/min (+)", "printedUnit": "l/min", "testCondition": "Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation, see p.10." }
DLG-mätt varaktigt tryck med öppen överströmningsventil, standardflöde	182 bar Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Hydraulic power test dated 4 June 1986; footnote (*) means standard delivery. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-mätt varaktigt tryck med öppen överströmningsventil, standardflöde Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.29, Hydraulic power — Sustained pressure with relief valve open — standard delivery. Villkor Hydraulic power test dated 4 June 1986; footnote () means standard delivery. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 29, "printedPage": 29, "row": "Hydraulic power — Sustained pressure with relief valve open — standard delivery", "printedCellValue": "182 bar ()", "printedUnit": "bar", "testCondition": "Hydraulic power test dated 4 June 1986; footnote (*) means standard delivery." }
DLG-mätt varaktigt tryck med öppen överströmningsventil, högfartsventilläge	188 bar Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation, see p.10. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-mätt varaktigt tryck med öppen överströmningsventil, högfartsventilläge Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.29, Hydraulic power — Sustained pressure with relief valve open — high-speed operation. Villkor Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation, see p.10. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 29, "printedPage": 29, "row": "Hydraulic power — Sustained pressure with relief valve open — high-speed operation", "printedCellValue": "188 bar (+)", "printedUnit": "bar", "testCondition": "Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation, see p.10." }
DLG-mätt maximal hydraulisk effekt, standardflöde	10.4 kW Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Hydraulic power test dated 4 June 1986; footnote (*) means standard delivery; the same table gives flow, pressure and oil temperature. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-mätt maximal hydraulisk effekt, standardflöde Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.29, Hydraulic power — Maximum — standard delivery. Villkor Hydraulic power test dated 4 June 1986; footnote () means standard delivery; the same table gives flow, pressure and oil temperature. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 29, "printedPage": 29, "row": "Hydraulic power — Maximum — standard delivery", "printedCellValue": "10.4 kW \| 38.2 l/min \| 164 bar \| 65 °C ()", "printedUnit": "kW", "testCondition": "Hydraulic power test dated 4 June 1986; footnote (*) means standard delivery; the same table gives flow, pressure and oil temperature." }
DLG-mätt maximal hydraulisk effekt, högfartsventilläge	14.7 kW Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation; the same table gives flow, pressure and oil temperature. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-mätt maximal hydraulisk effekt, högfartsventilläge Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.29, Hydraulic power — Maximum — high-speed operation. Villkor Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation; the same table gives flow, pressure and oil temperature. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 29, "printedPage": 29, "row": "Hydraulic power — Maximum — high-speed operation", "printedCellValue": "14.7 kW \| 54.6 l/min \| 162 bar \| 65 °C (+)", "printedUnit": "kW", "testCondition": "Hydraulic power test dated 4 June 1986; footnote (+) means valve position high speed operation; the same table gives flow, pressure and oil temperature." }

Kraftuttag

Farmer 307 LSA · Kraftuttag
Uppgift	Värde och utförande	Källa
Bakre kraftuttag, drivning och tillval	Independent; optional ground-speed PTO or reverse rotation not stated Ground-speed PTO and reverse rotation were optional and not installed on this tested unit.	Källa Originalrubrik Bakre kraftuttag, drivning och tillval Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.9, Power-take-off — Main p.t.o.. Villkor Ground-speed PTO and reverse rotation were optional and not installed on this tested unit. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 9, "printedPage": 9, "row": "Power-take-off — Main p.t.o.", "printedCellValue": "Independent; optionally shiftable as ground p.t.o. or with reverse rotation; not installed on tested tractor", "printedUnit": "not stated", "testCondition": null }
Bakre kraftuttagsval, olastat	540/750/1000 1/min Report states speeds apply to unloaded PTO only; fluid-clutch slip under load changes PTO speed.	Källa Originalrubrik Bakre kraftuttagsval, olastat Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor Selectable settings from the PTO table; actual unloaded PTO speeds and matching engine speeds are separately tabulated. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.9, Power-take-off — p.t.o. table — P.t.o. selector. Villkor Report states speeds apply to unloaded PTO only; fluid-clutch slip under load changes PTO speed. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 9, "printedPage": 9, "row": "Power-take-off — p.t.o. table — P.t.o. selector", "printedCellValue": "540; 750; 1000", "printedUnit": "1/min", "testCondition": "Unloaded PTO setting; paired PTO and engine speeds are shown on physical PDF p.9." }
PTO-effekt vid standardprovets PTO-varvtal	46.8 kW	Källa Originalrubrik PTO-effekt vid standardprovets PTO-varvtal Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor Compulsory DLG main PTO performance test under the report’s OECD programme; measured PTO output, not engine power. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.20, Compulsory tests — Main power take-off performance (1000 1/min) — At standard p.t.o. speed. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 20, "printedPage": 20, "row": "Compulsory tests — Main power take-off performance (1000 1/min) — At standard p.t.o. speed", "printedCellValue": "46.8 kW; engine speed 2122 1/min; clutch output 2073 1/min; p.t.o. output 1000 1/min", "printedUnit": "kW", "testCondition": "Main PTO test dated 17 April 1986; 1000 1/min PTO test series." }

Mått och vikt

Övriga uppgifter

Farmer 307 LSA · Övriga uppgifter
Uppgift	Värde och utförande	Källa
Bränsletank	80 l Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor.	Källa Originalrubrik Bränsletank Utförande Exact FENDT FARMER 307 LSA TURBOMATIK (4WD), type FWA 170 S, as tested in DLG Test 86-62 / OECD No. 1029. Values are bounded to this report, specimen and stated test conditions; do not generalize optional equipment to every tractor. Standard och villkor No separate performance standard is stated for this specification cell; it describes the tested unit. Marknad English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability. Källperiod DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated. Underlag DLG report “FENDT FARMER 307 LSA TURBOMATIK (4WD)”, Test 86-62 / OECD No. 1029, physical PDF p.4, Fuel system — fuel tank. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-07 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "pageTitle": "FENDT FARMER 307 LSA TURBOMATIK (4WD) — Test 86-62 / OECD No. 1029", "modelColumn": "Fendt Farmer 307 LSA Turbomatik, tested type FWA 170 S (4WD)", "physicalPdfPage": 4, "printedPage": 4, "row": "Fuel system — fuel tank", "printedCellValue": "80", "printedUnit": "l", "testCondition": null }
DLG-dragkraft i femtimmarstest vid dragkraft motsvarande 15 % hjulslirning i test (ii)	4971 daN Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Five-hour test (iv); the heading defines the pull as corresponding to 15% wheel slip in maximum-power test (ii). The reported (iv) row itself prints no wheel-slip value. Physical p.25 says test (iv) used additional ballast and that unquoted figures are irrelevant. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-dragkraft i femtimmarstest vid dragkraft motsvarande 15 % hjulslirning i test (ii) Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.24, Drawbar performance — Five-hour test at pull corresponding to 15% wheel slip in test (ii) — gear 2 A FS — drawbar pull. Villkor Five-hour test (iv); the heading defines the pull as corresponding to 15% wheel slip in maximum-power test (ii). The reported (iv) row itself prints no wheel-slip value. Physical p.25 says test (iv) used additional ballast and that unquoted figures are irrelevant. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 24, "printedPage": 24, "row": "Drawbar performance — Five-hour test at pull corresponding to 15% wheel slip in test (ii) — gear 2 A FS — drawbar pull", "printedCellValue": "2 A FS \| 2.61 km/h \| 36.0 kW \| 4971 daN \| 2134 1/min \| slip not printed", "printedUnit": "daN", "testCondition": "Five-hour test (iv); the heading defines the pull as corresponding to 15% wheel slip in maximum-power test (ii). The reported (iv) row itself prints no wheel-slip value. Physical p.25 says test (iv) used additional ballast and that unquoted figures are irrelevant." }
DLG-provets totala oljeförbrukning under tio timmar i test (ii) och (iv)	38 g/h Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Combined duration of ballasted maximum-power test (ii) and five-hour test (iv); not engine-fuel consumption. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-provets totala oljeförbrukning under tio timmar i test (ii) och (iv) Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.24, Drawbar performance — Total oil consumption during ten hours duration of tests (ii) and (iv). Villkor Combined duration of ballasted maximum-power test (ii) and five-hour test (iv); not engine-fuel consumption. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 24, "printedPage": 24, "row": "Drawbar performance — Total oil consumption during ten hours duration of tests (ii) and (iv)", "printedCellValue": "38 g/h", "printedUnit": "g/h", "testCondition": "Combined duration of ballasted maximum-power test (ii) and five-hour test (iv); not engine-fuel consumption." }
DLG-provets parkeringsbromsens manöverkraft, ballasterad maskin, upp/ned i 18% lutning	19 / 20 daN (up / down) Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Ballasted tractor on an 18% slope. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-provets parkeringsbromsens manöverkraft, ballasterad maskin, upp/ned i 18% lutning Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.27, Parking brake — Braking device control force — ballasted tractor on 18%-slope — up / down. Villkor Ballasted tractor on an 18% slope. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 27, "printedPage": 27, "row": "Parking brake — Braking device control force — ballasted tractor on 18%-slope — up / down", "printedCellValue": "19 daN up \| 20 daN down", "printedUnit": "daN (up / down)", "testCondition": "Ballasted tractor on an 18% slope." }
DLG-provets parkeringsbromsens manöverkraft, oballasterad med 3000 kg släp, upp/ned i 12% lutning	18 / 18 daN (up / down) Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 · Unballasted tractor on a 12% slope with a 3000 kg trailer. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range.	Källa Originalrubrik DLG-provets parkeringsbromsens manöverkraft, oballasterad med 3000 kg släp, upp/ned i 12% lutning Utförande Fendt Farmer 307 LSA Turbomatik (4WD), tested type FWA 170 S, DLG specimen serial 170/21/0005 Standard och villkor DLG/OECD test result for the named report/test configuration; preserve the specific condition below. Marknad German test-location evidence only; sales market and Swedish availability are not established. Källperiod Tests February–June 1986; no model-year, production or PIN boundary is stated. Underlag DLG original OECD report 1029 / Test 86-62, physical and printed p.27, Parking brake — Braking device control force — unballasted tractor on 12%-slope with trailer of 3000 kg — up / down. Villkor Unballasted tractor on a 12% slope with a 3000 kg trailer. Applies only to tested 4WD specimen FWA 170 S, serial 170/21/0005; does not establish a model-year or serial-number range. Publicerad Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year. Läst 2026-10-08 Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986 Källpost Originalcell och exakt källankare { "sourceId": "fendt-farmer-307-lsa-dlg-oecd-test-1029-1986", "sourceUrl": "https://pruefberichte.dlg.org/filestorage/FENDT-Farmer_307_LSA_Nr1029_1986-englisch.pdf", "authority": "DLG original OECD test report", "physicalPdfPage": 27, "printedPage": 27, "row": "Parking brake — Braking device control force — unballasted tractor on 12%-slope with trailer of 3000 kg — up / down", "printedCellValue": "18 daN up \| 18 daN down", "printedUnit": "daN (up / down)", "testCondition": "Unballasted tractor on a 12% slope with a 3000 kg trailer." }

Jämför modelluppgifter

Jämför publicerade faktarader och deras källvillkor mellan modellprofiler.

Välj modell

Välj en modell för att se de faktarader som har källgranskats.

Källor

Öppna källposten för publikation, variant, period och metod.

Fendt Farmer 307 LSA Turbomatik · Wikimedia Commons · 2020
Källpost och omfattning
Myndighet eller utgivare
File-specific Wikimedia Commons description and original pixels; DLG report independently confirms the model designation.
Publicerad / godkänd
Photographed 2020-08-16; uploaded 2020-08-17. Photo date is not tractor model year.
Marknad
Reference photograph; tractor sales market is not established.
Källperiod
Photograph date 2020-08-16; no production period or PIN evidence.
Anteckningar
JoachimKohler-HB; own work; CC BY-SA 4.0. Original pixels show FARMER 307 LSA and TURBOMATIK. Image resized proportionally to 1280 × 960 pixels and EXIF removed, retaining CC BY-SA 4.0. Reference photo is separate from the DLG test specimen.
JoachimKohler-HB; own work; CC BY-SA 4.0. Original pixels show FARMER 307 LSA and TURBOMATIK. Image resized proportionally to 1280 × 960 pixels and EXIF removed, retaining CC BY-SA 4.0. Reference photo is separate from the DLG test specimen.
Fendt Farmer 307 LSA Turbomatik (4WD) · DLG/OECD Test 1029 · 1986
Källpost och omfattning
Myndighet eller utgivare
Deutsche Landwirtschafts-Gesellschaft (DLG), original tractor test report under OECD Standard Code.
Publicerad / godkänd
Tests February–June 1986; OECD approval 24 October 1986; printed November 1986. These dates do not establish a model year.
Marknad
English-language report of tests at DLG-Test Station Groß-Umstadt, Germany. This is test location, not a sales market or Swedish availability.
Källperiod
Report test window February–June 1986; OECD approval 24 October 1986; print imprint November 1986. No MY, production or PIN boundary.
Anteckningar
Title page explicitly names “FENDT FARMER 307 LSA TURBOMATIK (4WD)”; type designation FWA 170 S. Physical p.4 gives the tested unit’s serial and start-of-series numbers; these are specimen identifiers and are not used as MY or production evidence. Page 2 says this is an engineering test and does not evaluate practical-work performance.
Tillgång och läsmetod
Original PDF publicly served by DLG; retained only in the private research cache, not copied to public web assets. · Downloaded and SHA-256 hashed the public original. Visually inspected original raster pages 1–6, 8–10, 13, 15, 17–18, 20–21, 24–25, and 29–30. Each proposed fact is anchored to one exact original page and row; no values are copied from another model or inferred from a graph.
Källintegritet
{"sha256":"C560C3A87E991188A5D860AE4FE90273191500C34A698E92CD0D6815362AABFC","bytes":779706,"pages":40}
Title page explicitly names “FENDT FARMER 307 LSA TURBOMATIK (4WD)”; type designation FWA 170 S. Physical p.4 gives the tested unit’s serial and start-of-series numbers; these are specimen identifiers and are not used as MY or production evidence. Page 2 says this is an engineering test and does not evaluate practical-work performance.
Styrker: Motorfabrikat och modell · Antal cylindrar · Cylinderdiameter · Slaglängd · Cylindervolym · Uppgivet nominellt motorvarvtal · Uppmätt motoreffekt, 2-timmarstest · Uppmätt motoreffekt vid uppgivet nominellt varvtal · Uppmätt max. motorvridmoment · Bränsletank · Växellådstyp · Växellägen med monterad krypväxel · Bakre kraftuttag, drivning och tillval · Bakre kraftuttagsval, olastat · PTO-effekt vid standardprovets PTO-varvtal · Hydraulpumpens flöde vid nominellt motorvarvtal · Maxtryck, hydraulisk reglerventil · Separat hydrauloljetank · Hydraulolja som kan tas ut · DLG-mätt maximal lyftkraft vid lyftpunkterna genom hela lyftområdet · Däck i dragkraftsprovet · Hjulbas · Totallängd utan ballast · Totalbredd utan ballast · Totalhöjd till hyttak · Markfrigång under framaxel · DLG-provets massa utan ballast och förare · DLG-provets massa utan ballast med förare · Tekniskt tillåten totalmassa enligt DLG-provet · DLG dragkraftsprov, oballasterad maximaleffekt, gear 3 A FM · DLG dragkraftsprov, ballasterad maximaleffekt, gear 1 A FM · DLG dragkraft under femtimmarstest vid 75% av dragkraften vid maximieffekt · DLG-dragkraft i femtimmarstest vid dragkraft motsvarande 15 % hjulslirning i test (ii) · DLG-provets totala oljeförbrukning under tio timmar i test (ii) och (iv) · DLG-mätt vändradie för svängutrymme, med bromsar, vänster/höger · DLG-mätt vändradie för svängutrymme, utan bromsar, vänster/höger · DLG-mätt vändradie för vändcirkel, med bromsar, vänster/höger · DLG-mätt vändradie för vändcirkel, utan bromsar, vänster/höger · DLG-mätt tyngdpunktshöjd över mark · DLG-mätt tyngdpunktens avstånd framåt från bakaxelns centrum · DLG-mätt tyngdpunktens sidoförskjutning vänster om traktorns mittplan · DLG-provets parkeringsbromsens manöverkraft, ballasterad maskin, upp/ned i 18% lutning · DLG-provets parkeringsbromsens manöverkraft, oballasterad med 3000 kg släp, upp/ned i 12% lutning · DLG-mätt yttre ljudnivå vid 29,4 km/h i tredje överväxeln · DLG-mätt hydraulpumpsflöde vid minimitryck, standardflöde · DLG-mätt hydraulpumpsflöde vid minimitryck, högfartsventilläge · DLG-mätt varaktigt tryck med öppen överströmningsventil, standardflöde · DLG-mätt varaktigt tryck med öppen överströmningsventil, högfartsventilläge · DLG-mätt maximal hydraulisk effekt, standardflöde · DLG-mätt maximal hydraulisk effekt, högfartsventilläge

Om underlaget

Modellkod: Farmer 307 LSA
Serie: Farmer 300
Generation: No generation designation is stated. DLG identifies Farmer 307 LSA Turbomatik (4WD), type FWA 170 S; keep this historical Farmer profile separate from any later 307 Vario.
Marknad: German DLG test location and English-language report; sales market and Swedish availability unknown.
Källperiod: DLG tests February–June 1986; OECD approval dated 24 October 1986; printed November 1986. No MY, production interval or PIN stated.

Avgränsat källunderlag · status gap · omfattning comparisonFacts.

En fullständig granskning av hela modellguiden är inte dokumenterad.

50 selected exact-cell facts from one named DLG-tested 4WD specimen, including drawbar, turning, braking, noise and hydraulic measurements. No fullGuide attestation; test conditions and measured outputs remain separate from OEM nominal ratings.

Öppna kontrollfrågor (5)

No generation, MY, production interval or PIN boundary stated.
No sales market or Swedish order status established.
DLG report is one tested 4WD specimen; optional equipment and other configurations remain unresolved.
Measured DLG outputs must remain separate from manufacturer-rated nominal/max ratings.
No owner history, service intervals, prices, or fullGuide review.
