John Deere · 55-serien

John Deere 4255

4255: Motorvolym anges till 7634 ml (466 cu.in.). Kompressionsförhållande anges till 16.0 : 1. Växelantal och reglage anges till 16 framåt och 6 bakåt; manövreras med 2 handspakar.

Visa underlag till modellöversikten

Faktarader

Källposter

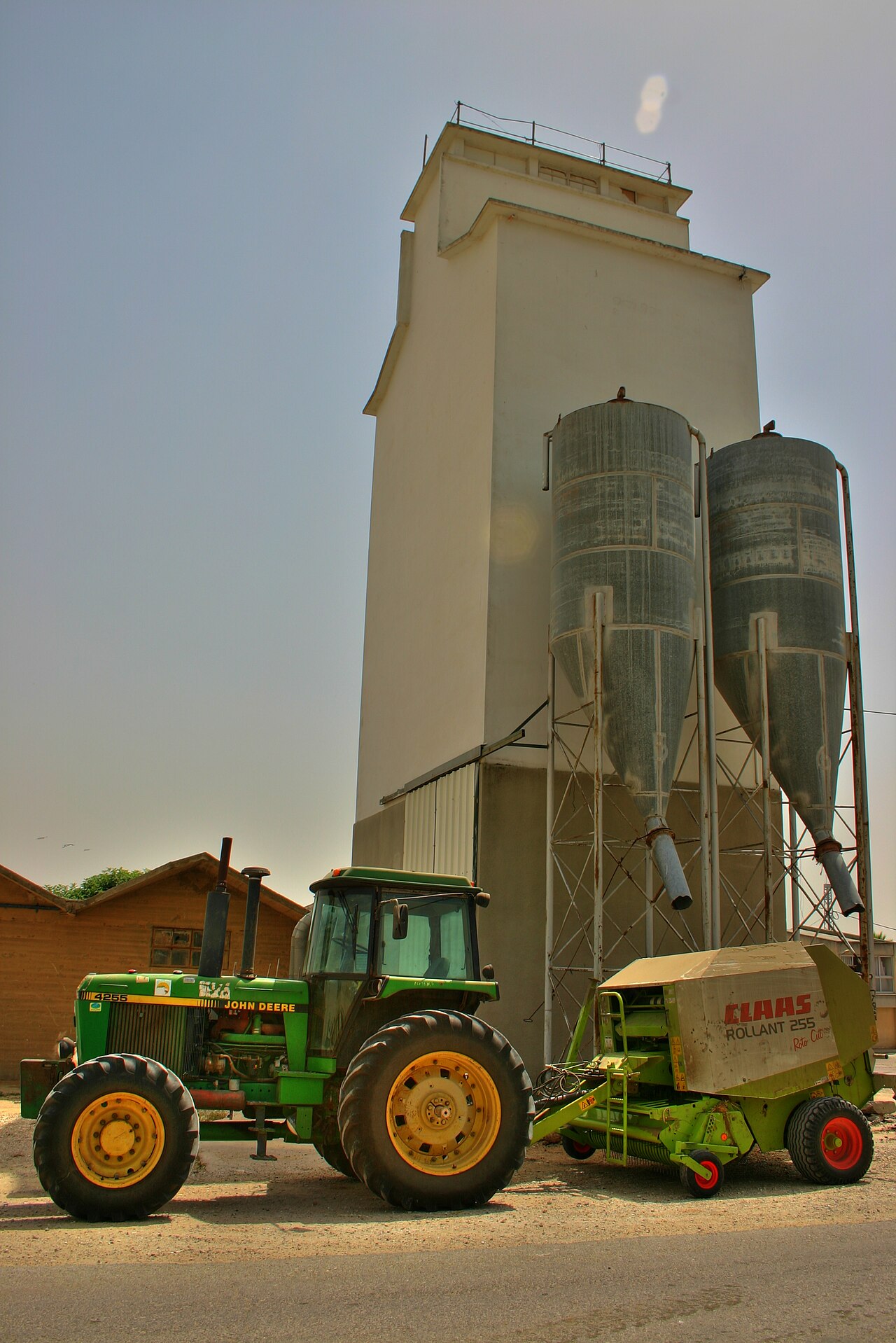

Grön John Deere 4255 med Claas Rollant 255-rundbalspress, fotograferad på ett kibbutzområde vid Shavu’ot 2006.
John Deere 4255 med Claas Rollant 255-rundbalspress vid Shavu’ot 2006. Referensfoto; inte OECD Test 1627-exemplaret RW4255H001914.
Foto: Yaniv Ben-Arie, ‘TractorAtTheKibbutz (159067129),’ Wikimedia Commons, CC BY-SA 2.0. · Licens · Bildkälla

Översikt

Kraft, fart och format.

John Deere 4255

Alla tekniska data

Hastighet

Dragstångsprov · högsta uppmätta dragstångseffekt och SFCVisad hastighet 9,79 km/h på skalan 0 till 10 km/h.0510

9,79 km/h

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar.

Fakta
Fler hastighetsuppgifter
Dragstångsprov · största dragkraft i maxeffekttabellen och SFC3:e växeln (A3)*: dragstångseffekt 71.43 kW; dragkraft 47.58 kN; hastighet 5.40 km/h; motorvarvtal 2297 rev/min; slirning 8.24 %;…

Flera värden eller villkor i samma källrad; ingen enskild fart har valts för en mätare.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar.

Fakta

Motor

Motorvolym7634 ml (466 cu.in.) ml (cu.in.)

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar.

Fakta

Tekniska data

Motor och effekt

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4255 · Motor och effekt
UppgiftVärde och utförandeKälla
Motorbeteckning och utförande på provtraktornJohn Deere 6076TRW01; turboladdad dieselmotor med 6 cylindrar i rad, toppventiler och våta, utbytbara cylinderfoder
Källa

Originalvärde: John Deere 6076TRW01; diesel, turbocharged; 6 in-line/vertical; overhead valves; wet, replaceable liners

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.1 / PDF p.4, “Specifications of Tractor”: Engine model/type, cylinders, valves and liners.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Cylinderdiameter × slaglängd115.8 mm × 120.7 mm (4.56 in × 4.75 in) mm × mm (in × in)
Källa

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.1 / PDF p.4, Engine > Cylinders > Bore × stroke.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Motorvolym7634 ml (466 cu.in.) ml (cu.in.)
Källa

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.1 / PDF p.4, Engine > Cubic capacity.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Kompressionsförhållande16.0 : 1
Källa

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.1 / PDF p.4, Engine > Compression Ratio.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Laddtryck enligt provspecifikationenSchwitzer/RE29310/avgasturbindriven; 80–100 kPa (12–15 psi) vid nominellt varvtal och belastning
Källa

Originalvärde: Schwitzer/RE29310/exhaust gas driven; 80–100 kPa (12–15 psi) at rated speed & load kPa (psi)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.1 / PDF p.4, Super Charging > Make/Model/Type and Pressure.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Insprutningspump och flöde vid full lastNippondenso/RE36656/in-line; 23.5 ± 1.06 kg/hr (51.8 ± 2.34 lb/hr) vid nominellt motorvarvtal och full belastning
Källa

Originalvärde: Nippondenso/RE36656/in-line; 23.5 ± 1.06 kg/hr (51.8 ± 2.34 lb/hr) at rated engine speed & full load kg/hr (lb/hr)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.2 / PDF p.5, Fuel System > Injection Pump > Production setting > Flow Rate.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Insprutare, tryck och timingNippondenso/RE30084/21 mm; 29.0 MPa (4200 psi); 27 grader före övre dödläget (TDC)
Källa

Originalvärde: Nippondenso/RE30084/21 mm; 29.0 MPa (4200 psi); 27 degrees before TDC MPa (psi)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.2 / PDF p.5, Fuel System > Injectors, Injection pressure and Timing.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Reglerat, nominellt och högt tomgångsvarvtalReglerat varvtalsområde 800–2400 varv/min; nominellt varvtal 2200 varv/min; högt tomgångsvarvtal 2375 ± 25 varv/min
Källa

Originalvärde: Governed 800–2400 rev/min; rated 2200 rev/min; high idle 2375 ± 25 rev/min rev/min

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.2 / PDF p.5, Governor > governed/rated/high-idle rows.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Kylsystemets kapacitet25.6 liter (27 qt) L (qt)
Källa

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language DLG/Nebraska test plus Deere June 2016 U.S.-domain service sheet; no individual sales market is stated.

Källperiod: DLG test/approval dates and Deere service-sheet date June 2016; neither source defines a model production/MY/PIN interval.

Underlag: DLG #1247 printed p.2 / PDF p.5, Coolant system capacity 25.6 L (27 qt); Deere sheet PDF p.2 shared row 25.6 L (6.8 gal). Source units retained separately.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: DLG test Sep 1989, OECD approval 28 Mar 1990; Deere sheet June 2016.

Läst: 2026-10-07

Öppna källa · Öppna källa

Rekommenderad motorolja i DLG-provetJohn Deere Torq-Gard Supreme; 102 cSt; API-CD; MIL-L-2104D; samma olja användes i provet.
Källa

Originalvärde: John Deere Torq-Gard Supreme; 102 cSt; API-CD; MIL-L-2104D; same oil used during test cSt

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.12 / PDF p.15, Oils and Lubrication > Engine oil, recommended/used columns.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Motorolja utan filter och testunderlagets intervall18 liter (19 quart), motor utan filter; oljebyte efter 250 h; filterbyte efter 250 h.
Källa

Originalvärde: 18 liter (19 quart), engine without filter; oil change 250 hours; filter change 250 hours L (quart); hours

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.12 / PDF p.15, Capacity and change interval > Engine (w/o filter).

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Dragstångsprov

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4255 · Dragstångsprov
UppgiftVärde och utförandeKälla
Dragstångsprov · konfiguration för maxeffekttabellenOECD-data för dragstång (SI), avsnitt I maxeffekt (oballasterad 2WD vid 1900 rev/min); prov 1627; provdatum 14-Sep-89 och 15-Sep-89; betongbana; bränslets densitet 0.828 kg/l; dragstångshöjd 559 mm; däcktryck bak 110 kPa och fram 276 kPa.
Källa

Originalvärde: OECD Drawbar Data (SI), I. Maximum Power (unballasted 2WD @ 1900 rev/min); Test 1627; dates 14-Sep-89 and 15-Sep-89; concrete track; fuel density 0.828 kg/l; drawbar height 559 mm; rear tire pressure 110 kPa and front 276 kPa. rev/min; mm; kPa; kg/l

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Values are test-report evidence for the exact tested configuration, not a universal model-wide fitment or standard-equipment claim.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.19 / PDF p.22, complete OECD Drawbar Data (SI) header and section I test-condition line; later part-load results on printed p.20 are not used for this fact.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Dragstångsprov · högsta uppmätta dragstångseffekt och SFC8:e växeln (C2): dragstångseffekt 86.19 kW; dragkraft 31.69 kN; hastighet 9.79 km/h; motorvarvtal 1901 rev/min; slirning 4.01 %; specifik bränsleförbrukning 0.265 kg/kW.h och 3.13 kW.h/l.
Källa

Originalvärde: 8th gear (C2): drawbar power 86.19 kW; pull 31.69 kN; speed 9.79 km/h; engine speed 1901 rev/min; slip 4.01%; SFC 0.265 kg/kW.h and 3.13 kW.h/l. kW; kN; km/h; rev/min; %; kg/kW.h; kW.h/l

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Values are test-report evidence for the exact tested configuration, not a universal model-wide fitment or standard-equipment claim.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.19 / PDF p.22, OECD Drawbar Data (SI), I. Maximum Power (unballasted 2WD @ 1900 rev/min), 8th-gear (C2) row; SFC columns exactly as headed in the table.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Dragstångsprov · största dragkraft i maxeffekttabellen och SFC3:e växeln (A3)*: dragstångseffekt 71.43 kW; dragkraft 47.58 kN; hastighet 5.40 km/h; motorvarvtal 2297 rev/min; slirning 8.24 %; specifik bränsleförbrukning 0.310 kg/kW.h och 2.67 kW.h/l. Källans not anger att dragkraften begränsades av tangentiell dragkraftsgräns. Detta är den högsta redovisade dragkraften i tabellen.
Källa

Originalvärde: 3rd gear (A3)*: drawbar power 71.43 kW; pull 47.58 kN; speed 5.40 km/h; engine speed 2297 rev/min; slip 8.24%; SFC 0.310 kg/kW.h and 2.67 kW.h/l. The printed note says “*Pull limited due to tangential pull limit.” This is the largest pull shown among gears in this table. kW; kN; km/h; rev/min; %; kg/kW.h; kW.h/l

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Values are test-report evidence for the exact tested configuration, not a universal model-wide fitment or standard-equipment claim.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.19 / PDF p.22, OECD Drawbar Data (SI), I. Maximum Power (unballasted 2WD @ 1900 rev/min), 3rd-gear (A3)* row and its note.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Transmission

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

4255 · Transmission
UppgiftVärde och utförandeKälla
Quad-Range-transmissionens uppbyggnadJohn Deere Quad-Range; motaxel- och planetväxelkonstruktion; en 8-växlad låda med 4 osynkroniserade grupper och 2 synkroniserade växlar i varje grupp, samt en 2-växlad planetväxelsats med flera våta skivkopplingar och bromsar

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: John Deere Quad-Range; countershaft and planetary design; one 8-speed gearbox with 4 non-synchronized ranges and 2 synchronized speeds in each range, plus one 2-speed planetary gearset with multiple wet-disc clutch and brake

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.3 / PDF p.6, Transmission > Gear Box > Make/Type and Arrangement.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Växelantal och reglage16 framåt och 6 bakåt; manövreras med 2 handspakar.

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: 16 forward and 6 reverse; controlled by 2 hand levers

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.3 / PDF p.6, Transmission > Gear Box > Number of gears.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

FlerlamellkopplingOljekyld koppling med 2 lameller; 304.8 mm (12.0 in); hydraulmanövrerad med fotpedal

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Oil cooled; 2 plates; 304.8 mm (12.0 in); hydraulically actuated by foot pedal mm (in)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.3 / PDF p.6, Transmission > Clutch (travel), number/diameter/operation rows.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Quad-Range-växellåda · volym och bytesintervallQRT: 60.5 L (16 gal) utan MFWD; 65.1 L (17.2 gal) med MFWD. Den testade 4255:an är 2WD. DLG anger 60.5 L (64.0 quart), oljebyte efter 1500 h och filterbyte årligen.

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: QRT: 60.5 L (16 gal) without MFWD; 65.1 L (17.2 gal) with MFWD. Tested 4255 is 2WD: DLG lists 60.5 L (64.0 quart), oil change 1500 h, filter change annually. L (gal/quart); hours / calendar

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language DLG/Nebraska test plus Deere June 2016 U.S.-domain service sheet; no individual sales market is stated.

Källperiod: DLG test/approval dates and Deere service-sheet date June 2016; neither source defines a model production/MY/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, QRT 4055/4255/4455 rows split by MFWD; DLG #1247 printed p.12/PDF p.15, gearbox (includes rear axle/rear final drive) capacity/change interval; hydraulic system common with gearbox.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: DLG test Sep 1989, OECD approval 28 Mar 1990; Deere sheet June 2016.

Läst: 2026-10-07

Öppna källa · Öppna källa

Villkorat transmissionsfilter efter felAR98098 kan användas som rengöringsfilter efter ett transmissionshaveri.
Källa

Originalvärde: AR98098 may be used as a cleanup filter after a transmission failure. part number; conditional use

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. The parent page title lists 4255; the conditional cleanup note gives no PST/QRT, MFWD, engine or serial condition. The profile context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; this is not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC OIL FILTER note in parentheses directly below AR94510.

Villkor: This is a conditional cleanup use after a transmission failure, not a normal replacement interval or routine substitute for AR94510.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Hydraulik och lyft

4255 · Hydraulik och lyft
UppgiftVärde och utförandeKälla
Växellåda-, hydraul- och styrningsoljaTransmissionsolja: John Deere Hy-Gard, 58 cSt. Hydraulolja och styrservoolja är samma som transmissionsoljan; samma vätska användes i provet.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalrubrik: Transmission-, hydraul- och styrningsolja

Originalvärde: Transmission: John Deere Hy-Gard, 58 cSt. Hydraulic fluid and steering oil: same as transmission oil; same fluid used in test. cSt

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.12 / PDF p.15, Oil and Lubricant Specifications > Transmission, Hydraulic fluid, Steering oil.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Filterantal per växellådsvariantAR94510; QRT quantity 1; PST quantity 2 antal filter
Källa

Originalrubrik: Transmission/hydraulfilter · antal efter transmission

Originalvärde: AR94510; QRT quantity 1; PST quantity 2 filter quantity

Utförande: 55 Series Row-Crop group; exact model, transmission and MFWD split is restated for each Deere sheet cell.

Standard och villkor: Deere Filter Overview with Service Intervals and Capacities, June 2016; capacities are marked approximate.

Marknad: English-language Deere service sheet hosted on its U.S. parts domain; no particular national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, Transmission/Hydraulic Oil Filter AR94510, QRT/PST quantity rows.

Villkor: Use only the named 55 Series model/transmission/drive cell; no MY/PIN span is stated.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-07

Öppna källa

Hydraullyft · reglering och cylindrarVarierande kombination av dragkrafts- och lägesreglering; avkänning via de nedre lyftarmarna; justerbar sänkhastighet; hydraulsystem med stängt centrum. En intern cylinder och en extern cylinder som tillval, båda enkelverkande.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Variable mix of draft and position control; lower-link sensing; adjustable drop speed; closed center. One internal cylinder plus one optional external cylinder, all single acting.

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: Report specification for the tested tractor; no statement in the cited cell establishes fitment or standard status on every marketed model/variant.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.6 / PDF p.9, POWER LIFT: Type of hydraulic system; Number/Type of cylinders.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Hydraullyft · tryckinställningarÖverströmningsventilens inställning 17.5 ±0.3 MPa (2535 ±45 psi); säkerhetsventilens öppningstryck 20.7 MPa (3000 psi).

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Relief valve setting 17.5 ±0.3 MPa (2535 ±45 psi); cylinder safety-valve opening pressure 20.7 MPa (3000 psi). MPa (psi)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: Report specification for the tested tractor; no statement in the cited cell establishes fitment or standard status on every marketed model/variant.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.6 / PDF p.9, POWER LIFT: Relief valve setting; Opening pressure of cylinder safety valve.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Hydraullyft · pump och drivningRadialkolvpump med variabelt flöde och konstant tryck; direktdriven.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Radial-piston pump; variable delivery, constant pressure; direct drive.

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: Report specification for the tested tractor; no statement in the cited cell establishes fitment or standard status on every marketed model/variant.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.6 / PDF p.9, POWER LIFT: Lift pump type; Power transmission to pump.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Hydraullyft · filter, oljereservoar och uttagEtt pappersfilter; oljereservoar i transmissionshuset; två par bakre ISO-standardkopplingar, med ett tredje par som tillval.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: One paper-element filter; oil reservoir in transmission housing; two pairs of rear ISO standard couplings, with a third set optional. filter; pairs of couplings

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: Report specification for the tested tractor; no statement in the cited cell establishes fitment or standard status on every marketed model/variant.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.6 / PDF p.9, POWER LIFT: Type/Number of filters; Location of oil reservoir; Number/Type/Location of tapping points.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Hydraullyft · tillgänglig olja för externa cylindrarMaximal tillgänglig oljemängd för externa cylindrar: 5.0 L (5.3 qt); 10.0 L (10.6 qt) med högst 5.0 L (5.3 qt) överfyllning.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Maximum available oil for external cylinders: 5.0 L (5.3 qt); 10.0 L (10.6 qt) with 5.0 L (5.3 qt) allowable overfill. L (qt)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: Report specification for the tested tractor; no statement in the cited cell establishes fitment or standard status on every marketed model/variant.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.6 / PDF p.9, POWER LIFT: Max. oil volume available for external cylinders.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Trepunkt · kategoriKategori 2 eller 3N enligt ISO 730/1-1977; ingen kategoriadapter.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Category 2 or 3N, in conformity with ISO 730/1-1977; category adapter: none. ISO category

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: Report specification for the tested tractor; no statement in the cited cell establishes fitment or standard status on every marketed model/variant.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.6 / PDF p.9, THREE POINT LINKAGE.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Trepunkt · lyftkraft och rörelse i DLG-provetGrundprov av trepunktslyften (tryckt s. 17; den följande tryckta s. 18 har separat rubrik ”med lyftassistanscylinder”): största korrigerade kraft över hela lyftområdet är 28.4 kN (6385 lbf) vid lyftkulorna och 24.5 kN (5504 lbf) vid ramen; motsvarande tryck är 14,479 kPa (2100 psi). Vertikal rörelse: vid lyftkulorna 692 mm (27.2 in) utan last och 551 mm (21.7 in) med last; vid ramen 810 mm (31.9 in) utan last och 666 mm (26.2 in) med last.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Baseline power-lift test (printed p.17; the following printed p.18 is separately titled “with lift assist cylinder”): maximum corrected force through full range 28.4 kN (6385 lbf) at hitch points and 24.5 kN (5504 lbf) at frame; corresponding pressure 14,479 kPa (2100 psi). Vertical movement: hitch points 692 mm (27.2 in) unloaded / 551 mm (21.7 in) with load; frame 810 mm (31.9 in) unloaded / 666 mm (26.2 in) with load. kN (lbf); kPa (psi); mm (in)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; exact test-machine configuration.

Standard och villkor: Report specification for the tested tractor; no statement in the cited cell establishes fitment or standard status on every marketed model/variant.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.17 / PDF p.20, section 2.2 POWER LIFT TEST: maximum corrected force through full range, corresponding pressure, vertical movement. Cross-checked separate lift-assist test on printed p.18 / PDF p.21 and not substituted.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Laddpumpens sugsilLaddpumpens sugsil: R53169 (nylon) eller AR26375 (stål). Något rengörings- eller bytesintervall anges inte här.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Charge pump suction screen: R53169 (Nylon) or AR26375 (Steel). No cleaning or replacement interval is stated here. part number; material

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. The parent page title lists 4255; the screen callout gives no PST/QRT, MFWD, engine or serial condition. The profile context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; this is not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC > CHARGE PUMP SUCTION SCREEN; two material-labelled options.

Villkor: The two part numbers are material alternatives as printed; the source gives no service interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Transmissions-/hydrauliksystemets tätningsbrickaTätningsbricka R34733; byt vid behov eller årligen.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Sealing washer R34733; replace as required or annually. part number; conditional / annual interval

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. The parent page title lists 4255; the washer callout gives no PST/QRT, MFWD, engine or serial condition. The profile context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; this is not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC > SEALING WASHER R34733 and its green replacement instruction.

Villkor: Do not convert “as required or annually” into a fixed-hour interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Kraftuttag

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4255 · Kraftuttag
UppgiftVärde och utförandeKälla
Högsta uppmätta PTO-effekt · tvåtimmarsprovTvåtimmarsprovets högsta PTO-effekt: 95.38 kW (127.91 hp) vid motorvarvtalet 1900 rev/min och PTO-varvtalet 866 rev/min.
Källa

Originalvärde: 95.38 kW (127.91 hp) at 1900 engine rev/min and 866 PTO rev/min kW (hp)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.13 / PDF p.16, Main PTO performance row 1.1, maximum power—2-hour test.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

PTO-effekt vid nominellt motorvarvtalPTO-effekt vid nominellt motorvarvtal: 92.23 kW (123.69 hp) vid motorvarvtalet 2200 rev/min och PTO-varvtalet 1002 rev/min.
Källa

Originalvärde: 92.23 kW (123.69 hp) at 2200 engine rev/min and 1002 PTO rev/min kW (hp)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.13 / PDF p.16, Main PTO performance row 1.2, power at rated engine speed—1 hour.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Underrede och band

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

4255 · Underrede och band
UppgiftVärde och utförandeKälla
Bakaxelns differentialspärr och framaxelBakre differentialspärr: hydraulisk fotpedal, kopplas ur automatiskt med bromspedalen. Framaxel: John Deere, inte driven.

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Rear differential lock: hydraulic foot pedal, self disengaging with brake pedal. Front axle: John Deere/not propelled.

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.3 / PDF p.6, Rear Axle > Differential Lock and Front Axle > Make/Model/Type.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

MFWD: smörjmedel och ungefärlig kapacitet i hjulnavenMFWD-raden för 4055, 4255 och 4455: GL-5-växelsmörjmedel (85W-140); hjulnav 1.9 L (2 qt).

Tillval enligt källraden; monterad utrustning är inte verifierad. · Ungefärligt källvärde.

Källa

Originalvärde: MFWD group row for 4055/4255/4455: GL-5 Gear Lubricant (85W-140); wheel hubs 1.9 L (2 qt). lubricant; approximate capacity L (qt)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. This page-2 capacity row explicitly lists the 4055/4255/4455 MFWD group; apply only to an MFWD-equipped 4255. The test context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. For 4255, this is optional-variant information and is not assigned to the 2WD specimen. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; this is not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Mechanical Front Wheel Drive (MFWD), GL-5 Gear Lubricant (85W-140), 4055/4255/4455 group, Wheel Hubs row.

Villkor: Approximate capacity and lubricant for the explicitly named MFWD group only. Not a fill procedure and not applicable to 2WD.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Mått och vikt

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4255 · Mått och vikt
UppgiftVärde och utförandeKälla
Provtraktorns massa · hytt, full tank, oballasteradUtan förare: framaxel 1721 kg (3795 lb), bakaxel 3823 kg (8430 lb), totalt 5544 kg (12225 lb). Med förare: framaxel 1721 kg (3795 lb), bakaxel 3898 kg (8595 lb), totalt 5619 kg (12390 lb).
Källa

Originalvärde: Without driver: front 1721 kg (3795 lb), rear 3823 kg (8430 lb), total 5544 kg (12225 lb). With driver: front 1721 kg (3795 lb), rear 3898 kg (8595 lb), total 5619 kg (12390 lb). kg (lb)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.11 / PDF p.14, Tractor Mass (with cab/full fuel tank), Unballasted front/rear/total, with/without driver.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Däck, tryck och spårvidd på provtraktornFramdäck Goodyear 11.00-16 rib, 8 ply, 280 kPa (40 psi); bakdäck Goodyear 18.4R38 radial, 8 ply, 124 kPa (18 psi); dynamiska radier 457/842 mm; vald spårvidd med enkelhjul 1475/1700 mm och med dubbla bakhjul 3100 mm.
Källa

Originalvärde: Front Goodyear 11.00-16 rib, 8 ply, 280 kPa (40 psi); rear Goodyear 18.4R38 radial, 8 ply, 124 kPa (18 psi); dynamic radii 457/842 mm; chosen track width singles 1475/1700 mm, rear duals 3100 mm tire; kPa (psi); mm

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.11 / PDF p.14, Tire Specifications, front/rear columns. Rear-dual track width is separately printed, not assumed installed.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Motor och maskindata

Motor och effekt

John Deere 4255 · Motor och effekt
UppgiftVärde och utförandeKälla
Motortyp6076TRW01

Utförande 4255 Powershift MFWD · Engine model

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: PDF-sida 4

Utförande: 4255 Powershift MFWD

Mätning: Engine model

Kraftuttag

John Deere 4255 · Kraftuttag
UppgiftVärde och utförandeKälla
Kraftuttagseffekt94.46 kW (126.68 hp)

Utförande 4255 Powershift MFWD · PTO · Maximum power, 2-hour test

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 94.46 kW (126.68 hp) kW

Utförande: 4255 Powershift MFWD

Norm: PTO

Mätning: Maximum power, 2-hour test

Kraftuttagseffekt91.99 kW (123.36 hp)

Utförande 4255 Powershift MFWD · PTO · Power at rated engine speed, 1 hour

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 91.99 kW (123.36 hp) kW

Utförande: 4255 Powershift MFWD

Norm: PTO

Mätning: Power at rated engine speed, 1 hour

Kraftuttagseffekt94.46 kW (126.68 hp)

Utförande 4255 Powershift MFWD · Maximum power, 2-hour test

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 94.46 kW (126.68 hp) hp

Utförande: 4255 Powershift MFWD

Mätning: Maximum power, 2-hour test

Kraftuttagseffekt91.99 kW (123.36 hp)

Utförande 4255 Powershift MFWD · Power at rated engine speed, 1 hour

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 91.99 kW (123.36 hp) hp

Utförande: 4255 Powershift MFWD

Mätning: Power at rated engine speed, 1 hour

Transmission och drivning

John Deere 4255 · Transmission och drivning
UppgiftVärde och utförandeKälla
Drivning4WD

Utförande 4255 Powershift MFWD

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: PDF-sida 4

Utförande: 4255 Powershift MFWD

Mått, vikt och däck

John Deere 4255 · Mått, vikt och däck
UppgiftVärde och utförandeKälla
Vikt6 372 kg

Utförande 4255 Powershift MFWD · unballasted without driver, cab, full fuel

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 6372 kg kg

Sidangivelse: Tryckt sida 11

Utförande: 4255 Powershift MFWD

Mätning: unballasted without driver, cab, full fuel

Vikt6 447 kg

Utförande 4255 Powershift MFWD · unballasted with driver, cab, full fuel

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 6447 kg kg

Sidangivelse: Tryckt sida 11

Utförande: 4255 Powershift MFWD

Mätning: unballasted with driver, cab, full fuel

Längd4 425 mm

Utförande 4255 Powershift MFWD · overall length

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 4425 mm mm

Sidangivelse: Tryckt sida 11

Utförande: 4255 Powershift MFWD

Mätning: overall length

Däck

John Deere 4255 · Däck
UppgiftVärde och utförandeKälla
Framdäck14.9R26

Utförande 4255 Powershift MFWD · test front

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: Tryckt sida 11

Utförande: 4255 Powershift MFWD

Villkor: test front

Bakdäck18.4R38

Utförande 4255 Powershift MFWD · test rear

Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: Tryckt sida 11

Utförande: 4255 Powershift MFWD

Villkor: test rear

Service och underhåll

4255 · Service och underhåll
UppgiftVärde och utförandeKälla
Deere vevhuskapacitet med filterPlus-50 II; ungefärlig vevhusvolym inklusive filter 18 L (4.8 gal).

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: Plus-50 II; approximate crankcase-with-filter capacity 18 L (4.8 gal) OEM lubricant; approximate capacity L (gal)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. The p.2 crankcase row explicitly lists 4055/4255/4455 and does not distinguish engine code, PST/QRT, MFWD or serial. The profile context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: Deere Filter Overview with Service Intervals and Capacities, June 2016; capacities are marked approximate.

Marknad: English-language Deere service sheet hosted on its U.S. parts domain; no particular national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Crankcase with Filter > Plus-50 II > 4055/4255/4455 row.

Villkor: Preserves the existing capacity and adds the exact lubricant product printed above that row; not an oil-grade/API claim.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Motoroljefilter · Deere serviceintervallOljefilter DZ101880; byt var 250 h eller årligen.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: DZ101880; replace every 250 hours or annually part number; hours / calendar

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. The p.1 engine-oil-filter callout is covered by the 55 Series title but gives no separate engine, transmission, drive or serial condition. The profile context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: Deere Filter Overview with Service Intervals and Capacities, June 2016; capacities are marked approximate.

Marknad: English-language Deere service sheet hosted on its U.S. parts domain; no particular national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, Engine Oil Filter DZ101880.

Villkor: Use only the named 55 Series model/transmission/drive cell; no MY/PIN span is stated.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Bränslefilter och bränslesil · kontrollBränslefilter AR86745 och bränslesil AR103220; kontroll var 10 h eller dagligen; byt vid behov.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Fuel filter AR86745 and fuel strainer AR103220; check every 10 hours or daily; replace as required part numbers; hours / daily check

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. The p.1 fuel-filter and strainer callouts are covered by the 55 Series title but give no separate engine, transmission, drive or serial condition. The profile context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: Deere Filter Overview with Service Intervals and Capacities, June 2016; capacities are marked approximate.

Marknad: English-language Deere service sheet hosted on its U.S. parts domain; no particular national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, ENGINE > FUEL FILTER AR86745 and FUEL STRAINER AR103220, followed by shared check/replace instruction.

Villkor: Preserves the distinction between the 10-hour/daily check and replacement as required.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Motorluftfilter · filtertyp och servicePrimärfilter AR79679 och sekundärfilter AR79680; rengör vid behov; byt årligen och vid behov
Källa

Originalvärde: Primary AR79679 and secondary AR79680; clean as required; replace annually and as required

Utförande: 55 Series Row-Crop group; exact model, transmission and MFWD split is restated for each Deere sheet cell.

Standard och villkor: Deere Filter Overview with Service Intervals and Capacities, June 2016; capacities are marked approximate.

Marknad: English-language Deere service sheet hosted on its U.S. parts domain; no particular national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, Engine Primary and Secondary Air Filter rows explicitly list 4055/4255/4455.

Villkor: Use only the named 55 Series model/transmission/drive cell; no MY/PIN span is stated.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-07

Öppna källa

Hyttens recirkulations- och friskluftsfilterRecirkulationsfilter: standardfilter RE12793 eller kraftigt filter RE67830. Friskluftsfilter: R65450. Kontroll var 250 h; byt årligen och vid behov; följ maskinens serviceindikering.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Recirculation air filter: standard RE12793 or heavy-duty RE67830. Fresh-air filter: R65450. Check every 250 hours; replace annually and as required; service as indicated on the machine. part numbers; hours / calendar

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. Page-1 CAB callouts are covered by the 55 Series title and provide no separate model, engine, transmission, drive or serial qualifier. The profile context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; this is not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, CAB > RECIRCULATION AIR FILTER (standard/heavy-duty), CAB > FRESH AIR FILTER, and their adjacent service instructions.

Villkor: The two cab-filter callouts are recorded together because they share the printed check/replacement instruction. Do not infer a cab configuration or serial split.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Returkollektor · rengöringsintervallReturkollektorns sil R27173; rengör var 1,500 h.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Return oil manifold screen R27173; clean every 1,500 hours. part number; hours

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. The parent page title lists 4255; the screen callout gives no PST/QRT, MFWD, engine or serial condition. The profile context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; this is not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC > RETURN OIL MANIFOLD SCREEN R27173 and “Clean filter every 1500 hours.”

Villkor: Source instructs cleaning every 1,500 hours; it does not say to replace the screen at that interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

MFWD: smörjmedel och ungefärlig kapacitet i axelhusetMFWD-raden för 4055, 4255 och 4455: GL-5-växelsmörjmedel (85W-140); axelhus 11.4 L (3 gal).

Tillval enligt källraden; monterad utrustning är inte verifierad. · Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: MFWD group row for 4055/4255/4455: GL-5 Gear Lubricant (85W-140); axle housing 11.4 L (3 gal). lubricant; approximate capacity L (gal)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Exact model scope: 4255. This page-2 capacity row explicitly lists the 4055/4255/4455 MFWD group; apply only to an MFWD-equipped 4255. The test context is DLG Nebraska Test 1627 / OECD 1247, Quad-Range 2WD, engine 6076TRW01, tested serial RW4255H001914; literal first serial RW4255H001001 is not a boundary. For 4255, this is optional-variant information and is not assigned to the 2WD specimen. The service-sheet row does not establish model year, production/PIN boundary or a specific sales market.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; this is not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Mechanical Front Wheel Drive (MFWD), GL-5 Gear Lubricant (85W-140), 4055/4255/4455 group, Axle Housing row.

Villkor: Approximate capacity and lubricant for the explicitly named MFWD group only. Not a fill procedure and not applicable to 2WD.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Övriga uppgifter

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4255 · Övriga uppgifter
UppgiftVärde och utförandeKälla
Bränsletankens kapacitet246 liter (65 US gallons) L (US gal)
Källa

Originalvärde: 246 liter (65 US gallons) L (US gal)

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language DLG/Nebraska test plus Deere June 2016 U.S.-domain service sheet; no individual sales market is stated.

Källperiod: DLG test/approval dates and Deere service-sheet date June 2016; neither source defines a model production/MY/PIN interval.

Underlag: DLG #1247 printed p.1 / PDF p.4, Fuel Tank capacity (65 US gallons); Deere June 2016 sheet PDF p.2, shared 4055/4255/4455 row 246 L (65 gal).

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: DLG test Sep 1989, OECD approval 28 Mar 1990; Deere sheet June 2016.

Läst: 2026-10-07

Öppna källa · Öppna källa

Bränsle som användes i provetDieselbränsle “Premier”, klass 2-D; densitet 0.828 g/cubic-cm (6.910 lb/gallon) vid 15 °C (59 °F); cetantal 51.1; viskositet 2.31 cSt vid 38 °C (100 °F).
Källa

Originalvärde: Diesel Fuel “Premier”; grade 2-D; density 0.828 g/cubic-cm (6.910 lb/gallon) at 15 °C (59 °F); cetane 51.1; viscosity 2.31 cSt at 38 °C (100 °F) g/cubic-cm (lb/gal); cetane; cSt

Utförande: John Deere 4255 Quad-Range (2 WD), Nebraska Test 1627 / OECD #1247; tested serial RW4255H001914; first serial listed RW4255H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code (cover says Restricted Test-Code II). Cited cells are transcribed as printed; no model-wide variant assignment is inferred.

Marknad: English-language U.S./Nebraska OECD test; test sites in Iowa/Nebraska do not establish sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1247 printed p.12 / PDF p.15, Fuel > Type/grade, Density, Cetane number, Viscosity. This is a test condition, not a universal fuel requirement.

Villkor: Applies to the exact report/test configuration only; does not establish universal model fitment, MY, production span, or a PIN range.

Publicerad: Test Sep 1989; OECD approval 28 Mar 1990.

Läst: 2026-10-07

Öppna källa

Jämför modelluppgifter

Jämför källrader för två valda profiler.

Det finns ännu ingen särskilt utvald jämförelse för den här profilen.

Jämförelsen visar modellernas publicerade uppgifter och villkor.

Oljemängder och oljetyp

Oljevolymer, oljespecifikationer och serviceintervall.

Angivna fyllnadsmängder och serviceuppgifter enligt respektive källa
UppgiftVärde och utförandeKälla
Motorolja18 l 4255 Powershift MFWD · engine without filter
Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1233, provtraktor 4255 med mekanisk framhjulsdrift. Kraftuttag 1989-04-07, Lincoln, Eaton Dynamatic 2025 D.G. Tryckt sida -12-. Engine (w/o filter) 18 liter (19 quart).

Utförande: 4255 Powershift MFWD

System: engine without filter

Transmissionsolja60 l 4255 Powershift MFWD · gearbox including rear axle and rear final drive
Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1233, provtraktor 4255 med mekanisk framhjulsdrift. Kraftuttag 1989-04-07, Lincoln, Eaton Dynamatic 2025 D.G. Tryckt sida -12-. Gear Box, includes rear axle and rear final drive, 60 liter. Hydraulsystemet är common with gearbox.

Utförande: 4255 Powershift MFWD

System: gearbox including rear axle and rear final drive

Framaxel8,5 l 4255 Powershift MFWD · front axle housing
Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1233, provtraktor 4255 med mekanisk framhjulsdrift. Kraftuttag 1989-04-07, Lincoln, Eaton Dynamatic 2025 D.G. Tryckt sida -12-. Front axle housing 8.5 liter (9 quart). 8,5 liter motsvarar 9 quart.

Utförande: 4255 Powershift MFWD

System: front axle housing

Framaxel1,9 l 4255 Powershift MFWD · front final drive
Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1233, provtraktor 4255 med mekanisk framhjulsdrift. Kraftuttag 1989-04-07, Lincoln, Eaton Dynamatic 2025 D.G. Tryckt sida -12-. Final drive, front 1.9 liter (2 quart).

Utförande: 4255 Powershift MFWD

System: front final drive

Oljespecifikation · engine oilJohn Deere Torq-Gard Supreme, 102 cSt, API-CD, MIL-L-2104D. 4255 Powershift MFWD · engine oil
Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1233, provtraktor 4255 med mekanisk framhjulsdrift. Kraftuttag 1989-04-07, Lincoln, Eaton Dynamatic 2025 D.G. Tryckt sida -12-. Engine oil recommended.

Utförande: 4255 Powershift MFWD

System: engine oil

Oljespecifikation · transmission, hydraulic and steeringJohn Deere Hy-Gard, 58 cSt. Hydraulvätska och styrningsolja samma som transmissionsoljan. Framaxel och nav: GL-5, 85W-140. 4255 Powershift MFWD · transmission, hydraulic and steering
Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1233, provtraktor 4255 med mekanisk framhjulsdrift. Kraftuttag 1989-04-07, Lincoln, Eaton Dynamatic 2025 D.G. Tryckt sida -12-. Hy-Gard är inte motorolja.

Utförande: 4255 Powershift MFWD

System: transmission, hydraulic and steering

Serviceintervallmotorolja 250 h; motoroljefilter 250 h; transmissionsolja 1 500 h; hydraulolja 1 500 h 4255 Powershift MFWD · OECD oil table
Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1233, provtraktor 4255 med mekanisk framhjulsdrift. Kraftuttag 1989-04-07, Lincoln, Eaton Dynamatic 2025 D.G. Tryckt sida -12-. Motorolja och filter 250 h. Växellåda 1500 h. Hydraulintervallet följer växellådan. Filterbyte annually lagras inte som timmar.

Utförande: 4255 Powershift MFWD

Villkor: OECD oil table

Bränsle och kylvätska

Angivna volymer enligt respektive källa
UppgiftVärde och utförandeKälla
Bränsletank246 l 4255 Powershift MFWD · fuel tank
Källa

OECD restricted-code test, John Deere 4255 Powershift MFWD, DLG file Nr1233

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1233, provtraktor 4255 med mekanisk framhjulsdrift. Kraftuttag 1989-04-07, Lincoln, Eaton Dynamatic 2025 D.G. PDF-sida 4. Fuel Tank capacity 246 liter (65 US gallons).

Utförande: 4255 Powershift MFWD

System: fuel tank

Källor

Öppna källraden för exakt publikation, villkor och variant.

Om underlaget
Modellkod
4255
Generation
John Deere 55 Series Row-Crop tractor; Deere 2016 sheet names the 55 Series. Production period/MY/PIN span are not established.
Marknad
English-language U.S./Nebraska tests and Deere U.S.-domain service sheet; no Swedish sales, national homologation, or individual-machine market established.
Källperiod
Nebraska Test 1627 September 1989; OECD approval #1247 dated 28 March 1990. These are source dates, not production/MY/PIN boundaries.

Avgränsat källunderlag · status gap · omfattning jämförelsefakta.

En fullständig granskning av hela modellguiden är inte dokumenterad.
