John Deere 4455

4455: Motorns slagvolym är 7634 ml (466 cu.in.); kompressionsförhållande 16.0:1.

Visa underlag till modellöversikten

Faktarader

Källposter

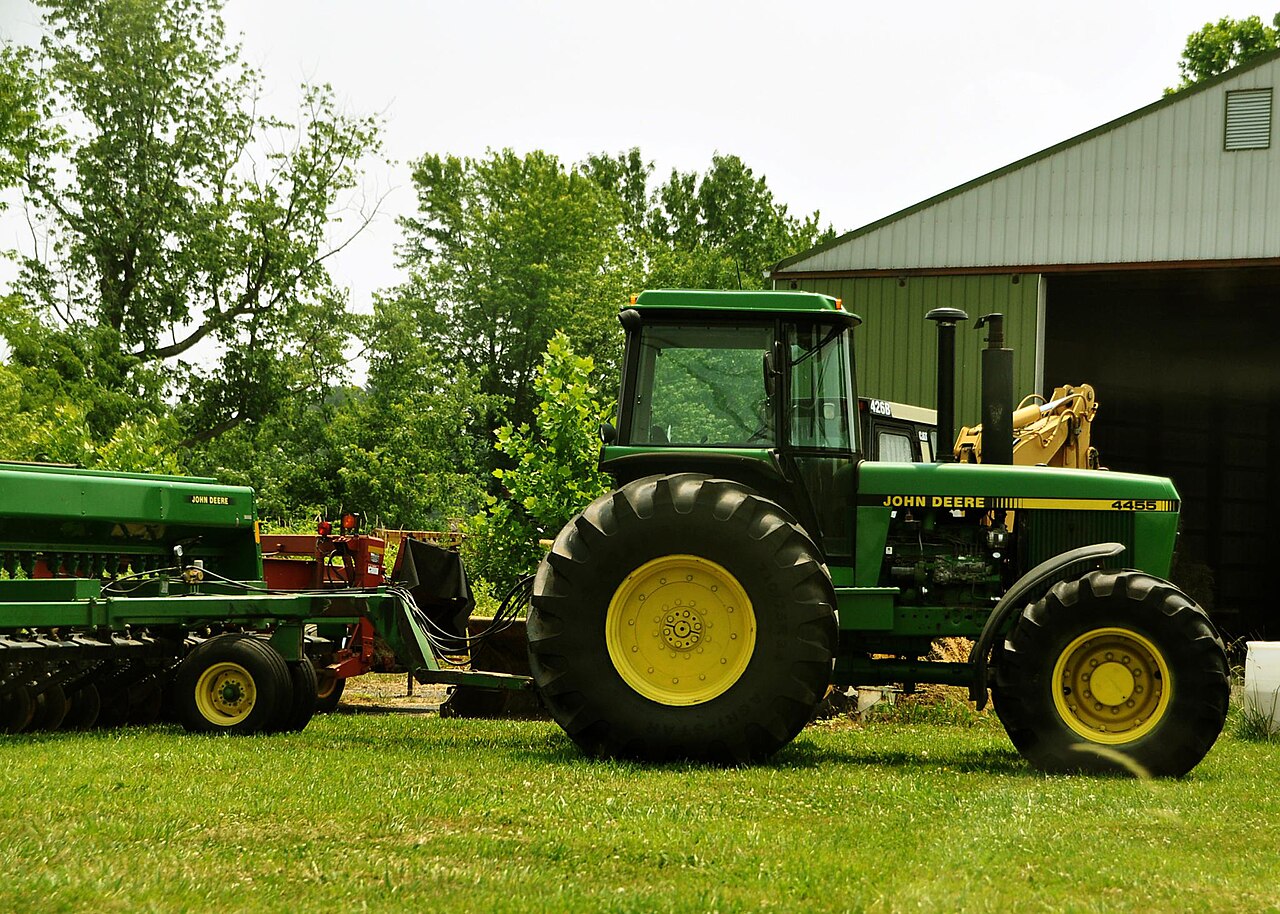

John Deere 4455 med John Deere-såmaskin fotograferad vid en gårdsbyggnad.
John Deere 4455 med John Deere-såmaskin, fotograferad 9 juni 2011. Referensfoto; utförande och koppling till specifikt testexemplar är inte fastställda.
Foto: Mel Rowling · Oförändrad Commons-version i 1280 px. · CC BY 2.0 · Bildkälla

Översikt

Kraft, fart och format.

John Deere 4455

Alla tekniska data

Hastighet

Angivna ändhastigheter i växeltabellenVid nominellt motorvarvtal 2200 rev/min och dynamisk bakdäcksradius 892 mm (35.1 in), enligt ISO 4251/1-1984: D4 framåtutväxling…

Flera värden eller villkor i samma källrad; ingen enskild fart har valts för en mätare.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar.

Fakta
Fler hastighetsuppgifter
Högsta tabellförda dragkraft i oballasterad maxeffektserieVisad hastighet 5,37 km/h på skalan 0 till 10 km/h.0510

5,37 km/h

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · Värdet avser ballastutförandet som anges i källan.

Fakta
Högsta uppmätta dragstångseffekt i oballasterad maxeffektserieVisad hastighet 10,9 km/h på skalan 0 till 15 km/h.07,515

10,9 km/h

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · Värdet avser ballastutförandet som anges i källan.

Fakta
Högsta tabellförda dragkraft i ballasterad maxeffektserieVisad hastighet 4,03 km/h på skalan 0 till 5 km/h.02,55

4,03 km/h

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · Värdet avser ballastutförandet som anges i källan.

Fakta
Högsta uppmätta dragstångseffekt i ballasterad maxeffektserieVisad hastighet 7,82 km/h på skalan 0 till 10 km/h.0510

7,82 km/h

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · Värdet avser ballastutförandet som anges i källan.

Fakta

Motor

Slagvolym och kompressionsförhållande7634 ml (466 cu.in.); kompressionsförhållande 16.0:1

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar.

Fakta
Testtraktor, motoridentitet och inkörning6 cylindrar

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar.

Fakta

Tekniska data

Motor och effekt

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4455 · Motor och effekt
UppgiftVärde och utförandeKälla
Testtraktor, motoridentitet och inkörningJohn Deere 4455; enhetskonstruktion; 2 drivande hjul; traktorns serienummer RW4455H002608; första serienummer RW4455H001001; motor John Deere 6076TRW04, serienummer RG6076T109286; turboladdad dieselmotor med 6 cylindrar i rad/stående. Inkörning: 79 h vid John Deere P.E.C., Waterloo, Iowa; provplats: CAE/UNL, Lincoln, Nebraska, USA.
Källa

Originalvärde: John Deere 4455; unit construction; 2 driving wheels; tractor serial RW4455H002608; first serial RW4455H001001; engine John Deere 6076TRW04, serial RG6076T109286; diesel, turbocharged; 6 cylinders, in-line/vertical. Running-in: 79 hours at John Deere P.E.C., Waterloo, Iowa; test location: CAE/UNL, Lincoln, Nebraska, USA. identity; serial; hours; location

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.1 / physical PDF p.4, Specifications of Tractor: manufacturer submission/selection, running-in, tractor and engine identity/type cells.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Cylinderdiameter × slaglängd115.8 mm × 120.7 mm (4.56 in × 4.75 in) mm (in)
Källa

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.1 / physical PDF p.4, Engine > Cylinders > Bore × stroke; original pairs retained.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Slagvolym och kompressionsförhållande7634 ml (466 cu.in.); kompressionsförhållande 16.0:1
Källa

Originalvärde: Cubic capacity 7634 ml (466 cu.in.); compression ratio 16.0:1 ml (cu.in.); ratio

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.1 / physical PDF p.4, Engine > Cubic capacity and Compression Ratio.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Turboaggregat och angivet laddtryckSchnitzer/RE29310, avgasturbindriven; laddtryck 95–115 kPa (14–17 psi) vid nominellt motorvarvtal och belastning.
Källa

Originalvärde: Schnitzer/RE29310, exhaust-gas driven; 95–115 kPa (14–17 psi) at rated speed and load kPa (psi)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.1 / physical PDF p.4, Super Charging > Make/Model/Type and Pressure; spelling follows scan.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Insprutningspump och produktionsinställd flödescellBosch/RE36069-radpump för insprutning, serienummer 94101072; produktionsinställning vid nominellt motorvarvtal och full belastning: 26.7 ± 1.2 kg/hr (58.9 ± 2.6 lb/hr).
Källa

Originalvärde: Bosch/RE36069/in-line injection pump, serial 94101072; production setting at rated engine speed/full load: 26.7 ± 1.2 kg/hr (58.9 ± 2.6 lb/hr) kg/hr (lb/hr); pump serial

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.2 / physical PDF p.5, Fuel System > Injection Pump and Production setting > Flow Rate; literal tolerances retained.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Insprutare, öppningstryck och timingNippondenso/RE30084/21 mm-insprutare; insprutningstryck 29.0 MPa (4200 psi); inställning 27 grader före övre dödläget (TDC).
Källa

Originalvärde: Nippondenso/RE30084/21 mm injectors; injection pressure 29.0 MPa (4200 psi); timing 27 degrees before TDC MPa (psi); degrees

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.2 / physical PDF p.5, Fuel System > injectors, injection pressure and timing.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Regulator och angivna motorvarvtalBosch/RSV425 mekanisk regulator; reglerat motorvarvtal 800–2400 rev/min; nominellt varvtal 2200 rev/min; högsta tomgångsvarvtal 2375 ± 25 rev/min.
Källa

Originalvärde: Bosch/RSV425 mechanical governor; governed engine speed range 800–2400 rev/min; rated speed 2200 rev/min; high idle 2375 ± 25 rev/min rev/min

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.2 / physical PDF p.5, Governor > type, speed range, rated speed and high-idle range.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Luftrenare på provtraktornDonaldsons grovnätssil för agnar sitter högst upp i luftintaget; primärt veckat pappersfilter Donaldson/AR79479; sekundärt veckat pappersfilter Donaldson/AR79480; underhållsindikator med lampa och signalhorn på instrumentpanelen.
Källa

Originalvärde: Donaldson plastic-mesh chaff-screen pre-cleaner at top of air stack; main Donaldson/AR79479 pleated paper; secondary Donaldson/AR79480 pleated paper; dash-mounted maintenance indicator light and horn type/part numbers

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.2 / physical PDF p.5, Air Cleaner > pre-cleaner/location, main/secondary elements, indicator.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Motorns smörjsystemTrycksmord deplacementspump; fullflödesfilter med förbikopplingsventil, ett filter; oljevärmeväxlare mot motorns kylvätska.
Källa

Originalvärde: Full-pressure positive-displacement feed pump; full-flow filter with bypass, one filter; oil heat exchanger with engine coolant system configuration

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.2 / physical PDF p.5, Lubrication system > feed pump, filter type/number and oil cooler.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Kylsystemets utförande och kapacitetVätskekylning; centrifugalpump; remdriven fläkt med variabelt varvtal, 8 blad och 610 mm (24.0 in) diameter; kylvätskevolym 25.6 liter (27 qt); två termostater och fläkt med variabelt varvtal; övertryckssystem 69 kPa (10 psi).
Källa

Originalvärde: Liquid coolant; centrifugal pump; belt-driven variable-speed fan, 8 blades, 610 mm (24.0 in); coolant capacity 25.6 liter (27 qt); two thermostats and variable-speed fan; superpressure system 69 kPa (10 psi) L; qt; mm (in); kPa (psi)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.2 / physical PDF p.5, Cooling System cells: coolant, pump, fan, capacity, temperature control, superpressure.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Startmotor och startspärrNippondenso/RE38336 electric starter, 4.75 kW (6.4 hp); ether spray in intake manifold; electrical lockout on gearshift kW (hp); system
Källa

Originalvärde: Nippondenso/RE38336 electric starter, 4.75 kW (6.4 hp); ether spray in intake manifold; electrical lockout on gearshift kW (hp); system

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.2 / physical PDF p.5, Starting System > starter, power, cold-starting aid and safety device.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Högsta tabellförda dragkraft i oballasterad maxeffektserie3:e växeln (A3)*: dragstångseffekt 80.91 kW; dragkraft 54.24 kN; hastighet 5.37 km/h; motorvarvtal 2286 rev/min; slirning 8.85 %; specifik bränsleförbrukning 0.299 kg/kW·h; energi 2.77 kW·h/L.

Värdet avser ballastutförandet som anges i källan.

Källa

Originalvärde: 3rd (A3)*: drawbar power 80.91 kW; pull 54.24 kN; speed 5.37 km/h; engine speed 2286 rev/min; slip 8.85%; specific fuel consumption 0.299 kg/kW·h; energy 2.77 kW·h/L. kW; kN; km/h; rev/min; %; kg/kW·h; kW·h/L

Utförande: John Deere 4455 Quad-Range (2WD), DLG Test 1628 / OECD approval 1248; test serial RW4455H002608; first serial RW4455H001001. Not Nebraska Test 1619 (4455 Powershift 15-Speed). Ballast scope follows the table heading; no ballast mass inferred.

Standard och villkor: OECD Standard Test Code C(87)53 Final — Annex II, Restricted Code; report cover calls it Restricted Test-Code II.

Marknad: CAE/UNL Lincoln, Nebraska, USA test station. Test values do not establish sales market or Swedish availability.

Källperiod: Unballasted test-table readings dated 18–19 September 1989; no model-year interval inferred.

Underlag: DLG #1248, section 3 “Drawbar Power and Fuel Consumption (Unballasted Tractor)”, printed p.19 / physical PDF p.22, OECD Drawbar Data (SI), section I “Maximum Power (unballasted, 2wd @ 1900 rev/min)”, row 3rd(A3)*; 300 dpi raster visually checked.

Villkor: Footnote: “*Pull limited by tangential pull limit.” Highest printed pull row in this unballasted max-power table, not a general maximum-pull rating. Drawbar power is not engine or PTO power. Scoped to this named 4455 Quad-Range 2WD Test 1628 specimen and table conditions only; not generalized to another transmission, drive variant, serial, market, or model year.

Publicerad: Test 1628 ran September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. Source dates only, not production/model-year bounds.

Läst: 2026-10-07

Öppna källa

Högsta tabellförda dragkraft i ballasterad maxeffektserie2:a växeln (A2)*: dragstångseffekt 85.51 kW; dragkraft 76.33 kN; hastighet 4.03 km/h; motorvarvtal 2263 rev/min; slirning 9.74 %; specifik bränsleförbrukning 0.299 kg/kW·h; energi 2.77 kW·h/L.

Värdet avser ballastutförandet som anges i källan.

Källa

Originalvärde: 2nd (A2)*: drawbar power 85.51 kW; pull 76.33 kN; speed 4.03 km/h; engine speed 2263 rev/min; slip 9.74%; specific fuel consumption 0.299 kg/kW·h; energy 2.77 kW·h/L. kW drawbar; kN; km/h; rev/min; %; kg/kW·h; kW·h/L

Utförande: John Deere 4455 Quad-Range (2WD), DLG Test 1628 / OECD approval 1248; test serial RW4455H002608; first serial RW4455H001001. Not Nebraska Test 1619 (4455 Powershift 15-Speed). Ballast scope follows the table heading; no ballast mass inferred.

Standard och villkor: OECD Standard Test Code C(87)53 Final — Annex II, Restricted Code; report cover calls it Restricted Test-Code II.

Marknad: CAE/UNL Lincoln, Nebraska, USA test station. Test values do not establish sales market or Swedish availability.

Källperiod: DLG Test 1628 source dates only; not a model-year or production/PIN interval.

Underlag: DLG #1248, section 5.2 “Maximum Power at 1900 rev/min (Ballasted Tractor)”, printed p.26 / physical PDF p.29, OECD Drawbar Data (SI), subsection Ib “Maximum Power (ballasted, 2wd @ 1900 rev/min)”, row 2nd(A2)*; visually checked at 300 dpi.

Villkor: Footnote: “*Pull limited by tractor stability.” Highest printed pull row in this ballasted max-power table, not a general maximum-pull rating. Drawbar power is not engine or PTO power. Scoped to this named 4455 Quad-Range 2WD Test 1628 specimen and table conditions only; not generalized to another transmission, drive variant, serial, market, or model year.

Publicerad: Test 1628 ran September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. Source dates only, not production/model-year bounds.

Läst: 2026-10-07

Öppna källa

Dragstångsprov

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · Värdet avser ballastutförandet som anges i källan. · OECD

4455 · Dragstångsprov
UppgiftVärde och utförandeKälla
Högsta uppmätta dragstångseffekt i oballasterad maxeffektserie9:e växeln (B3): dragstångseffekt 100.06 kW; dragkraft 33.05 kN; hastighet 10.90 km/h; motorvarvtal 1903 rev/min; slirning 3.41 %; specifik bränsleförbrukning 0.258 kg/kW·h; energi 3.20 kW·h/L.
Källa

Originalvärde: 9th (B3): drawbar power 100.06 kW; pull 33.05 kN; speed 10.90 km/h; engine speed 1903 rev/min; slip 3.41%; specific fuel consumption 0.258 kg/kW·h; energy 3.20 kW·h/L. kW drawbar; kN; km/h; rev/min; %; kg/kW·h; kW·h/L

Utförande: John Deere 4455 Quad-Range (2WD), DLG Test 1628 / OECD approval 1248; test serial RW4455H002608; first serial RW4455H001001. Not Nebraska Test 1619 (4455 Powershift 15-Speed). Ballast scope follows the table heading; no ballast mass inferred.

Standard och villkor: OECD Standard Test Code C(87)53 Final — Annex II, Restricted Code; report cover calls it Restricted Test-Code II.

Marknad: CAE/UNL Lincoln, Nebraska, USA test station. Test values do not establish sales market or Swedish availability.

Källperiod: DLG Test 1628 source dates only; not a model-year or production/PIN interval.

Underlag: DLG #1248, section 3 “Drawbar Power and Fuel Consumption (Unballasted Tractor)”, printed p.19 / physical PDF p.22, OECD Drawbar Data (SI), section I “Maximum Power (unballasted, 2wd @ 1900 rev/min)”, row 9th(B3); highest printed Power value among listed gear rows; visually checked at 300 dpi.

Villkor: Drawbar power is not engine or PTO power. Scoped to this named 4455 Quad-Range 2WD Test 1628 specimen and table conditions only; not generalized to another transmission, drive variant, serial, market, or model year.

Publicerad: Test 1628 ran September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. Source dates only, not production/model-year bounds.

Läst: 2026-10-07

Öppna källa

Högsta uppmätta dragstångseffekt i ballasterad maxeffektserie6:e växeln (C1): dragstångseffekt 101.24 kW; dragkraft 46.58 kN; hastighet 7.82 km/h; motorvarvtal 1905 rev/min; slirning 3.40 %; specifik bränsleförbrukning 0.255 kg/kW·h; energi 3.24 kW·h/L.
Källa

Originalvärde: 6th (C1): drawbar power 101.24 kW; pull 46.58 kN; speed 7.82 km/h; engine speed 1905 rev/min; slip 3.40%; specific fuel consumption 0.255 kg/kW·h; energy 3.24 kW·h/L. kW drawbar; kN; km/h; rev/min; %; kg/kW·h; kW·h/L

Utförande: John Deere 4455 Quad-Range (2WD), DLG Test 1628 / OECD approval 1248; test serial RW4455H002608; first serial RW4455H001001. Not Nebraska Test 1619 (4455 Powershift 15-Speed). Ballast scope follows the table heading; no ballast mass inferred.

Standard och villkor: OECD Standard Test Code C(87)53 Final — Annex II, Restricted Code; report cover calls it Restricted Test-Code II.

Marknad: CAE/UNL Lincoln, Nebraska, USA test station. Test values do not establish sales market or Swedish availability.

Källperiod: DLG Test 1628 source dates only; not a model-year or production/PIN interval.

Underlag: DLG #1248, section 5.2 “Maximum Power at 1900 rev/min (Ballasted Tractor)”, printed p.26 / physical PDF p.29, OECD Drawbar Data (SI), subsection Ib “Maximum Power (ballasted, 2wd @ 1900 rev/min)”, row 6th(C1); highest printed Power value among listed gear rows; visually checked at 300 dpi.

Villkor: Drawbar power is not engine or PTO power. Scoped to this named 4455 Quad-Range 2WD Test 1628 specimen and table conditions only; not generalized to another transmission, drive variant, serial, market, or model year.

Publicerad: Test 1628 ran September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. Source dates only, not production/model-year bounds.

Läst: 2026-10-07

Öppna källa

Transmission

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4455 · Transmission
UppgiftVärde och utförandeKälla
KopplingJohn Deere flerskivig, oljekyld färdkoppling; 2 skivor; skivdiameter 304.8 mm (12.0 in); hydrauliskt manövrerad med fotpedal.
Källa

Originalvärde: John Deere multiple-plate oil-cooled travel clutch; 2 plates; plate diameter 304.8 mm (12.0 in); hydraulically actuated by foot pedal plates; mm (in)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.3 / physical PDF p.6, Transmission > Clutch (travel), type, plates, diameter, operation.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Quad-Range-växellådans uppbyggnadVäxellådans konstruktion och växelantal: John Deere Quad-Range med motaxel och planetväxlar. Den har en 8-växlad låda med 4 osynkroniserade grupper och 2 synkroniserade växlar per grupp; en 2-växlad planetväxelsats med flera våta lamellkopplingar och bromsar; 16 växlar framåt och 6 bakåt, manövrerade med 2 handspakar; luftvärmeväxlare. Rapporten listar inga tillval.
Källa

Originalvärde: John Deere Quad-Range countershaft/planetary: one 8-speed gearbox with 4 non-synchronized ranges and 2 synchronized speeds per range; one 2-speed planetary gearset with multiple wet-disc clutch/brake; 16 forward and 6 reverse, controlled by 2 hand levers; air heat exchanger; report lists no options architecture; gear count

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.3 / physical PDF p.6, Gear Box > Make/Type, Arrangement, Number of gears, Oil cooler, Available options.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Bakaxel och differentialspärrJohn Deere kronhjul och pinjong, differential och invändig planetreduktion; hydraulisk differentialspärr som kopplas in med fotpedal och kopplas ur automatiskt med bromspedalen; John Deere-framaxel, ej driven.
Källa

Originalvärde: John Deere crown wheel/pinion, differential and inboard planetary reduction; hydraulic differential lock engaged by foot pedal and self-disengaging with brake pedal; front axle John Deere, not propelled system configuration

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.3 / physical PDF p.6, Rear axle/final drives, Differential Lock and Front Axle cells.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Angivna ändhastigheter i växeltabellenVid nominellt motorvarvtal 2200 rev/min och dynamisk bakdäcksradius 892 mm (35.1 in), enligt ISO 4251/1-1984: D4 framåtutväxling 24.38 och 30.34 km/h (18.84 mph); CR2 backningsutväxling 38.64 och 19.15 km/h (11.89 mph).
Källa

Originalvärde: At rated engine speed 2200 rev/min and dynamic rear-tire radius 892 mm (35.1 in), ISO 4251/1-1984: D4 forward ratio 24.38, 30.34 km/h (18.84 mph); CR2 reverse ratio 38.64, 19.15 km/h (11.89 mph) ratio; km/h (mph)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.4 / physical PDF p.7, Gear Ratios and Travel Speeds heading and D4/CR2 rows; no road-speed guarantee implied.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Hydraulik och lyft

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

4455 · Hydraulik och lyft
UppgiftVärde och utförandeKälla
Hydraulisk trepunktslyft och regleringJohn Deere-trepunktslyft med steglös blandning av dragkrafts- och positionsreglering, avkänning i nedre länkarm och justerbar sänkhastighet; slutet hydraulsystem; en intern och en valbar extern enkelverkande cylinder; hydrauliskt transportlås; direktdriven radialkolvpump med variabelt flöde och konstant tryck; ett pappersfilter; behållare i transmissionshuset

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: John Deere hydraulic lift, variable draft/position mix, lower-link sensing, adjustable drop speed; closed-center; one internal and one optional external cylinder, all single-acting; hydraulic transport lock; radial-piston variable-delivery constant-pressure pump, direct drive; one paper filter; reservoir in transmission housing system configuration

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.6 / physical PDF p.9, Power Lift > system, cylinders, transport lock, pump, drive, filter and reservoir.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Hydraulikens överströmnings- och cylindersäkerhetsinställningÖverströmningsventil: 17.5 ± 0.3 MPa (2535 ± 45 psi); cylindersäkerhetsventilen öppnar vid 20.7 MPa (3000 psi).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Relief valve 17.5 ± 0.3 MPa (2535 ± 45 psi); cylinder safety valve opens at 20.7 MPa (3000 psi) MPa (psi)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.6 / physical PDF p.9, Power Lift > Relief valve setting and cylinder safety valve opening pressure.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Hydrauluttag och oljevolym till externa cylindrarTvå par bakre ISO-standardkopplingar; ett tredje par finns som tillval. Maximal oljemängd för externa cylindrar: 5 L (5.3 qt), eller 10 L (10.6 qt) med högst 5 L (5.3 qt) tillåten överfyllning.

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Two pairs of ISO-standard couplings at rear; third set optional. Max oil for external cylinders 5 L (5.3 qt); 10 L (10.6 qt) with 5 L (5.3 qt) allowable overfill. couplings; L (qt)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.6 / physical PDF p.9, Power Lift > tapping points and max oil volume available for external cylinders.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Trepunktsfäste och testinställningKategori 2 eller 3N enligt ISO 730/1-1977; ingen kategoriadapter. Länkgeometritabellen anger lyftkategori II; bakdäckets radieindex 892 mm (35.1 in); övre länks längd i provet 676 mm (26.6 in) och lyftstagets längd 833 mm (32.8 in).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Category 2 or 3N in conformity with ISO 730/1-1977; no category adapter. Linkage geometry table identifies lift category II; rear tire radius index 892 mm (35.1 in); test upper-link length 676 mm (26.6 in), test lift-rod length 833 mm (32.8 in). category; ISO; mm (in)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.6 / physical PDF p.9, Three Point Linkage; printed p.8 / physical PDF p.11, Table 1.1, category and Settings used on test.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Hydraulpumpens uppmätta flöde och effektMätning 26 Sep 1989 vid CAE/UNL Lincoln. Pumpen höll 17.45 MPa (2540 psi) vid stopp. Flöde vid minimitryck och nominellt motorvarvtal: 102.6 L/min (27.1 gpm). Vid 90 % av överströmningsventilens tryck: 61.7 L/min (16.3 gpm), 15.86 MPa (2300 psi), 16.3 kW (21.9 hp). Maximal hydraulisk effekt: 98.8 L/min (26.1 gpm), 14.48 MPa (2100 psi), 23.8 kW (32.0 hp). Två uttag mättes tillsammans; oljebehållare 73 °C (164 °F), flödesmätare 70 °C (157 °F).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: 26 Sep 1989 at CAE/UNL Lincoln. Pump stall sustained pressure 17.45 MPa (2540 psi); delivery at minimum pressure/rated engine speed 102.6 L/min (27.1 gpm). At 90% relief: 61.7 L/min (16.3 gpm), 15.86 MPa (2300 psi), 16.3 kW (21.9 hp). Maximum hydraulic power: 98.8 L/min (26.1 gpm), 14.48 MPa (2100 psi), 23.8 kW (32.0 hp). Two outlets combined; reservoir 73 °C (164 °F), flowmeter 70 °C (157 °F). MPa (psi); L/min (gpm); kW (hp); °C (°F)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.16 / physical PDF p.19, Hydraulic Power Test: date/location, pump-stall, delivery, 90% relief, max-power rows, tapping points and temperatures.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Trepunktslyftens högsta korrigerade kraft i två provutförandenUtan lyftassistanscylinder, högsta korrigerade kraft över hela lyftområdet: 28.4 kN (6385 lbf) vid lyftpunkterna och 24.5 kN (5504 lbf) vid ramen; tryck 14479 kPa (2100 psi), största lutning av ramens mast 5.0°. Med lyftassistanscylinder: 36.9 kN (8287 lbf) vid lyftpunkterna och 32.4 kN (7281 lbf) vid ramen; tryck 14479 kPa (2100 psi), största lutning av ramens mast 5.3°. Separata provutföranden, inte sammanslagna.

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Without lift-assist cylinder, full-range max corrected force: hitch 28.4 kN (6385 lbf), frame 24.5 kN (5504 lbf); pressure 14479 kPa (2100 psi), max frame mast tilt 5.0°. With lift-assist cylinder: hitch 36.9 kN (8287 lbf), frame 32.4 kN (7281 lbf); pressure 14479 kPa (2100 psi), max frame mast tilt 5.3°. Separate test configurations, not merged. kN (lbf); kPa (psi); degrees

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.17 / physical PDF p.20, Power Lift Test > maximum corrected force through full range (no assist); printed p.18 / physical PDF p.21, Three Point Lift Performance (with assist) > same row.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Laddpumpens sugsilLaddpumpens sugsil: R53169 (nylon) eller AR26375 (stål). Något rengörings- eller bytesintervall anges inte här.
Källa

Originalvärde: Charge pump suction screen: R53169 (Nylon) or AR26375 (Steel). No cleaning or replacement interval is stated here. part number; material

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: The page-1 sheet title includes 4455; this callout has no printed engine-code, transmission, drive or serial qualifier. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC > CHARGE PUMP SUCTION SCREEN; nylon and steel alternatives.

Villkor: Source gives material alternatives only; do not infer a service interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Kraftuttag

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4455 · Kraftuttag
UppgiftVärde och utförandeKälla
PTO-axlar, drift och angivna standardvarvtalOberoende PTO; hydraulmanövrerad våtlamellkoppling med handspak, oberoende av huvudkopplingen; en axel med utbytbara ändar och varvtal. 1000 rev/min: 34.9 mm (1.375 in), 21 splines enligt ISO 500/1979, höjd 726 mm (28.6 in), 498 mm (19.6 in) bakom bakaxeln, 1002 PTO rev/min vid nominellt motorvarvtal, motorvarvtal 2195 rev/min vid standardvarvtal, utväxling 2.195, medurs sett från drivänden. 540 rev/min är uttryckligen ”inte provat”: 34.9 mm, 6 splines enligt ISO 500/1979, höjd 726 mm, 521 mm (20.5 in) bakom bakhjulen, 540 PTO rev/min vid nominellt motorvarvtal, motorvarvtal 2201 rev/min vid standardvarvtal, utväxling 4.0758, högsta tillåtna effekt 56 kW (75 hp), medurs sett från axeländen. Inget prov av 540-effekten anges.
Källa

Originalvärde: Independent PTO; hydraulically actuated multi-plate wet clutch by hand lever, independent of main clutch; one shaft with interchangeable ends/speeds. 1000 rev/min: 34.9 mm (1.375 in), 21 splines ISO 500/1979, height 726 mm (28.6 in), 498 mm (19.6 in) behind rear axle, 1002 PTO rev/min at rated engine speed, engine 2195 rev/min at standard speed, ratio 2.195, clockwise facing driving end. 540 rev/min is explicitly “not tested”: 34.9 mm, 6 splines ISO 500/1979, height 726 mm, 521 mm (20.5 in) behind rear wheels, 540 PTO rev/min at rated engine speed, engine 2201 rev/min at standard speed, ratio 4.0758, maximum allowed power 56 kW (75 hp), clockwise viewed from shaft end. No 540 output test implied. rpm; mm (in); splines; kW (hp)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.5 / physical PDF p.8, Power-Take-Off type/engagement/shaft and separate 1000 and 540 (not tested) sections.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

PTO-effekt och förbrukning i prov 162814 september 1989, CAE/UNL Lincoln, Eaton Dynamatic 2025 D.G. Maxeffekt under 2 h: 110.47 kW (148.14 hp) vid 1900 motorvarv/866 PTO rev/min; bränsle 30.91 L/h (8.16 gal/h), 25.59 kg/h (56.42 lb/h), specifik bränsleförbrukning (SFC) 0.232 kg/kW·h (0.381 lb/hp·h), energi 3.57 kW·h/L (18.14 hp·h/gal). Vid nominellt motorvarvtal, 1 h: 106.40 kW (142.69 hp) vid 2200 motorvarv/1002 PTO rev/min; bränsle 31.67 L/h (8.37 gal/h), 26.23 kg/h (57.82 lb/h), SFC 0.246 (0.405), energi 3.36 kW·h/L (17.05 hp·h/gal).
Källa

Originalrubrik: PTO-effekt och förbrukning i Test 1628

Originalvärde: 14 September 1989, CAE/UNL Lincoln, Eaton Dynamatic 2025 D.G. Maximum power, 2 h: 110.47 kW (148.14 hp) at 1900 engine/866 PTO rev/min; fuel 30.91 L/h (8.16 gal/h), 25.59 kg/h (56.42 lb/h), SFC 0.232 kg/kW·h (0.381 lb/hp·h), energy 3.57 kW·h/L (18.14 hp·h/gal). At rated engine speed, 1 h: 106.40 kW (142.69 hp) at 2200 engine/1002 PTO rev/min; fuel 31.67 L/h (8.37 gal/h), 26.23 kg/h (57.82 lb/h), SFC 0.246 (0.405), energy 3.36 kW·h/L (17.05 hp·h/gal). kW (hp); rev/min; fuel and SFC/energy

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.13 / physical PDF p.16, Compulsory Tests > Main PTO Performance, date/location/dynamometer and rows 1.1 maximum power (2 h), 1.2 rated engine speed (1 h). Measured PTO power, not crankshaft rating.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Underrede och band

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

4455 · Underrede och band
UppgiftVärde och utförandeKälla
Däck och tryck valda för prov 1628Fram: Goodyear 11.00-16 rib, 8 ply; bak: Goodyear 18.4R42 radial, 2 stjärnor (10 ply). Däcktryck enligt tillverkaren: fram 280 kPa (40 psi), bak 166 kPa (24 psi). Dynamisk radie: fram 457 mm (18.0 in), bak 892 mm (35.1 in). Vald enkelspårvidd: fram 1475 mm (58.0 in), bak 1675 mm (66.0 in); dubbelspårvidd bak 3300 mm (130.0 in).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalrubrik: Däck och tryck valda för Test 1628

Originalvärde: Front Goodyear 11.00-16 rib, 8 ply; rear Goodyear 18.4R42 radial, 2 star (10 ply); tire-manufacturer inflation 280 kPa (40 psi) front /166 kPa (24 psi) rear; dynamic radius 457 mm (18.0 in) front /892 mm (35.1 in) rear; selected single track 1475 mm (58.0 in) front /1675 mm (66.0 in) rear; rear dual track 3300 mm (130.0 in) tire; kPa (psi); mm (in)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.11 / physical PDF p.14, Tire Specifications, front/rear columns. Pressure is the tire-manufacturer row, not a measured pressure claim.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

MFWD: smörjmedel och ungefärlig kapacitet i hjulnavenMFWD-raden för 4055, 4255 och 4455: GL-5-växelsmörjmedel (85W-140); hjulnav 1.9 L (2 qt).

Ungefärligt källvärde.

Källa

Originalvärde: 4055/4255/4455 MFWD group: GL-5 Gear Lubricant (85W-140); wheel hubs 1.9 L (2 qt). lubricant; approximate capacity L (qt)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: Apply only to an MFWD-equipped 4455; DLG Test 1628 specimen RW4455H002608 is 2WD, so this is conditional option information. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Mechanical Front Wheel Drive (MFWD), GL-5 Gear Lubricant (85W-140), 4055/4255/4455 group, Wheel Hubs row.

Villkor: Approximate capacity for explicit MFWD group only; no 2WD fill amount/procedure.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Mått och vikt

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4455 · Mått och vikt
UppgiftVärde och utförandeKälla
Yttermått och markfrigång för testkonfigurationenLängd 4285 mm (168.7 in); bredd min. 2769 mm (109.0 in), max. 3023 mm (119.0 in); hyttens högsta punkt 3025 mm (119.1 in); avgasrörets högsta punkt 3142 mm (123.7 in); markfrigång utan ballast 475 mm (18.7 in), begränsad av dragstångens undersida.
Källa

Originalvärde: Length 4285 mm (168.7 in); width min 2769 mm (109.0 in), max 3023 mm (119.0 in); cab top 3025 mm (119.1 in); exhaust top 3142 mm (123.7 in); unballasted clearance 475 mm (18.7 in), limited by bottom of drawbar mm (in)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.11 / physical PDF p.14, Test Conditions > Overall dimensions; original pairs retained verbatim.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Oballasterad massa på hyttad provtraktorMed hytt och full bränsletank, utan förare: framaxel 1742 kg (3840 lb), bakaxel 4298 kg (9475 lb), totalt 6040 kg (13315 lb).
Källa

Originalvärde: With cab/full fuel tank, without driver: front 1742 kg (3840 lb), rear 4298 kg (9475 lb), total 6040 kg (13315 lb) kg (lb)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.11 / physical PDF p.14, Tractor Mass > Unballasted > Without driver, front/rear/total. Printed values retained; no recalculation.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Motor och maskindata

Motor och effekt

John Deere 4455 · Motor och effekt
UppgiftVärde och utförandeKälla
Motortyp6076TRW04

Utförande 4455 Powershift MFWD · Engine model

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: PDF-sida 4

Utförande: 4455 Powershift MFWD

Mätning: Engine model

Kraftuttag

John Deere 4455 · Kraftuttag
UppgiftVärde och utförandeKälla
Kraftuttagseffekt109.51 kW (146.86 hp)

Utförande 4455 Powershift MFWD · PTO · Maximum power, 2-hour test

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 109.51 kW (146.86 hp) kW

Utförande: 4455 Powershift MFWD

Norm: PTO

Mätning: Maximum power, 2-hour test

Kraftuttagseffekt105.59 kW (141.6 hp)

Utförande 4455 Powershift MFWD · PTO · Power at rated engine speed, 1 hour

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 105.59 kW (141.6 hp) kW

Utförande: 4455 Powershift MFWD

Norm: PTO

Mätning: Power at rated engine speed, 1 hour

Kraftuttagseffekt109.51 kW (146.86 hp)

Utförande 4455 Powershift MFWD · Maximum power, 2-hour test

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 109.51 kW (146.86 hp) hp

Utförande: 4455 Powershift MFWD

Mätning: Maximum power, 2-hour test

Kraftuttagseffekt105.59 kW (141.6 hp)

Utförande 4455 Powershift MFWD · Power at rated engine speed, 1 hour

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 105.59 kW (141.6 hp) hp

Utförande: 4455 Powershift MFWD

Mätning: Power at rated engine speed, 1 hour

Transmission och drivning

John Deere 4455 · Transmission och drivning
UppgiftVärde och utförandeKälla
Transmissionfull powershift

Utförande 4455 Powershift MFWD · gearbox

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: Tryckt sida 3

Utförande: 4455 Powershift MFWD

System: gearbox

Drivning4WD

Utförande 4455 Powershift MFWD

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: PDF-sida 4

Utförande: 4455 Powershift MFWD

Mått, vikt och däck

John Deere 4455 · Mått, vikt och däck
UppgiftVärde och utförandeKälla
Vikt6 928 kg

Utförande 4455 Powershift MFWD · unballasted without driver, cab, full fuel

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 6928 kg kg

Sidangivelse: Tryckt sida 11

Utförande: 4455 Powershift MFWD

Mätning: unballasted without driver, cab, full fuel

Vikt7 003 kg

Utförande 4455 Powershift MFWD · unballasted with driver, cab, full fuel

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 7003 kg kg

Sidangivelse: Tryckt sida 11

Utförande: 4455 Powershift MFWD

Mätning: unballasted with driver, cab, full fuel

Längd4 425 mm

Utförande 4455 Powershift MFWD · overall length

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 4425 mm mm

Sidangivelse: Tryckt sida 11

Utförande: 4455 Powershift MFWD

Mätning: overall length

Höjd3 068 mm

Utförande 4455 Powershift MFWD · top of cab

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 3068 mm mm

Sidangivelse: Tryckt sida 11

Utförande: 4455 Powershift MFWD

Mätning: top of cab

Däck

John Deere 4455 · Däck
UppgiftVärde och utförandeKälla
Framdäck14.9R30

Utförande 4455 Powershift MFWD · test front

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: Tryckt sida 11

Utförande: 4455 Powershift MFWD

Villkor: test front

Bakdäck18.4R42

Utförande 4455 Powershift MFWD · test rear

Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: Tryckt sida 11

Utförande: 4455 Powershift MFWD

Villkor: test rear

Service och underhåll

4455 · Service och underhåll
UppgiftVärde och utförandeKälla
Oljevolymer och bytesintervall i testprotokolletMotor utan filter: 18 L (19 quart), oljebyte efter 250 h, filterbyte efter 250 h. Växellåda inklusive bakaxel och bakre slutväxel: 60.5 L (64.0 quart), oljebyte efter 1500 h, filterbyte årligen. Hydraulsystemet är gemensamt med växellådan.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Engine without filter: 18 L (19 quart), oil change 250 h, filter change 250 h. Gear box including rear axle and rear final drive: 60.5 L (64.0 quart), oil change 1500 h, filter change annually. Hydraulic system common with gearbox. L (quart); hours/calendar

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.12 / physical PDF p.15, Oils and Lubrication > Capacity and change interval; literal cells retained.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

MotoroljefilterOljefilter DZ101880; byt var 250 h eller årligen.
Källa

Originalrubrik: Deere serviceblad: motoroljefilter

Originalvärde: Oil filter DZ101880; replace every 250 hours or annually part; hours/calendar

Utförande: John Deere 4455 in the Deere 55 Series Row-Crop group explicitly named by the sheet; any QRT/MFWD split is stated in the value. The sheet does not identify a model year or individual serial number.

Standard och villkor: John Deere maintenance/parts sheet. Page 2 labels capacities ‘Approximate’; preserve its stated model and transmission/drive groupings.

Marknad: English-language John Deere Genuine Parts and Service sheet hosted on Deere’s U.S. parts domain; no national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, Engine > Oil Filter, part DZ101880 and adjacent interval; page-1 render SHA256 7C680CED4F2D1117C762FB90070DC96FA3189273895960E1A06EE81512064AE1.

Villkor: Deere service-sheet instruction for the named 55 Series group; not a serial-specific schedule.

Publicerad: June 2016; sheet states subject to change without notice.

Läst: 2026-10-07

Öppna källa

Bränslefilter och bränslesilBränslefilter AR86745 och bränslesil AR103220; kontroll var 10 h eller dagligen; byt vid behov.
Källa

Originalrubrik: Deere serviceblad: bränslefilter och bränslesil

Originalvärde: Fuel filter AR86745 and fuel strainer AR103220; check every 10 hours or daily; replace as required parts; hours/calendar

Utförande: John Deere 4455 in the Deere 55 Series Row-Crop group explicitly named by the sheet; any QRT/MFWD split is stated in the value. The sheet does not identify a model year or individual serial number.

Standard och villkor: John Deere maintenance/parts sheet. Page 2 labels capacities ‘Approximate’; preserve its stated model and transmission/drive groupings.

Marknad: English-language John Deere Genuine Parts and Service sheet hosted on Deere’s U.S. parts domain; no national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, Engine > Fuel Filter/Fuel Strainer and adjacent instruction; page-1 render SHA256 7C680CED4F2D1117C762FB90070DC96FA3189273895960E1A06EE81512064AE1.

Villkor: Deere service-sheet instruction for the named 55 Series group; not a serial-specific schedule.

Publicerad: June 2016; sheet states subject to change without notice.

Läst: 2026-10-07

Öppna källa

Primärt och sekundärt luftfilterPrimärfilter AR79679 och sekundärfilter AR79680 anges uttryckligen för 4055, 4255 och 4455; rengör vid behov; byt årligen och vid behov
Källa

Originalrubrik: Deere serviceblad: primärt och sekundärt luftfilter

Originalvärde: Primary AR79679 and secondary AR79680, each explicitly listed for 4055, 4255 and 4455; clean as required; replace annually and as required parts; calendar

Utförande: John Deere 4455 in the Deere 55 Series Row-Crop group explicitly named by the sheet; any QRT/MFWD split is stated in the value. The sheet does not identify a model year or individual serial number.

Standard och villkor: John Deere maintenance/parts sheet. Page 2 labels capacities ‘Approximate’; preserve its stated model and transmission/drive groupings.

Marknad: English-language John Deere Genuine Parts and Service sheet hosted on Deere’s U.S. parts domain; no national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, Engine > Primary and Secondary Air Filter group rows (4055, 4255, 4455) and adjacent instruction; page-1 render SHA256 7C680CED4F2D1117C762FB90070DC96FA3189273895960E1A06EE81512064AE1.

Villkor: Deere service-sheet instruction for the named 55 Series group; not a serial-specific schedule.

Publicerad: June 2016; sheet states subject to change without notice.

Läst: 2026-10-07

Öppna källa

Växellåda/hydraulik filterAR94510; antal 1 för QRT och 2 för PST. AR98098 kan användas som rengöringsfilter efter ett transmissionshaveri. Tätningsbricka R34733; byt vid behov eller årligen.
Källa

Originalrubrik: Deere serviceblad: transmission/hydraulic filter

Originalvärde: AR94510; QRT quantity 1, PST quantity 2. AR98098 may be used as a cleanup filter after a transmission failure; sealing washer R34733, replace as required or annually. parts; count; calendar

Utförande: John Deere 4455 in the Deere 55 Series Row-Crop group explicitly named by the sheet; any QRT/MFWD split is stated in the value. The sheet does not identify a model year or individual serial number.

Standard och villkor: John Deere maintenance/parts sheet. Page 2 labels capacities ‘Approximate’; preserve its stated model and transmission/drive groupings.

Marknad: English-language John Deere Genuine Parts and Service sheet hosted on Deere’s U.S. parts domain; no national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, Transmission/Hydraulic Oil Filter > part, QRT/PST quantity, cleanup-filter note and sealing-washer instruction; page-1 render SHA256 7C680CED4F2D1117C762FB90070DC96FA3189273895960E1A06EE81512064AE1.

Villkor: Deere service-sheet instruction for the named 55 Series group; not a serial-specific schedule.

Publicerad: June 2016; sheet states subject to change without notice.

Läst: 2026-10-07

Öppna källa

Quad-Range-kapacitet efter drivutförandeUngefärlig QRT-kapacitet: 60.5 L (16 US gal) för modellgruppen 4055, 4255 och 4455; separat MFWD-rad för gruppen 4055, 4255 och 4455 anger 65.1 L (17.2 US gal). Provexemplaret 1628 är 2 WD; Deeres MFWD-värde gäller en separat grupprad.
Källa

Originalrubrik: Deere serviceblad: Quad-Range-kapacitet efter drivutförande

Originalvärde: Approximate QRT capacity: 60.5 L (16 gal) for listed 4055, 4255, 4455 group; separate MFWD row for 4055, 4255, 4455: 65.1 L (17.2 gal). Test 1628 specimen is 2 WD; Deere MFWD value remains a distinct group row. L (US gal)

Utförande: John Deere 4455 in the Deere 55 Series Row-Crop group explicitly named by the sheet; any QRT/MFWD split is stated in the value. The sheet does not identify a model year or individual serial number.

Standard och villkor: John Deere maintenance/parts sheet. Page 2 labels capacities ‘Approximate’; preserve its stated model and transmission/drive groupings.

Marknad: English-language John Deere Genuine Parts and Service sheet hosted on Deere’s U.S. parts domain; no national sales market or individual tractor market is stated.

Källperiod: Deere service sheet dated June 2016; not a model year or tractor production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, Transmission (QRT), Hy-Gard, separate 4055/4255/4455 and 4055/4255/4455 (MFWD) rows; page-2 render SHA256 0E818B53DB540D6A5703F2F51ABFA46A66C33BE283ED8505097C67B9850C44F0.

Villkor: Approximate OEM capacities where indicated; no MY/PIN boundary. Keep the MFWD row separate from Test 1628’s 2WD values.

Publicerad: June 2016; sheet states subject to change without notice.

Läst: 2026-10-07

Öppna källa

Hyttens recirkulations- och friskluftsfilterRecirkulationsfilter: standardfilter RE12793 eller kraftigt filter RE67830. Friskluftsfilter: R65450. Kontroll var 250 h; byt årligen och vid behov; följ maskinens serviceindikering.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Recirculation air filter: standard RE12793 or heavy-duty RE67830. Fresh-air filter: R65450. Check every 250 hours; replace annually and as required; service as indicated on the machine. part numbers; hours / calendar

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: The page-1 CAB callouts have no individual model, engine, transmission, drive or serial qualifier; the sheet title includes 4455. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, CAB > RECIRCULATION AIR FILTER (standard/heavy-duty) and FRESH AIR FILTER; adjacent service instructions.

Villkor: Two cab callouts grouped because they share the printed instructions. Does not infer which cab/filter package is fitted.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Returkollektor · rengöringsintervallReturkollektorns sil R27173; rengör var 1,500 h.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Return oil manifold screen R27173; clean every 1,500 hours. part number; hours

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: The page-1 sheet title includes 4455; this callout has no printed engine-code, transmission, drive or serial qualifier. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC > RETURN OIL MANIFOLD SCREEN R27173 and “Clean filter every 1500 hours.”

Villkor: The source says clean every 1,500 hours; it does not state replacement at that interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Deere: Plus-50 II och ungefärlig vevhuskapacitet med filterPlus-50 II; ungefärlig vevhusvolym inklusive filter 18 L (4.8 gal), raden för 4055/4255/4455.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: Plus-50 II; approximate crankcase-with-filter capacity 18 L (4.8 gal), 4055/4255/4455 row. OEM lubricant; approximate capacity L (gal)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: The 4455 row does not split by engine, QRT/PST, MFWD or serial. DLG Test 1628 separately states 18 L (19 qt) engine capacity without filter; this is the OEM with-filter row. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Crankcase with Filter > Plus-50 II > 4055/4255/4455 row.

Villkor: Approximate OEM capacity; distinct from DLG engine-without-filter figure and not an oil-change interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Deere: Cool-Gard II och ungefärlig kylsystemskapacitetCool-Gard II; ungefärlig kylsystemvolym 25.6 L (6.8 gal), raden för 4055/4255/4455.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: Cool-Gard II; approximate cooling-system capacity 25.6 L (6.8 gal), 4055/4255/4455 row. OEM coolant; approximate capacity L (gal)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: The 4455 row does not split by engine, QRT/PST, MFWD or serial. DLG Test 1628 separately reports the same system capacity; this proposal adds the OEM Cool-Gard II product context. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Cooling System > Cool-Gard II > 4055/4255/4455 row.

Villkor: The numeric capacity matches the DLG test record but is transcribed from the distinct OEM approximate-capacity row; no mix ratio stated.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Deere: ungefärlig PST-kapacitet utan MFWDTransmission (PST) med Hy-Gard: kapacitet 51 L (13.5 US gal) för gruppen 4055/4255/4455 utan MFWD.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: Transmission (PST), Hy-Gard: 51 L (13.5 gal), 4055/4255/4455 group without MFWD. L (US gal); transmission and drive condition

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: Source lists 4455 in the PST row without MFWD label. DLG Test 1628 specimen RW4455H002608 is QRT/2WD; this PST cell is not that tested transmission. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Transmission (PST), Hy-Gard, 4055/4255/4455 row (no MFWD label).

Villkor: Not QRT capacity and not the DLG specimen's gearbox.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Deere: ungefärlig PST-kapacitet med MFWDTransmission (PST) med Hy-Gard: 60 L (15.9 US gal) för modellgruppen 4055/4255/4455 med MFWD.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: Transmission (PST), Hy-Gard: 60 L (15.9 gal), 4055/4255/4455 (MFWD) group. L (US gal); transmission and drive condition

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: Source explicitly lists 4455 in the PST/MFWD row. DLG Test 1628 specimen RW4455H002608 is QRT/2WD; this PST/MFWD cell is not that tested configuration. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Transmission (PST), Hy-Gard, separate 4055/4255/4455 (MFWD) row.

Villkor: Not QRT capacity and not assigned to the DLG 2WD specimen.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

MFWD: smörjmedel och ungefärlig kapacitet i axelhusetMFWD-raden för 4055, 4255 och 4455: GL-5-växelsmörjmedel (85W-140); axelhus 11.4 L (3 gal).

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: 4055/4255/4455 MFWD group: GL-5 Gear Lubricant (85W-140); axle housing 11.4 L (3 gal). lubricant; approximate capacity L (gal)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4455. Profile context from Nebraska Test 1628 / OECD 1248: QRT (Quad-Range), 2WD, engine John Deere 6076TRW04; turbocharged, 6-cylinder per DLG #1248, tested serial RW4455H002608. Row applicability: Apply only to an MFWD-equipped 4455; DLG Test 1628 specimen RW4455H002608 is 2WD, so this is conditional option information. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4455H001001 (literal “first serial” text only; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Mechanical Front Wheel Drive (MFWD), GL-5 Gear Lubricant (85W-140), 4055/4255/4455 group, Axle Housing row.

Villkor: Approximate capacity for explicit MFWD group only; no 2WD fill amount/procedure.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Övriga uppgifter

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4455 · Övriga uppgifter
UppgiftVärde och utförandeKälla
Bränslematning, filter och tankFörpumpen är integrerad i insprutningspumpen; Stanadyne/RE27091 pappersfilter; bränsletank 246 liter (65 US gallons).
Källa

Originalvärde: Transfer pump integral with injection pump; Stanadyne/RE27091 paper-element fuel filter; tank 246 liter (65 US gallons) system; part; L (US gal)

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.1 / physical PDF p.4, Fuel System > Feed system, filter and Fuel Tank capacity.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Laddning och batteribank12 V DC, minusjord; remdriven Nippondenso/RE37201-generator, 120 A vid 2200 motorvarv/min; två parallellkopplade 12 V-batterier, vardera 175 Ah vid 20 h-klassning och 925 A kallstartström (CCA).
Källa

Originalvärde: 12 V DC, negative ground; Nippondenso/RE37201 belt-driven generator 120 A at 2200 engine rpm; two 12 V batteries in parallel, each 175 Ah at 20-hour rating and 925 cold-cranking amps V; A; Ah; CCA

Utförande: John Deere 4455 Quad-Range (2 WD), Nebraska Test 1628 / OECD #1248; tested serial RW4455H002608; first serial listed RW4455H001001.

Standard och villkor: OECD Standard Test Code C(87)53 Final—Annex II, Restricted Code. The DLG cover separately says ‘Restricted Test-Code II.’ Test-report cells are transcribed as printed; values are not generalized to other 4455 drive/transmission variants.

Marknad: English-language DLG archive copy of a University of Nebraska Center for Agricultural Equipment test report; the tested performance is a U.S./Nebraska result, not evidence of sales market, Swedish order status, or an individual tractor market.

Källperiod: Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Underlag: DLG #1248 printed p.3 / physical PDF p.6, Electrical System > voltage/grounding, generator, batteries and rating.

Villkor: Applies only to the identified Test 1628 Quad-Range 2WD test configuration and stated test conditions; it does not establish universal fitment, model-year span, production span, or a PIN range.

Publicerad: Test September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990.

Läst: 2026-10-07

Öppna källa

Mätvillkor i oballasterad dragstångsserie18-Sep-89 och 19-Sep-89; prov 1628; betongbana; bränslets densitet 0.828 kg/L; avsnitt I maxeffekt (oballasterad, 2WD vid 1900 rev/min); dragstångshöjd 635 mm; däcktryck 110 kPa bak och 276 kPa fram.

Värdet avser ballastutförandet som anges i källan.

Källa

Originalvärde: 18-Sep-89 and 19-Sep-89; Test 1628; concrete track; fuel density 0.828 kg/L; section I Maximum Power (unballasted, 2wd @ 1900 rev/min); drawbar height 635 mm; tire pressure 110 kPa rear / 276 kPa front. dates; test conditions; mm; kPa

Utförande: John Deere 4455 Quad-Range (2WD), DLG Test 1628 / OECD approval 1248; test serial RW4455H002608; first serial RW4455H001001. Not Nebraska Test 1619 (4455 Powershift 15-Speed). Ballast scope follows the table heading; no ballast mass inferred.

Standard och villkor: OECD Standard Test Code C(87)53 Final — Annex II, Restricted Code; report cover calls it Restricted Test-Code II.

Marknad: CAE/UNL Lincoln, Nebraska, USA test station. Test values do not establish sales market or Swedish availability.

Källperiod: Unballasted table dates: 18–19 September 1989.

Underlag: DLG #1248, section 3, printed p.19 / physical PDF p.22, OECD Drawbar Data (SI), table header, test conditions and section I heading; visually checked against the raster.

Villkor: Conditions printed for the unballasted table. Pressures are drawbar test conditions, distinct from tire-manufacturer inflation row. Drawbar power is not engine or PTO power. Scoped to this named 4455 Quad-Range 2WD Test 1628 specimen and table conditions only; not generalized to another transmission, drive variant, serial, market, or model year.

Publicerad: Test 1628 ran September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. Source dates only, not production/model-year bounds.

Läst: 2026-10-07

Öppna källa

Mätvillkor i ballasterad dragstångsserie27-Sep-89 (båda datumfälten); prov 1628; betongbana; bränslets densitet 0.828 kg/L; avsnitt Ib maxeffekt (ballasterad, 2WD vid 1900 rev/min); dragstångshöjd 483 mm; däcktryck 97 kPa inre bak, 97 kPa yttre bak och 276 kPa fram.

Värdet avser ballastutförandet som anges i källan.

Källa

Originalvärde: 27-Sep-89 (both date cells); Test 1628; concrete track; fuel density 0.828 kg/L; subsection Ib Maximum Power (ballasted, 2wd @ 1900 rev/min); drawbar height 483 mm; tire pressure 97 kPa rear inner / 97 kPa rear outer / 276 kPa front. date; test conditions; mm; kPa

Utförande: John Deere 4455 Quad-Range (2WD), DLG Test 1628 / OECD approval 1248; test serial RW4455H002608; first serial RW4455H001001. Not Nebraska Test 1619 (4455 Powershift 15-Speed). Ballast scope follows the table heading; no ballast mass inferred.

Standard och villkor: OECD Standard Test Code C(87)53 Final — Annex II, Restricted Code; report cover calls it Restricted Test-Code II.

Marknad: CAE/UNL Lincoln, Nebraska, USA test station. Test values do not establish sales market or Swedish availability.

Källperiod: Ballasted table date: 27 September 1989.

Underlag: DLG #1248, section 5.2, printed p.26 / physical PDF p.29, OECD Drawbar Data (SI), table header, test conditions and subsection Ib heading; visually checked against the raster.

Villkor: Records this ballasted table's setup only; cited page does not state ballast mass. Pressures are test conditions, distinct from tire-manufacturer inflation row. Drawbar power is not engine or PTO power. Scoped to this named 4455 Quad-Range 2WD Test 1628 specimen and table conditions only; not generalized to another transmission, drive variant, serial, market, or model year.

Publicerad: Test 1628 ran September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. Source dates only, not production/model-year bounds.

Läst: 2026-10-07

Öppna källa

Jämför modelluppgifter

Jämför källrader för två valda profiler.

Det finns ännu ingen särskilt utvald jämförelse för den här profilen.

Jämförelsen visar modellernas publicerade uppgifter och villkor.

Oljemängder och oljetyp

Oljevolymer, oljespecifikationer och serviceintervall.

Angivna fyllnadsmängder och serviceuppgifter enligt respektive källa
UppgiftVärde och utförandeKälla
Motorolja18 l 4455 Powershift MFWD · engine without filter
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Engine (w/o filter) 18 liter (19 quart).

Utförande: 4455 Powershift MFWD

System: engine without filter

Transmissionsolja60 l 4455 Powershift MFWD · gearbox including rear axle and rear final drive
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Gear Box, includes rear axle and rear final drive, 60 liter (63.6 quart). Hydraulsystemet är common with gearbox.

Utförande: 4455 Powershift MFWD

System: gearbox including rear axle and rear final drive

Framaxel8,5 l 4455 Powershift MFWD · front axle housing
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Front axle housing 8.5 liter (9 quart).

Utförande: 4455 Powershift MFWD

System: front axle housing

Framaxel1,9 l 4455 Powershift MFWD · front final drive
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Final drive, front 1.9 liter (2 quart).

Utförande: 4455 Powershift MFWD

System: front final drive

Oljespecifikation · engine oilJohn Deere Torq-Gard Supreme, 102 cSt, API-CD, MIL-L-2104D. 4455 Powershift MFWD · engine oil
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Engine oil recommended.

Utförande: 4455 Powershift MFWD

System: engine oil

Oljespecifikation · transmission, hydraulic and steeringJohn Deere Hy-Gard, 58 cSt. Hydraulvätska och styrningsolja samma som transmissionsoljan. Framaxel och nav: GL-5, 85W-140. 4455 Powershift MFWD · transmission, hydraulic and steering
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Hy-Gard är inte motorolja.

Utförande: 4455 Powershift MFWD

System: transmission, hydraulic and steering

Serviceintervallmotorolja 250 h; motoroljefilter 250 h; transmissionsolja 1 500 h; hydraulolja 1 500 h 4455 Powershift MFWD · OECD oil table
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Motorolja och filter 250 h. Växellåda 1500 h. Hydraulintervallet följer den gemensamma växellådan. Filterbyte annually lagras inte som timmar.

Utförande: 4455 Powershift MFWD

Villkor: OECD oil table

Bränsle och kylvätska

Angivna volymer enligt respektive källa
UppgiftVärde och utförandeKälla
Kylvätska25,6 l 4455 Powershift MFWD · cooling system
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida 2. Coolant system capacity 25.6 liter (27 qt).

Utförande: 4455 Powershift MFWD

System: cooling system

Bränsletank246 l 4455 Powershift MFWD · fuel tank
Källa

OECD restricted-code test, John Deere 4455 Powershift MFWD, DLG file Nr1234

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1234, provtraktor 4455 med mekanisk framhjulsdrift. Kraftuttag 1989-04-12, Lincoln, Eaton Dynamatic 2025 D.G.. PDF-sida 4. Fuel Tank capacity 246 liter (65 US gallons).

Utförande: 4455 Powershift MFWD

System: fuel tank

Källor

Öppna källraden för exakt publikation, villkor och variant.

Om underlaget
Modellkod
4455
Generation
John Deere 55 Series Row-Crop tractor; Deere June 2016 sheet names this series. Production period/MY/PIN span are not established.
Marknad
English-language U.S./Nebraska test and Deere U.S.-domain service sheet; no Swedish sales, national homologation, or individual-machine market established.
Källperiod
Nebraska Test 1628 September–October 1989; OECD approval #1248 dated 29 March 1990; report signature page dated 24 May 1990. These are source dates, not production/MY/PIN boundaries.

Avgränsat källunderlag · status gap · omfattning jämförelsefakta.

En fullständig granskning av hela modellguiden är inte dokumenterad.
