John Deere 4720 Compact Utility Tractor

4720: Motorvolym anges till 2,44 L. Motortypen anges som 4-cylindrig turboladdad dieselmotor. Motoreffekt enligt broschyr · ISO är 48,5 kW. Standardtransmission anges till eHydro.

Visa underlag till modellöversikten

Faktarader

Källposter

Motorvolym
2,44 L
Motor, fabrikat/serie
John Deere PowerTech
Standardtransmission
eHydro
Hydraulikflöde, styrning
19,3 L/min

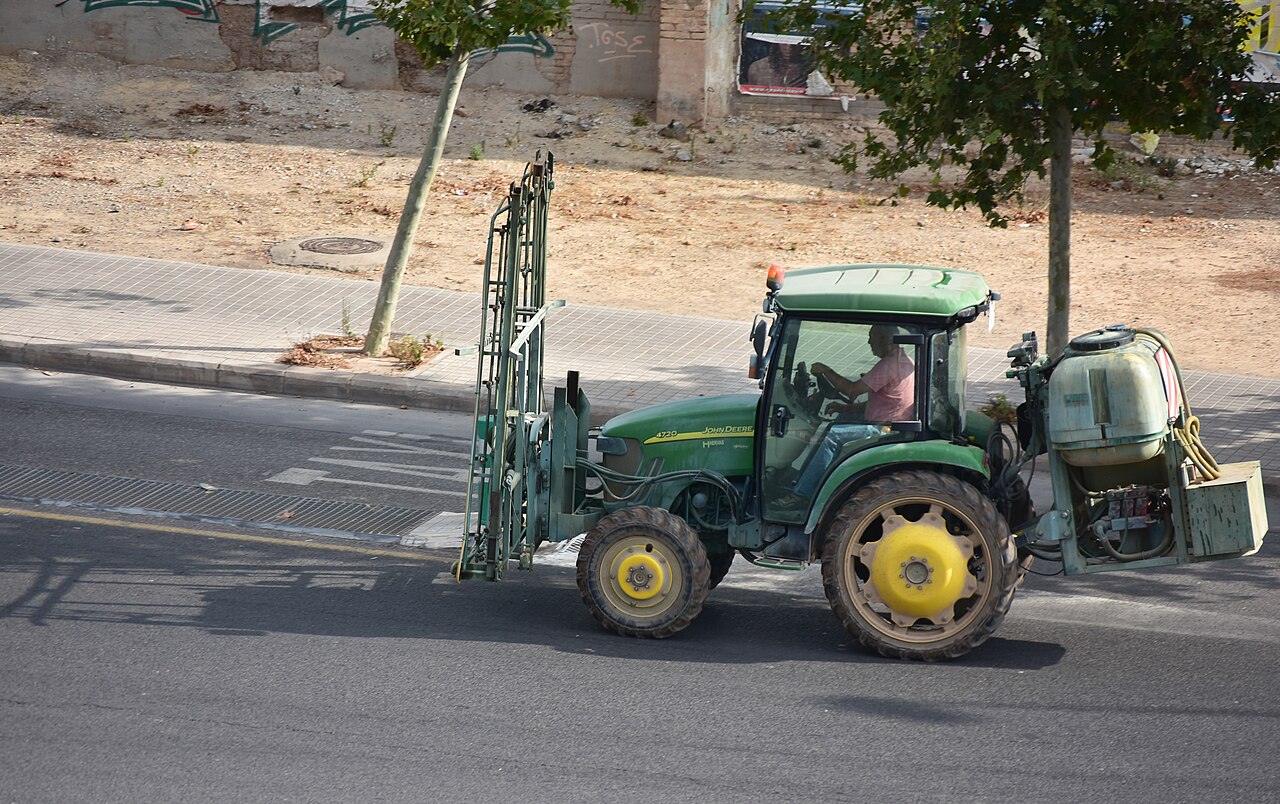

John Deere 4720 Compact Utility Tractor med bakmonterad sprututrustning.
John Deere 4720 Compact Utility Tractor med bakmonterad sprututrustning.
Foto: Dorieo (Jerónimo Roure Pérez) · Oförändrad Commons-version, 1280 px. · CC BY-SA 4.0 · Bildkälla

Översikt

Motor och effekt

Motorvolym anges till 2,44 L. Motortypen anges som 4-cylindrig turboladdad dieselmotor. Motoreffekt enligt broschyr · ISO är 48,5 kW. Motor, fabrikat/serie anges till John Deere PowerTech.

Fakta och källor till avsnittet

Faktarader

Källposter

Hydraulik och lyft

Lyftkapacitet, 24 tum bakom lyftarmarna anges till 1 134 kg. 400CX-lastare, lyftkapacitet vid full höjd anges till 977 kg. Hydraulikflöde, styrning anges till 19,3 L/min.

Fakta och källor till avsnittet

Faktarader

Källposter

Kraft, fart och format.

John Deere 4720 Compact Utility Tractor

Alla tekniska data

Motoreffekt

Motoreffekt enligt broschyr48,5 kWFakta

Motor

Motorvolym2,44 LFakta

Hydraulik

Flödesuppgifter per källrad och utförande

Hydraulikflöde, styrning19,3 L/min

Separat uppgift; ska inte adderas till andra värden.

Fakta
Fler flödesuppgifter
Hydraulikflöde, redskap45,3 L/min
Fakta
Totalt hydraulflöde enligt broschyrens kapacitetsrubrik64,6 L/min
Fakta

Tekniska data

Motor och effekt

4720 · Motor och effekt
UppgiftVärde och utförandeKälla
Motor, fabrikat/serieJohn Deere PowerTech
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Engine row, 4720 column prints John Deere PowerTech™.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Motortyp4-cylindrig turboladdad dieselmotor
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Engine Type row, 4720 column: “4-cylinder turbocharged diesel”.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Motoreffekt enligt broschyr48,5 kW

97/68/EC

Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: * Manufacturer's estimate of power (ISO) per 97/68/EC.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. HP* row prints 66 (48.5 kW) in the 4720 column; footnote * says manufacturer’s estimate of power (ISO) per 97/68/EC.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Motorvolym2,44 L
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Engine Displacement row prints 148.9 cu. in. (2.44 L) for 4720.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Motoroljefilter, artikelnummerRE519626
Källa

Utförande: Deere anger raden för ALL MODELS i den namngivna 4020-gruppen, inklusive 4720; monterad del på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: ENGINE OIL FILTER (ALL MODELS) — RE519626

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Transmission

4720 · Transmission
UppgiftVärde och utförandeKälla
StandardtransmissioneHydro
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Transmission / Standard Transmission row, 4720 column: eHydro™.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Alternativ växellådaN/A
Källa

Originalrubrik: Alternativ transmission

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Transmission / Optional Transmission row, 4720 column: N/A.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

SlutväxelPlanetväxel
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Transmission / Final Drive row, 4720 column: Planetary.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

BromsarVåta skivbromsar
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Transmission / Brakes row, 4720 column: Wet disk.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

KopplingN/A
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Transmission / Clutch row, 4720 column: N/A.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Hydraulik och lyft

4720 · Hydraulik och lyft
UppgiftVärde och utförandeKälla
Hydraulikflöde, styrning19,3 L/min

Separat uppgift; ska inte adderas till andra värden.

Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: Distinct steering-flow row; do not add to implement flow unless a source-defined calculation is needed.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Hydraulics / Steering row prints 5.1 gpm (19.3 L/min) for 4720.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Hydraulikflöde, redskap45,3 L/min
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Hydraulics / Implement row prints 12 gpm (45.3 L/min) for 4720.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Totalt hydraulflöde enligt broschyrens kapacitetsrubrik64,6 L/min
Källa

Originalrubrik: Hydraulikflöde, total (broschyrens “Total Capacity”)

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: The source’s unit makes this a flow value even though the printed row label says “Total Capacity”.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Hydraulics / Total Capacity row prints 17.1 gpm (64.6 L/min) for 4720.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Lyftkapacitet, 24 tum bakom lyftarmarna1 134 kg
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: Keep the 24 in. behind-link-arms measurement point; not loader capacity.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Hydraulics / Lift Capacity (24 in. Behind Link Arms) row prints 2,500 lb. (1134 kg), 4720 column.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Bakre trepunktslyft, kategoriKategori 1
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Rear Hitch / Type row, 4720 column: Category 1.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Bakre trepunktslyft, regleringPositionsreglering
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Rear Hitch / Control Type row, 4720 column: Position.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Växellåds- och hydraulfilter, artikelnummerLVA13038
Källa

Utförande: Deere anger raden för ALL MODELS i den namngivna 4020-gruppen, inklusive 4720; monterad del på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: TRANSMISSION / HYDRAULIC FILTER (ALL MODELS) — LVA13038

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Kraftuttag

4720 · Kraftuttag
UppgiftVärde och utförandeKälla
Kraftuttagseffekt enligt broschyr41,8 kW

Standard ej angiven

Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: No PTO measurement standard is specified in this table; do not apply the engine HP* footnote to this separate unstarred row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. PTO HP row prints 56 (41.8 kW) in the 4720 column. The PTO row carries no asterisk.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Kraftuttag, typIndependent (oberoende)
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. PTO / PTO Type row, 4720 column: Independent.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

KraftuttagsplaceringBakre standard; mittre tillval
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. PTO / PTO Locations row, 4720 column: Rear standard, mid optional.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Ekonomi-PTOTillval
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. PTO / Economy PTO row, 4720 column: Optional.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Underrede och band

4720 · Underrede och band
UppgiftVärde och utförandeKälla
StyrningstypServostyrning
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: The brochure separately lists steering hydraulic flow; this row records only the printed steering type.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Transmission / Steering row, 4720 column: Power.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Fyrhjulsdriftstandard
Källa

Originalvärde: Standard

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Transmission / 4WD row, 4720 column: Standard.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

DäckalternativBar Tread/R1; Turf Tire/R3; Turf Special/R3; Industrial/R4
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: Options listed in brochure; no tire size or installed set is established.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Tire Options row, 4720 column lists Bar Tread/R1, Turf Tire/R3, Turf Special/R3, Industrial/R4.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Mått och vikt

4720 · Mått och vikt
UppgiftVärde och utförandeKälla
Vikt med alla vätskor, öppen station1 679 kg
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: Open-station only; not cab-equipped machine weight.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Weight (Open Station) / With All Fluids row prints 3,700 lb. (1679 kg), 4720 column.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

400CX-lastare, lyftkapacitet vid full höjd977 kg
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: Attachment specification; not tractor three-point lift, not proof of a loader fitted to a particular tractor.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. 400 CX Loader row prints 2194 lb. (977 kg); adjoining note says “Lift capacity at full height, Measured at pivot”.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Motor och maskindata

Motor och effekt

John Deere 4720 · Motor och effekt
UppgiftVärde och utförandeKälla
Motortyp4024T

Utförande 4720 · OMLVU17927 J7 North America

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Kraftuttag

John Deere 4720 · Kraftuttag
UppgiftVärde och utförandeKälla
Kraftuttagseffekt56 hp (41.8 kW)

Utförande 4720 · PTO · kraftuttag

Källa

John Deere 4000 Series Compact Utility Tractors brochure, kolumn 4720

Utgivare: John Deere

Källans värde: 56 hp (41.8 kW) hp

Utförande: 4720

Norm: PTO

System: kraftuttag

Transmission och drivning

John Deere 4720 · Transmission och drivning
UppgiftVärde och utförandeKälla
TransmissioneHydro

Utförande 4720 · OMLVU17927 J7 North America · eHydro

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: eHydro

Drivning4WD

Utförande 4720 · OMLVU17927 J7 North America · MFWD standard

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: MFWD standard

Mått, vikt och däck

John Deere 4720 · Mått, vikt och däck
UppgiftVärde och utförandeKälla
Vikt1 679 kg

Utförande 4720 · OMLVU17927 J7 North America · All models without cab

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Källans värde: 1679 kg (3700 lb) kg (lb)

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Mätning: All models without cab

Vikt1 970 kg

Utförande 4720 · OMLVU17927 J7 North America · All models with cab

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Källans värde: 1970 kg (4345 lb) kg (lb)

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Mätning: All models with cab

Hjulbas1 800 mm

Utförande 4720 · OMLVU17927 J7 North America · Wheelbase

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Källans värde: 1.8 m (71.5 in.) m (in)

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Mätning: Wheelbase

Hydraulik och lyft

John Deere 4720 · Hydraulik och lyft
UppgiftVärde och utförandeKälla
Lyftkapacitet1 134 kg

Utförande 4720 · OMLVU17927 J7 North America · Lift capacity 24 in behind link arms

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Källans värde: 1134 kg (2500 lb) kg (lb)

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Mätning: Lift capacity 24 in behind link arms

Hydraulflöde45,3 l/min

Utförande 4720 · OMLVU17927 J7 North America · Pump capacity main at rated speed

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Källans värde: 45.3 L/min (12 gpm) L/min (gpm)

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Pump capacity main at rated speed

Hydraulflöde19,3 l/min

Utförande 4720 · OMLVU17927 J7 North America · Pump capacity power steering at rated speed

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Källans värde: 19.3 L/min (5.1 gpm) L/min (gpm)

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Pump capacity power steering at rated speed

Hydraulflöde64,6 l/min

Utförande 4720 · OMLVU17927 J7 North America · Total flow of pumps at rated speed

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Källans värde: 64.6 L/min (17.1 gpm) L/min (gpm)

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Total flow of pumps at rated speed

Däck

John Deere 4720 · Däck
UppgiftVärde och utförandeKälla
Framdäck8.00-16 6PR R1 TI

Utförande 4720 · OMLVU17927 J7 North America · Front tires available all models

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Front tires available all models

Framdäck27x10.5-15 4PR R3 TI

Utförande 4720 · OMLVU17927 J7 North America · Front tires available all models

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Front tires available all models

Framdäck10.00-16.5 6PR R4 TI

Utförande 4720 · OMLVU17927 J7 North America · Front tires available all models

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Front tires available all models

Framdäck27x12LL-15 6PR GOLF GA

Utförande 4720 · OMLVU17927 J7 North America · Front tires available all models

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Front tires available all models

Bakdäck13.6-28 4PR R1 TI

Utförande 4720 · OMLVU17927 J7 North America · Rear tires available all models

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Rear tires available all models

Bakdäck44x18.00-20 4PR R3 TI

Utförande 4720 · OMLVU17927 J7 North America · Rear tires available all models

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Rear tires available all models

Bakdäck17.5L-24 8PR R4 TI

Utförande 4720 · OMLVU17927 J7 North America · Rear tires available all models

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Rear tires available all models

Bakdäck22.5LL-16.1 6PR Golf GA

Utförande 4720 · OMLVU17927 J7 North America · Rear tires available all models

Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Rear tires available all models

Service och underhåll

4720 · Service och underhåll
UppgiftVärde och utförandeKälla
Bränsletankens kapacitet54,9 L

Utan hytt.

Källa

Utförande: 4720 Compact Utility Tractor utan hytt; källtexten anger Tractor Without Cab.

Standard och villkor: Ungefärlig kapacitet enligt tabellrubriken.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere-kapacitetstabell, tryckt utgivningsdatum maj 2021; namngiven 4020-grupp, inte modellår eller PIN.

Underlag: Visuellt läst fysisk PDF-sida 2: Fuel Tank — Tractor Without Cab — 54.9 L (14.5 gal)

Publicerad: May 2021 release date, as printed; not tractor model year.

Läst: 2026-10-12

Öppna källa

Bränsletankens kapacitet52 L

Med hytt.

Källa

Utförande: 4720 Compact Utility Tractor med hytt; källtexten anger Tractor With Cab.

Standard och villkor: Ungefärlig kapacitet enligt tabellrubriken.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere-kapacitetstabell, tryckt utgivningsdatum maj 2021; namngiven 4020-grupp, inte modellår eller PIN.

Underlag: Visuellt läst fysisk PDF-sida 2: Fuel Tank — Tractor With Cab — 52 L (13.8 gal)

Publicerad: May 2021 release date, as printed; not tractor model year.

Läst: 2026-10-12

Öppna källa

Kylsystemets kapacitet, Cool-Gard II Premix6,2 L

Utan hytt.

Källa

Utförande: 4720 Compact Utility Tractor utan hytt; källtexten anger Tractor Without Cab.

Standard och villkor: Ungefärlig kapacitet enligt tabellrubriken.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere-kapacitetstabell, tryckt utgivningsdatum maj 2021; namngiven 4020-grupp, inte modellår eller PIN.

Underlag: Visuellt läst fysisk PDF-sida 2: Cooling System: Cool-Gard II Premix — Tractor Without Cab — 6.2 L (1.6 gal)

Publicerad: May 2021 release date, as printed; not tractor model year.

Läst: 2026-10-12

Öppna källa

Kylsystemets kapacitet, Cool-Gard II Premix8,4 L

Med hytt.

Källa

Utförande: 4720 Compact Utility Tractor med hytt; källtexten anger Tractor With Cab.

Standard och villkor: Ungefärlig kapacitet enligt tabellrubriken.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere-kapacitetstabell, tryckt utgivningsdatum maj 2021; namngiven 4020-grupp, inte modellår eller PIN.

Underlag: Visuellt läst fysisk PDF-sida 2: Cooling System: Cool-Gard II Premix — Tractor With Cab — 8.4 L (2.2 gal)

Publicerad: May 2021 release date, as printed; not tractor model year.

Läst: 2026-10-12

Öppna källa

Vevhusets oljekapacitet med filter, Plus-507,5 L
Källa

Utförande: 4720 Compact Utility Tractor i källans 4020 Series Compact Utility Tractor-grupp.

Standard och villkor: Ungefärlig kapacitet enligt tabellrubriken.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere-kapacitetstabell, tryckt utgivningsdatum maj 2021; namngiven 4020-grupp, inte modellår eller PIN.

Underlag: Visuellt läst fysisk PDF-sida 2: Crankcase with Filter: Plus-50 — 7.5 L (1.9 gal)

Publicerad: May 2021 release date, as printed; not tractor model year.

Läst: 2026-10-12

Öppna källa

Framaxelns Hy-Gard-kapacitet5 L
Källa

Utförande: 4720 Compact Utility Tractor i källans 4020 Series Compact Utility Tractor-grupp.

Standard och villkor: Ungefärlig kapacitet enligt tabellrubriken.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere-kapacitetstabell, tryckt utgivningsdatum maj 2021; namngiven 4020-grupp, inte modellår eller PIN.

Underlag: Visuellt läst fysisk PDF-sida 2: Front Axle: Hy-Gard — 5.0 L (1.3 gal)

Publicerad: May 2021 release date, as printed; not tractor model year.

Läst: 2026-10-12

Öppna källa

Spolarvätskebehållarens kapacitet2,8 L
Källa

Utförande: 4720 Compact Utility Tractor i källans 4020 Series Compact Utility Tractor-grupp.

Standard och villkor: Ungefärlig kapacitet enligt tabellrubriken.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere-kapacitetstabell, tryckt utgivningsdatum maj 2021; namngiven 4020-grupp, inte modellår eller PIN.

Underlag: Visuellt läst fysisk PDF-sida 2: Windshield Washer Fluid Reservoir — 2.8 L (0.73 gal)

Publicerad: May 2021 release date, as printed; not tractor model year.

Läst: 2026-10-12

Öppna källa

Köldmedium R134a, angiven mängd1,3 kg
Källa

Utförande: 4720 Compact Utility Tractor i källans 4020 Series Compact Utility Tractor-grupp.

Standard och villkor: Ungefärlig kapacitet enligt tabellrubriken.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere-kapacitetstabell, tryckt utgivningsdatum maj 2021; namngiven 4020-grupp, inte modellår eller PIN.

Underlag: Visuellt läst fysisk PDF-sida 2: Refrigerant (R134a) — 1.3 kg (2.8 lb).

Villkor: Källan anger inte vilken hytt- eller luftkonditioneringskonfiguration mängden avser.

Publicerad: May 2021 release date, as printed; not tractor model year.

Läst: 2026-10-12

Öppna källa

Bränslefilter, artikelnummerRE508202
Källa

Utförande: Deere anger raden för ALL MODELS i den namngivna 4020-gruppen, inklusive 4720; monterad del på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: FUEL FILTER (ALL MODELS) — RE508202

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Primärt luftfilter, artikelnummerAP33330
Källa

Utförande: Deere anger raden för ALL MODELS i den namngivna 4020-gruppen, inklusive 4720; monterad del på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: AIR PRIMARY FILTER (ALL MODELS) — AP33330

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Sekundärt luftfilter, artikelnummerAP33331
Källa

Utförande: Deere anger raden för ALL MODELS i den namngivna 4020-gruppen, inklusive 4720; monterad del på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: AIR SECONDARY FILTER (ALL MODELS) — AP33331

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Hyttens friskluftsfilter, artikelnummerMIU10010
Källa

Utförande: Källans hyttfilterrad nämner 4320, 4520 och 4720; monterad hytt/filtervariant på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: CAB FRESH AIR FILTER (4320, 4520, 4720) — MIU10010

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Hyttens återcirkulationsfilter, artikelnummerMIU10011
Källa

Utförande: Källans hyttfilterrad nämner 4320, 4520 och 4720; monterad hytt/filtervariant på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: CAB RECIRCULATION AIR FILTER (4320, 4520, 4720) — MIU10011

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Antal hyttfilter för återcirkulation2 st
Källa

Utförande: Källans hyttfilterrad nämner 4320, 4520 och 4720; monterad hytt/filtervariant på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: Quantity 2

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Artikelnummer i filterpaket LVA21203RE519626, AP33330, RE508202, LVA13038
Källa

Utförande: Deere anger raden för ALL MODELS i den namngivna 4020-gruppen, inklusive 4720; monterad del på enskilt exemplar är inte fastställd.

Standard och villkor: Artikelnummer i Deere-listningen; uppgifterna kan ändras.

Marknad: Deere Genuine Parts and Service i amerikansk dokumentkontext; enskild traktors marknad anges inte.

Källperiod: Deere filteröversikt, november 2019; uppgifterna kan ändras utan förvarning, inget modellår eller PIN fastställs.

Underlag: Visuellt läst fysisk PDF-sida 1: Each kit contains RE519626, AP33330, RE508202 and LVA13038

Publicerad: November 2019, as printed; subject to change without notice.

Läst: 2026-10-12

Öppna källa

Övriga uppgifter

4720 · Övriga uppgifter
UppgiftVärde och utförandeKälla
Batterikapacitet770 CCA
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Electrical / Battery Power row, 4720 column: 770 CCA.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Generatorström70 A
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Electrical / Alternator row, 4720 column: 70 A.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

ÖverrullningsskyddFällbart ROPS
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Roll Over Protective Structure row, 4720 column: Folding.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

ComfortGard-hyttTillval
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: The brochure’s options disclaimer says availability varies by region.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. ComfortGard Cab row, 4720 column: Optional.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Luftfjädrad stolTillval
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: Option status only; does not identify seat on an individual machine.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Air Ride Seat row, 4720 column: Optional.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Farthållarestandard
Källa

Originalvärde: Standard

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Cruise Control row, 4720 column: Standard.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

LoadMatchstandard
Källa

Originalvärde: Standard

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. LoadMatch row, 4720 column: Standard.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Auto Cruise/MotionMatchTillval
Källa

Utförande: John Deere 4720 Compact Utility Tractor, separate 4720 column in the 4000 TWENTY SERIES brochure; options are source-listed, not proof of individual equipment.

Standard och villkor: OEM brochure entry; no additional measurement standard is printed for this row.

Marknad: The brochure states that it is compiled for worldwide circulation and warns that some options/accessories are not available in every region. Individual machine market is unknown.

Källperiod: Brochure has no tractor model-year or production boundary; the p. 12 print code is not parsed as a year.

Underlag: Visually read original brochure physical PDF p. 11, separate 4720 column. Auto Cruise / MotionMatch row, 4720 column: Optional.

Publicerad: No explicit release date found. Physical p. 12 prints DKA2767 (09-03); preserved as a code, not parsed as year.

Läst: 2026-10-07

Öppna källa

Jämför modelluppgifter

Jämför källrader för två valda profiler.

Det finns ännu ingen särskilt utvald jämförelse för den här profilen.

Jämförelsen visar modellernas publicerade uppgifter och villkor.

Oljemängder och oljetyp

Oljevolymer, oljespecifikationer och serviceintervall.

Angivna fyllnadsmängder och serviceuppgifter enligt respektive källa
UppgiftVärde och utförandeKälla
Motorolja7,5 l 4720 · Crankcase with filter · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Fluid Capacities. Crankcase w/ Filter.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Crankcase with filter

Transmissionsolja36,1 l 4720 · Transmission and Hydraulic System, eHydro · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Fluid Capacities. Transmission and Hydraulic System (eHydro Models). Inte oil_hydr_l. 4720 har bara eHydro.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Transmission and Hydraulic System, eHydro

Framaxel5 l 4720 · Front Axle · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Fluid Capacities. Front Axle.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Front Axle

Oljespecifikation · motoroljaPLUS-50 4720 · motorolja · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7. Service Engine, Engine Oil. John Deere PLUS-50 oil is recommended.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: motorolja

Oljespecifikation · motoroljaTORQ-GARD SUPREME 4720 · motorolja · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7. Service Engine, Engine Oil. TORQ-GARD SUPREME may also be used.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: motorolja

Oljespecifikation · motoroljaACEA E4/E5 4720 · motorolja · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7. Service Engine, Engine Oil. Oils meeting ACEA Specification E4/E5 may also be used.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: motorolja

Oljespecifikation · motoroljaAPI CI-4 4720 · motorolja · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7. Service Engine, Engine Oil. Other oils: API Service Classification CI-4.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: motorolja

Oljespecifikation · motoroljaAPI CH-4 4720 · motorolja · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7. Service Engine, Engine Oil. Other oils: API Service Classification CH-4.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: motorolja

Oljespecifikation · motoroljaACEA E3 4720 · motorolja · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7. Service Engine, Engine Oil. Other oils: ACEA Specification E3.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: motorolja

Oljespecifikation · transmissionLow Viscosity HY-GARD (JDM J20D) 4720 · transmission · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7. Recommended Lubricants. Transmission Oil Low Viscosity HY-GARD (JDM J20D). Inte motorolja.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: transmission

Oljespecifikation · framaxelLow Viscosity HY-GARD (JDM J20D) 4720 · framaxel · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7. Recommended Lubricants. Front Axle Oil Low Viscosity HY-GARD (JDM J20D).

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: framaxel

Serviceintervallmotorolja 200 h; motoroljefilter 200 h; transmissionsolja 400 h; transmissionsfilter 400 h; hydraulolja 400 h 4720 · PIN 170101- · Engine oil every 200 hours; transmission oil every 400 hours
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Service Intervals. Every 200 Hours: Change engine oil and filter. Every 400 Hours: Change transmission oil and filter och Clean transmission suction screen. Hydraulens timmar följer volymraden Transmission and Hydraulic System. PLUS-50-raden är separat.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: Engine oil every 200 hours; transmission oil every 400 hours

Serviceintervallmotorolja 400 h; motoroljefilter 400 h; transmissionsolja 400 h; transmissionsfilter 400 h; hydraulolja 400 h 4720 · PIN 170101- · John Deere PLUS-50 engine oil every 400 hours; transmission oil every 400 hours
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Service Intervals. Every 400 Hours: Change engine oil and filter (if John Deere PLUS-50 is used). Transmissionsoljan står i samma 400-timmarsavsnitt utan PLUS-50-villkor.

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

Villkor: John Deere PLUS-50 engine oil every 400 hours; transmission oil every 400 hours

Bränsle och kylvätska

Angivna volymer enligt respektive källa
UppgiftVärde och utförandeKälla
Kylvätska6,2 l 4720 · Cooling system without cab · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Fluid Capacities. Cooling System (tractor without cab).

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Cooling system without cab

Kylvätska8,4 l 4720 · Cooling system with cab · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Fluid Capacities. Cooling System (tractor with cab).

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Cooling system with cab

Bränsletank54,9 l 4720 · Fuel tank without cab · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Fluid Capacities. Fuel Tank (tractor without cab).

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Fuel tank without cab

Bränsletank52 l 4720 · Fuel tank with cab · PIN 170101-
Källa

John Deere operator's manual OMLVU17927 issue J7, 4120, 4320, 4520 and 4720 Compact Utility Tractors (North America)

Utgivare: John Deere

OMLVU17927 J7, Fluid Capacities. Fuel Tank (tractor with cab).

Utförande: 4720

Marknad: OMLVU17927 J7 North America

PIN: 170101-

System: Fuel tank with cab

Källor

Öppna källraden för exakt publikation, villkor och variant.

Om underlaget
Modellkod
4720
Generation
4000 TWENTY Series Compact Utility Tractor, explicitly named on the Deere brochure cover and specification page. Keep separate from the historical row-crop 4720 and 4710/4720/4920 self-propelled sprayers.
Marknad
Brochure states worldwide circulation and warns that some options/accessories may not be available in all regions; an individual tractor market is not established.
Källperiod
No tractor production dates or model years inferred. TM105419 is a manual issue date; brochure print codes are left unparsed.

Avgränsat källunderlag · status gap · omfattning jämförelsefakta.

En fullständig granskning av hela modellguiden är inte dokumenterad.
