John Deere · 55-serien

John Deere 4755

4755: Motorbeteckning och serienummer anges till John Deere 6076ARW06; motorserienummer RG6076A102454.

Visa underlag till modellöversikten

Faktarader

Källposter

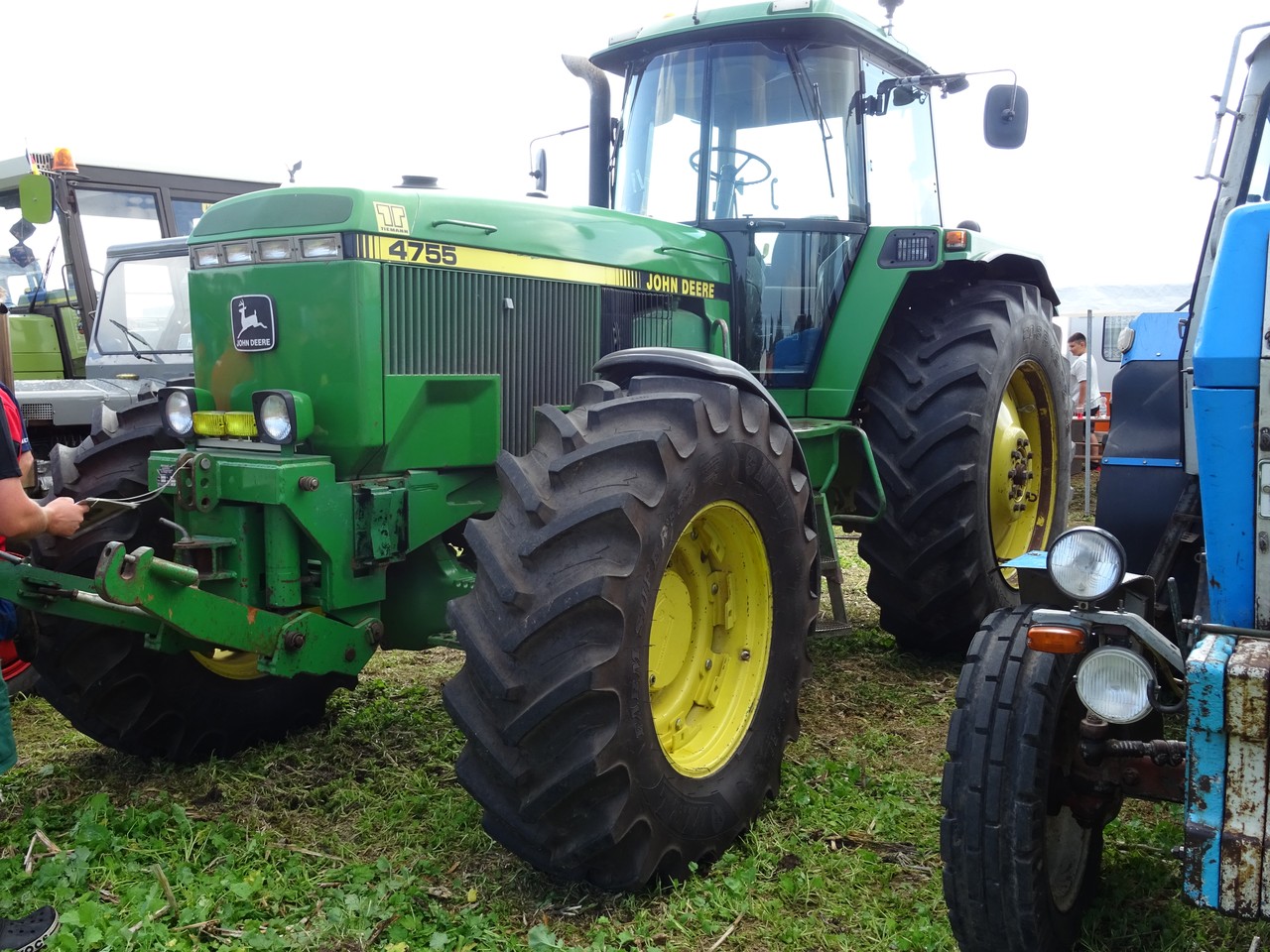

John Deere 4755 på en traktorträff i Wersdorf.
John Deere 4755 vid traktorträffen i Wersdorf, fotograferad 26 augusti 2023. Foto: Manataworf, CC BY-SA 4.0, via Wikimedia Commons. Referensfoto av en separat maskin; inte testexemplaret i DLG-rapporten. Bilden är proportionellt förminskad för webb, inte beskuren.
Foto: Manataworf · CC BY-SA 4.0 · Bildkälla

Översikt

Kraft, fart och format.

John Deere 4755

Alla tekniska data

Hastighet

Dragstångsresultat i 12:e växeln, oballasteradDLG/OECD-data för dragstång (SI), oballasterad traktor på betong i 12:e växeln: dragstångseffekt 112.89 kW; dragkraft 30.70 kN; h…

Flera värden eller villkor i samma källrad; ingen enskild fart har valts för en mätare.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar.

Fakta

Tekniska data

Motor och effekt

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4755 · Motor och effekt
UppgiftVärde och utförandeKälla
Motorbeteckning och serienummerJohn Deere 6076ARW06; motorserienummer RG6076A102454.
Källa

Originalvärde: John Deere 6076ARW06; engine serial RG6076A102454. designation / serial

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.4 (printed p.1), ENGINE > Make and Serial number cells

Villkor: Engine serial belongs to the tested engine; it is not a model-year or production-range key.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Motorarkitektur och geometri6 cylindrar i rad och stående; slagvolym 7634 ml (466 cu in); borrning × slaglängd 115.8 × 120.7 mm (4.56 × 4.75 in); kompressionsförhållande 16.0:1; toppventiler; våta, utbytbara cylinderfoder.
Källa

Originalvärde: 6 in-line vertical cylinders; displacement 7634 ml (466 cu in); bore × stroke 115.8 × 120.7 mm (4.56 × 4.75 in); compression ratio 16.0:1; overhead valves; wet replaceable liners. cylinders; ml (cu in); mm (in); ratio; construction

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.4 (printed p.1), ENGINE > cylinder arrangement, bore, stroke, displacement, compression ratio, valve and liner cells

Villkor: Dimensions and arrangement are transcribed as printed; no conversion or adjacent-model interpolation.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Turboaggregat och specificerat laddtryckAir Research RE29308, avgasturbindriven turboladdare; laddtryck 110–131 kPa (16–19 psi) vid nominellt varvtal och full belastning.

110–131 kPa är intervallet i utrustningsbeskrivningen; det är skilt från provtabellens uppmätta 114 kPa.

Källa

Originalvärde: Air Research RE29308 exhaust-gas-driven turbocharger; 110–131 kPa (16–19 psi) at rated speed and full load. make/model; kPa (psi)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.4 (printed p.1), ENGINE > Turbocharger / Pressure cells

Villkor: This is the specification range in the equipment description, not the separate measured 114 kPa result in the test table.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Regulator och varvtalsområdeNippondenso RSV200, mekanisk regulator; reglerat varvtalsområde 800–2400 r/min; nominellt motorvarvtal 2200 r/min; högsta tomgångsvarvtal 2375 ± 25 r/min.
Källa

Originalvärde: Nippondenso RSV200 mechanical governor; governed range 800–2400 r/min; rated engine speed 2200 r/min; high idle 2375 ± 25 r/min. make/model; r/min

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.5 (printed p.2), GOVERNOR > Type, Governed speed range, Rated speed and High idle cells

Villkor: Rated engine speed is not engine rated power.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Motorns luftrenareDonaldson-förrenare med plastnät mot agnar, placerad högst upp på luftintaget; primärfilter Donaldson/AR80652 och sekundärfilter Donaldson/AR80653 med veckat papper; serviceindikering med lampa/signalhorn på instrumentpanelen.
Källa

Originalvärde: Donaldson plastic-mesh chaff-screen precleaner at top of air stack; Donaldson/AR80652 primary and Donaldson/AR80653 secondary pleated-paper filters; dash-mounted light/horn service indicator. configuration / part numbers

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.5 (printed p.2), AIR CLEANER > Precleaner, Main filter, Secondary filter and Service indicator cells

Villkor: This is the DLG-tested equipment listing; Deere's later service sheet gives serial-split replacement part numbers separately.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Motorns smörjsystemTrycksmord deplacementspump; fullflödesfilter med förbikopplingsventil, ett filter; oljekylare/värmeväxlare mot motorns kylvätska.
Källa

Originalvärde: Full-pressure positive-displacement lubrication; full-flow filter with bypass; one filter; oil cooler heat exchanger with engine coolant. configuration

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.5 (printed p.2), LUBRICATION SYSTEM cells

Villkor: Equipment description only; the separate OEM capacity value is from the Deere 2016 sheet.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Motorns kylsystemVätskekylning med centrifugalpump; remdriven fläkt med variabelt varvtal, 8 blad och diameter 660 mm; kylsystemvolym 30.3 L (32 qt); två termostater; övertryckssystem 69 kPa (10 psi).
Källa

Originalvärde: Liquid cooled with centrifugal pump; belt-driven variable-speed, 8-blade, 660 mm fan; 30.3 L (32 qt) coolant capacity; two thermostats; 69 kPa (10 psi) superpressure. configuration; mm; L (qt); kPa (psi)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.5 (printed p.2), COOLING SYSTEM rows

Villkor: Capacity is the DLG report's equipment listing, not a universal fill instruction.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Startmotor och kallstartshjälpNippondenso RE38336 electric starter, 4.75 kW (6.4 hp); ether-spray cold-start aid; electrical lockout on gear shift. fabrikat/modell; kW (hp); utförande
Källa

Originalvärde: Nippondenso RE38336 electric starter, 4.75 kW (6.4 hp); ether-spray cold-start aid; electrical lockout on gear shift. make/model; kW (hp); configuration

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.5 (printed p.2), STARTER and Cold Start Aid rows

Villkor: Starter output is not tractor engine power.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

AvgassystemDonaldson RE35449 expansion chamber; vertical outlet above hood, left of centreline. fabrikat/modell; utförande
Källa

Originalvärde: Donaldson RE35449 expansion chamber; vertical outlet above hood, left of centreline. make/model; configuration

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.6 (printed p.3), EXHAUST SYSTEM cells

Villkor: Equipment description as printed for the tested unit.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Transmission

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

4755 · Transmission
UppgiftVärde och utförandeKälla
HuvudkopplingOljekyld flerskivig koppling, hydrauliskt manövrerad med fotpedal; 3, 4 eller 7 lameller beroende på växel; diameter 279.4 mm (11 in).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Oil-cooled multiple-plate clutch, hydraulically actuated by foot pedal; 3, 4, or 7 plates depending on gear; 279.4 mm (11 in). configuration; count; mm (in)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.6 (printed p.3), TRANSMISSION > Clutch rows

Villkor: Plate count varies with gear in the report; do not reduce to one fixed count.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Växellåda och växelmanövreringPlanetary full powershift-växellåda; 15 framåt och 4 bakåt speeds; single hand lever.

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Planetary full powershift; 15 forward and 4 reverse speeds; single hand lever. configuration; forward/reverse speeds

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.6 (printed p.3), TRANSMISSION > Type, Number of speeds, Control rows

Villkor: This report is for the specified Powershift unit, not a Quad-Range or another 4755 transmission.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Bakaxel och differentialspärrKronhjul och pinjong, differential samt invändig planetreduktion; hydraulisk differentialspärr som manövreras med fotpedal och kopplas ur automatiskt.

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Crown wheel and pinion, differential and inboard planetary reduction; hydraulic differential lock operated by foot pedal and self-disengaging. configuration

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.6 (printed p.3), REAR AXLE cells

Villkor: Description is for the DLG-tested 4WD Powershift configuration.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Villkorat transmissionsfilter efter felAR98098 kan användas som rengöringsfilter efter ett transmissionshaveri.
Källa

Originalvärde: AR98098 may be used as a cleanup filter after a transmission failure. part number; conditional use

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The note has no PST/QRT, MFWD, engine or serial qualifier; the page title includes 4755. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, parenthetical note under TRANSMISSION/HYDRAULIC OIL FILTER AR94510.

Villkor: Conditional cleanup after failure only, not a normal replacement interval or routine substitute for AR94510.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Hydraulik och lyft

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

4755 · Hydraulik och lyft
UppgiftVärde och utförandeKälla
Insprutningspump och produktionsflödesinställningNippondenso RE36653-radpump för insprutning; produktionsinställt flöde 31.6 ± 1.4 kg/h (69.7 ± 3.1 lb/h) vid nominellt motorvarvtal och full belastning.

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Nippondenso RE36653 in-line injection pump; production flow setting 31.6 ± 1.4 kg/h (69.7 ± 3.1 lb/h) at rated engine speed and full load. configuration; kg/h (lb/h)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.5 (printed p.2), FUEL SYSTEM > Injection pump and Production setting cells

Villkor: Production setting is not a PTO or drawbar fuel-consumption result.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Hydrauliksystem, pump och lyftkopplingarSlutet konstanttryckssystem; direktdriven radialkolvpump med variabelt flöde; behållare i transmissionshuset; överströmningsventil 17.5 ± 0.3 MPa (2535 ± 45 psi), cylindersäkerhetsventil 20.7 MPa (3000 psi); kategori 3 eller 3N enligt ISO 730/1-1977; tre bakre par ISO-kopplingar (ett fjärde som tillval); högsta oljemängd till externa cylindrar 6.0 L (6.3 qt), eller 13.0 L (13.7 qt) med tillåten överfyllning 7.0 L (7.4 qt).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Closed-centre constant-pressure system; direct-drive radial-piston variable-delivery pump; reservoir in transmission housing; relief 17.5 ± 0.3 MPa (2535 ± 45 psi), cylinder safety valve 20.7 MPa (3000 psi); category 3 or 3N in conformity with ISO 730/1-1977; three rear pairs of ISO couplings (fourth optional); max external-cylinder oil 6.0 L (6.3 qt), or 13.0 L (13.7 qt) with 7.0 L (7.4 qt) allowable overfill. configuration; MPa (psi); category/standard; coupling pairs; L (qt)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.9 (printed p.6), POWER LIFT and HYDRAULIC SYSTEM > pump, relief/safety pressure, couplings and external oil volume cells

Villkor: External single-acting cylinders and fourth couplings are optional; stated usable oil volume depends on the optional cylinder configuration.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Pumpflöde vid minimitryckVid minimitryck och nominellt motorvarvtal är hydraulpumpens flöde 119.6 L/min (31.6 gpm).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: At minimum pressure and rated engine speed, hydraulic pump delivery 119.6 L/min (31.6 gpm). L/min (gpm); engine speed condition

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.19 (printed p.16), Hydraulic Power Test > Pump delivery at minimum pressure and rated engine speed

Villkor: Test measurement condition; do not present as the separate maximum-power flow or an implement-specific guaranteed flow.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Hydraulik vid 90 procent av överströmningsventilens inställningVid 90 % av överströmningsventilens inställning: flöde 27.6 L/min (7.3 gal/min), tryck 15.72 MPa (2280 psi), effekt 7.2 kW (9.7 hp).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: At 90% of relief-valve setting: flow 27.6 L/min (7.3 gal/min), pressure 15.72 MPa (2280 psi), power 7.2 kW (9.7 hp). L/min (gal/min); MPa (psi); kW (hp)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.19 (printed p.16), Hydraulic Power Test table, row “At 90% of relief valve setting”

Villkor: Separate test operating point; not the pump's maximum flow or maximum hydraulic power point.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Maximal uppmätt hydraulisk effektVid maximal hydraulisk effekt: flöde 115.8 L/min (30.6 gpm), tryck 12.07 MPa (1750 psi), effekt 23.3 kW (31.2 hp).

Mätningen kombinerade två hydrauluttag; värdet är inte en mätning från ett enda uttag. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: At maximum hydraulic power: flow 115.8 L/min (30.6 gpm), pressure 12.07 MPa (1750 psi), power 23.3 kW (31.2 hp). L/min (gpm); MPa (psi); kW (hp)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.19 (printed p.16), Hydraulic Power Test table, row “At maximum hydraulic power”

Villkor: DLG says the tapping points were two hydraulic outlets combined; this is not a single-outlet rating.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Trepunktlyft med 44 mm lyftassistcylinderMed 44 mm lyftassistcylinder: högsta korrigerade kraft genom hela rörelseområdet, 30.9 kN (6957 lbf) vid dragpunkterna och 29.4 kN (6614 lbf) vid ramen; motsvarande tryck 12066 kPa (1750 psi).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: With 44 mm lift-assist cylinder, maximum corrected force through full range: hitch points 30.9 kN (6957 lbf); frame 29.4 kN (6614 lbf); corresponding pressure 12066 kPa (1750 psi). mm; kN (lbf); kPa (psi)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.21 (printed p.18), Three Point Lift Performance heading “with 44 mm lift assist cylinder”; max corrected force through full range and corresponding pressure cells

Villkor: Keep the 44 mm assistance configuration separate from the 55 mm table; these are test-corrected forces under the stated DLG setup.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Trepunktlyft med 55 mm lyftassistcylinderMed 55 mm lyftassistcylinder: högsta korrigerade kraft genom hela rörelseområdet, 33.3 kN (7479 lbf) vid dragpunkterna och 31.4 kN (7057 lbf) vid ramen; motsvarande tryck 12066 kPa (1750 psi).

Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: With 55 mm lift-assist cylinder, maximum corrected force through full range: hitch points 33.3 kN (7479 lbf); frame 31.4 kN (7057 lbf); corresponding pressure 12066 kPa (1750 psi). mm; kN (lbf); kPa (psi)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.22 (printed p.19), Three Point Lift Performance heading “with 55 mm lift assist cylinder”; max corrected force through full range and corresponding pressure cells

Villkor: Keep the 55 mm assistance configuration separate from the 44 mm table; these are test-corrected forces under the stated DLG setup.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Laddpumpens sugsilLaddpumpens sugsil: R53169 (nylon) eller AR26375 (stål). Något rengörings- eller bytesintervall anges inte här.
Källa

Originalvärde: Charge pump suction screen: R53169 (Nylon) or AR26375 (Steel). No cleaning or replacement interval is stated here. part number; material

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The page-1 sheet title includes 4755; this callout has no printed engine-code, transmission, drive or serial qualifier. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC > CHARGE PUMP SUCTION SCREEN; nylon and steel alternatives.

Villkor: Source gives material alternatives only; do not infer a service interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Deere: växellåda/hydraulik-filtermängd efter växellådaAR94510; antal 1 för QRT och 2 för PST. Testexemplaret DLG Test 1621 har PST/MFWD; tabellens PST-antal 2 gäller därför detta provutförande.
Källa

Originalrubrik: Deere: transmission/hydraulic-filtermängd efter växellåda

Originalvärde: AR94510; QRT quantity 1; PST quantity 2. DLG Test 1621 specimen is PST/MFWD, so the table’s PST quantity is 2 for that test configuration. part number; quantity by transmission

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The source splits QRT/PST but not MFWD or serial. DLG Test 1621 specimen RW4755P001033 is PST/MFWD; use PST=2 only for that test configuration. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC OIL FILTER AR94510; QRT Qty. 1 / PST Qty. 2.

Villkor: Keep QRT=1 and PST=2 distinct; no filter-change interval printed.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Transmissions-/hydrauliksystemets tätningsbrickaTätningsbricka R34733; byt vid behov eller årligen.
Källa

Originalvärde: Sealing washer R34733; replace as required or annually. part number; conditional / annual interval

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The washer note has no PST/QRT, MFWD, engine or serial qualifier; the page title includes 4755. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC > SEALING WASHER R34733 and adjacent instruction.

Villkor: Do not turn “as required or annually” into a fixed-hour interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Kraftuttag

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4755 · Kraftuttag
UppgiftVärde och utförandeKälla
Bakre kraftuttagets konstruktion och standardaxelOberoende kraftuttag med hydraulmanövrerad våtlamellkoppling som styrs med handspak, fristående från huvudkopplingen; en axel. Bakre standardkraftuttag: 1000 r/min, axeldiameter 44.5 mm, 20 splines enligt ISO 500/1979; axelhöjd 739 mm och placering 559 mm bakom bakaxeln; medurs sett från axeländen.
Källa

Originalvärde: Independent PTO with hydraulically actuated wet multi-plate clutch operated by hand lever, independent of main drive clutch; one shaft. Standard rear PTO: 1000 r/min, 44.5 mm shaft, 20 splines, ISO 500/1979; shaft height 739 mm and 559 mm behind rear axle; clockwise at shaft end. configuration; r/min; mm; splines; standard

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.8 (printed p.5), POWER TAKE-OFF paragraph and standard shaft table cells

Villkor: The report lists the standard 1000 r/min shaft; no optional shaft is inferred.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

PTO-effekt i tvåtimmarsraden vid maximal effektKraftuttagsprovets 2 h-rad vid maximal effekt: 133.45 kW (178.96 hp) vid motorvarvtal 2050 r/min och kraftuttagsvarvtal 970 r/min; bränsle 36.89 L/h (9.61 gal/h), 30.14 kg/h (66.44 lb/h); specifik förbrukning 0.226 kg/kWh (0.371 lb/hp·h); specifik energi 3.67 kWh/L (18.62 hp·h/gal).
Källa

Originalvärde: 2-hour maximum-power PTO test: 133.45 kW (178.96 hp) at engine 2050 r/min and PTO 970 r/min; fuel 36.89 L/h (9.61 gal/h), 30.14 kg/h (66.44 lb/h); specific consumption 0.226 kg/kWh (0.371 lb/hp·h); specific energy 3.67 kWh/L (18.62 hp·h/gal). PTO kW (hp); engine/PTO r/min; L/h (gal/h); kg/h (lb/h); kg/kWh (lb/hp·h); kWh/L (hp·h/gal)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.16 (printed p.13), Compulsory Tests > Main Power Take-Off Performance, row 1.1 “Maximum Power—2 hour test”

Villkor: This is measured PTO output, not crankshaft engine output. The source row prints 36.89 L/h and 9.61 gal/h, which do not convert consistently; preserve both printed values and flag the source-pair discrepancy without choosing a corrected number.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

PTO-effekt vid nominellt motorvarvtalProvets 1 h-rad ”Effekt vid nominellt motorvarvtal”: motor 2200 r/min, kraftuttag 998 r/min, kraftuttagseffekt 132.04 kW (177.06 hp); bränsle 36.82 L/h (9.73 gal/h), 30.50 kg/h (67.23 lb/h); specifik förbrukning 0.231 kg/kWh (0.380 lb/hp·h); specifik energi 3.59 kWh/L (18.20 hp·h/gal).
Källa

Originalvärde: 1-hour “Power at rated engine speed” row: engine 2200 r/min, PTO 998 r/min, PTO power 132.04 kW (177.06 hp); fuel 36.82 L/h (9.73 gal/h), 30.50 kg/h (67.23 lb/h); specific consumption 0.231 kg/kWh (0.380 lb/hp·h); specific energy 3.59 kWh/L (18.20 hp·h/gal). PTO kW (hp); engine/PTO r/min; L/h (gal/h); kg/h (lb/h); kg/kWh (lb/hp·h); kWh/L (hp·h/gal)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.16 (printed p.13), Compulsory Tests > Main Power Take-Off Performance, row 1.2 “Power at rated engine speed (1 hour)”

Villkor: Measured PTO output, not crankshaft engine output; preserve this one-hour row separately from the two-hour maximum-power row.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Underrede och band

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

4755 · Underrede och band
UppgiftVärde och utförandeKälla
Testtraktorns däck och redovisade tryckGoodyear-radialdäck: fram 16.9R30, 3 stjärnor (10 ply); bak 20.8R42, 2 stjärnor (10 ply). Däcktryck enligt däcktillverkaren: 165 kPa (24 psi) fram och bak. Dynamisk radie: fram 716 mm (28.2 in), bak 918 mm (36.1 in).

165 kPa fram och bak gäller däckspecifikationstabellen; dragstångsprovet hade 110 kPa bak och 165 kPa fram. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

Källa

Originalvärde: Goodyear radial tires: front 16.9R30, 3-star (10 ply); rear 20.8R42, 2-star (10 ply). Tire-manufacturer inflation 165 kPa (24 psi) front and rear; dynamic radius index 716 mm (28.2 in) front and 918 mm (36.1 in) rear. tire size; ply/star; kPa (psi); mm (in)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.14 (printed p.11), TEST CONDITIONS > Tire Specifications, front/rear columns

Villkor: The inflation figures are from the test-conditions tire-specification table; drawbar test p.23 uses rear 110 kPa and front 165 kPa, a separate test setup.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

MFWD: smörjmedel och ungefärlig kapacitet i hjulnavenMFWD-raden för 4555/4755/4955: GL-5-växelsmörjmedel (85W-140); hjulnav 2.8 L (3 qt).

Ungefärligt källvärde.

Källa

Originalvärde: 4555/4755/4955 MFWD group: GL-5 Gear Lubricant (85W-140); wheel hubs 2.8 L (3 qt). lubricant; approximate capacity L (qt)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: Apply only to MFWD-equipped 4755. DLG Test 1621 specimen RW4755P001033 is MFWD; sheet still gives no serial boundary or specimen-specific fill procedure. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Mechanical Front Wheel Drive (MFWD), GL-5 Gear Lubricant (85W-140), 4555/4755/4955 group, Wheel Hubs row.

Villkor: Approximate capacity for explicitly named MFWD group only.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Mått och vikt

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4755 · Mått och vikt
UppgiftVärde och utförandeKälla
Mått och markfrigång på testtraktornLängd 5461 mm (215.0 in); minsta bredd 2753 mm (108.0 in), största bredd 2797 mm (110.0 in); höjd till hytt 3122 mm (122.9 in), till avgasrörets överkant 3259 mm (128.3 in); oballasterad markfrigång 422 mm (16.6 in), begränsad av lyftens sidostag.

Måtten gäller det uppmätta testutförandet och behöver inte gälla alla däck-, vikt- eller tillvalsutföranden.

Källa

Originalvärde: Length 5461 mm (215.0 in); width minimum 2753 mm (108.0 in), maximum 2797 mm (110.0 in); height to cab 3122 mm (122.9 in), to exhaust 3259 mm (128.3 in); unballasted ground clearance 422 mm (16.6 in); clearance-limiting part: hitch sway blocks. mm (in)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.14 (printed p.11), TEST CONDITIONS > Overall dimensions rows

Villkor: These are the report's test-condition measurements, not a universal dimension for every tire/weight/option configuration.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Vikt för testtraktorn under angivna villkorMed hytt och full bränsletank: oballasterad vikt 8239 kg (18165 lb) utan förare och 8314 kg (18330 lb) med förare. Med ballast i testutförandet: 10362 kg (22845 lb) utan förare och 10437 kg (23010 lb) med förare.

Ballasterad provvikt omfattar bakvikter, dubbla bakhjul, främre ramvikter, tillagda vikter och provutrustning; den är inte traktorns tjänstevikt eller tillåtna totalvikt. · Ballasterad provvikt omfattar provets vikter och utrustning och är inte traktorns tjänstevikt eller tillåtna totalvikt.

Källa

Originalvärde: With cab and full fuel tank: unballasted 8239 kg (18165 lb) without driver and 8314 kg (18330 lb) with driver. Ballasted test configuration: 10362 kg (22845 lb) without driver and 10437 kg (23010 lb) with driver. kg (lb)

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.14 (printed p.11), TEST CONDITIONS > Tractor Mass table; ballast components listed below the totals

Villkor: Test-tractor mass only. The ballasted total includes the report's listed rear weights, rear duals, front frame, additional weights and test equipment; do not relabel as nominal operating or legal mass.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Motor och maskindata

Motor och effekt

John Deere 4755 · Motor och effekt
UppgiftVärde och utförandeKälla
Motortyp6076ARW06

Utförande 4755 Powershift MFWD · Engine model

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: PDF-sida 4

Utförande: 4755 Powershift MFWD

Mätning: Engine model

Kraftuttag

John Deere 4755 · Kraftuttag
UppgiftVärde och utförandeKälla
Kraftuttagseffekt133.45 kW (178.96 hp)

Utförande 4755 Powershift MFWD · PTO · Maximum power, 2-hour test

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 133.45 kW (178.96 hp) kW

Utförande: 4755 Powershift MFWD

Norm: PTO

Mätning: Maximum power, 2-hour test

Kraftuttagseffekt132.04 kW (177.06 hp)

Utförande 4755 Powershift MFWD · PTO · Power at rated engine speed, 1 hour

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 132.04 kW (177.06 hp) kW

Utförande: 4755 Powershift MFWD

Norm: PTO

Mätning: Power at rated engine speed, 1 hour

Kraftuttagseffekt133.45 kW (178.96 hp)

Utförande 4755 Powershift MFWD · Maximum power, 2-hour test

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 133.45 kW (178.96 hp) hp

Utförande: 4755 Powershift MFWD

Mätning: Maximum power, 2-hour test

Kraftuttagseffekt132.04 kW (177.06 hp)

Utförande 4755 Powershift MFWD · Power at rated engine speed, 1 hour

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 132.04 kW (177.06 hp) hp

Utförande: 4755 Powershift MFWD

Mätning: Power at rated engine speed, 1 hour

Transmission och drivning

John Deere 4755 · Transmission och drivning
UppgiftVärde och utförandeKälla
Transmissionfull powershift

Utförande 4755 Powershift MFWD · gearbox

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: Tryckt sida 3

Utförande: 4755 Powershift MFWD

System: gearbox

Drivning4WD

Utförande 4755 Powershift MFWD

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: PDF-sida 4

Utförande: 4755 Powershift MFWD

Mått, vikt och däck

John Deere 4755 · Mått, vikt och däck
UppgiftVärde och utförandeKälla
Vikt8 239 kg

Utförande 4755 Powershift MFWD · unballasted without driver, cab, full fuel

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 8239 kg kg

Sidangivelse: Tryckt sida 11

Utförande: 4755 Powershift MFWD

Mätning: unballasted without driver, cab, full fuel

Vikt8 314 kg

Utförande 4755 Powershift MFWD · unballasted with driver, cab, full fuel

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 8314 kg kg

Sidangivelse: Tryckt sida 11

Utförande: 4755 Powershift MFWD

Mätning: unballasted with driver, cab, full fuel

Längd5 461 mm

Utförande 4755 Powershift MFWD · overall length

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 5461 mm mm

Sidangivelse: Tryckt sida 11

Utförande: 4755 Powershift MFWD

Mätning: overall length

Höjd3 122 mm

Utförande 4755 Powershift MFWD · top of cab

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Källans värde: 3122 mm mm

Sidangivelse: Tryckt sida 11

Utförande: 4755 Powershift MFWD

Mätning: top of cab

Däck

John Deere 4755 · Däck
UppgiftVärde och utförandeKälla
Framdäck16.9R30

Utförande 4755 Powershift MFWD · test front

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: Tryckt sida 11

Utförande: 4755 Powershift MFWD

Villkor: test front

Bakdäck20.8R42

Utförande 4755 Powershift MFWD · test rear

Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

Sidangivelse: Tryckt sida 11

Utförande: 4755 Powershift MFWD

Villkor: test rear

Service och underhåll

4755 · Service och underhåll
UppgiftVärde och utförandeKälla
Deeres serienummerspecificerade luftfilter för 4755Primärt luftfilter: 4755 SN -010000 AR80652; 4755 SN 010001- RE46310. Sekundärt luftfilter: SN -010000 AR80653; SN 010001- RE46311. Rengör vid behov; byt årligen och vid behov.
Källa

Originalvärde: Primary air filter: 4755 SN -010000 AR80652; 4755 SN 010001- RE46310. Secondary air filter: SN -010000 AR80653; SN 010001- RE46311. Clean as required; replace annually and as required. part numbers; source SN labels; service interval

Utförande: Deere June 2016 55 Series Row-Crop service sheet; exact model/group and serial labels are transcribed from the cited cell.

Standard och villkor: Deere service/maintenance sheet. Page 2 labels capacities approximate and subject to change without notice.

Marknad: Official Deere English-language service sheet hosted on the U.S. parts domain; it does not specify a national sales market.

Källperiod: The sheet date is June 2016, not a tractor model year or production/PIN interval.

Underlag: Deere June 2016 PDF physical p.1, ENGINE > PRIMARY AIR FILTER and SECONDARY AIR FILTER, 4755 serial-number groups

Villkor: Preserve the OEM's literal SN split. It is not a conversion to model-year/PIN dates or a claim about every market.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-07

Öppna källa

Deeres bränslefilter och kontrollintervallMotorns bränslefilter AR86745 och bränslesil AR103220; kontroll var 10 h eller dagligen; byt vid behov.
Källa

Originalvärde: Engine fuel filter AR86745 and fuel strainer AR103220; check every 10 hours or daily; replace as required. part numbers; hours / daily

Utförande: Deere June 2016 55 Series Row-Crop service sheet; exact model/group and serial labels are transcribed from the cited cell.

Standard och villkor: Deere service/maintenance sheet. Page 2 labels capacities approximate and subject to change without notice.

Marknad: Official Deere English-language service sheet hosted on the U.S. parts domain; it does not specify a national sales market.

Källperiod: The sheet date is June 2016, not a tractor model year or production/PIN interval.

Underlag: Deere June 2016 PDF physical p.1, ENGINE > FUEL FILTER / FUEL STRAINER and service text

Villkor: Service guidance from the shared 55 Series sheet, not a claim of an individual test unit's installed filter serial.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-07

Öppna källa

Deeres ungefärliga bränsletanksvolym för 4755-gruppen4555, 4755, 4955 group: 386 L (102 gal). L (gal)

Ungefärligt källvärde.

Källa

Utförande: Deere June 2016 55 Series Row-Crop service sheet; exact model/group and serial labels are transcribed from the cited cell.

Standard och villkor: Deere service/maintenance sheet. Page 2 labels capacities approximate and subject to change without notice.

Marknad: Official Deere English-language service sheet hosted on the U.S. parts domain; it does not specify a national sales market.

Källperiod: The sheet date is June 2016, not a tractor model year or production/PIN interval.

Underlag: Deere June 2016 PDF physical p.2, CAPACITIES (Approximate) > Fuel Tank, 4555/4755/4955 row

Villkor: Approximate shared-group capacity; not a measured fill volume for the DLG specimen.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-07

Öppna källa

Deeres ungefärliga vevhusvolym med filter för 4755-gruppenGruppen 4555, 4755 och 4955: 21 L (5.5 gal) vevhusvolym inklusive filter; Plus-50 II-raden.

Ungefärligt källvärde.

Källa

Originalvärde: 4555, 4755, 4955 group: 21 L (5.5 gal), crankcase with filter; Plus-50 II row. L (gal)

Utförande: Deere June 2016 55 Series Row-Crop service sheet; exact model/group and serial labels are transcribed from the cited cell.

Standard och villkor: Deere service/maintenance sheet. Page 2 labels capacities approximate and subject to change without notice.

Marknad: Official Deere English-language service sheet hosted on the U.S. parts domain; it does not specify a national sales market.

Källperiod: The sheet date is June 2016, not a tractor model year or production/PIN interval.

Underlag: Deere June 2016 PDF physical p.2, CAPACITIES (Approximate) > Crankcase with Filter, Plus-50 II, 4555/4755/4955 row

Villkor: Approximate shared-group capacity; preserve the with-filter qualifier.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-07

Öppna källa

Deeres ungefärliga Hy-Gard-volym i PST-tabellenTransmission (PST), Hy-Gard: 70.5 L (18.5 gal) för 4555/4755/4955; 75 L (20 gal) för 4555/4755/4955 med MFWD.
Källa

Originalvärde: Transmission (PST), Hy-Gard: 70.5 L (18.5 gal) for 4555/4755/4955; 75 L (20 gal) for 4555/4755/4955 (MFWD). L (gal)

Utförande: Deere June 2016 55 Series Row-Crop service sheet; exact model/group and serial labels are transcribed from the cited cell.

Standard och villkor: Deere service/maintenance sheet. Page 2 labels capacities approximate and subject to change without notice.

Marknad: Official Deere English-language service sheet hosted on the U.S. parts domain; it does not specify a national sales market.

Källperiod: The sheet date is June 2016, not a tractor model year or production/PIN interval.

Underlag: Deere June 2016 PDF physical p.2, CAPACITIES (Approximate) > Transmission (PST), Hy-Gard; the two exact model-group rows

Villkor: Approximate values. Keep PST distinct from QRT and preserve the separate MFWD row; this sheet is not a test-variant equivalence source.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-07

Öppna källa

Hyttens recirkulations- och friskluftsfilterRecirkulationsfilter: standardfilter RE12793 eller kraftigt filter RE67830. Friskluftsfilter: R65450. Kontroll var 250 h; byt årligen och vid behov; följ maskinens serviceindikering.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Recirculation air filter: standard RE12793 or heavy-duty RE67830. Fresh-air filter: R65450. Check every 250 hours; replace annually and as required; service as indicated on the machine. part numbers; hours / calendar

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The page-1 CAB callouts have no individual model, engine, transmission, drive or serial qualifier; the sheet title includes 4755. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, CAB > RECIRCULATION AIR FILTER (standard/heavy-duty) and FRESH AIR FILTER; adjacent service instructions.

Villkor: Two cab callouts grouped because they share the printed instructions. Does not infer which cab/filter package is fitted.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Returkollektor · rengöringsintervallReturkollektorns sil R27173; rengör var 1,500 h.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Return oil manifold screen R27173; clean every 1,500 hours. part number; hours

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The page-1 sheet title includes 4755; this callout has no printed engine-code, transmission, drive or serial qualifier. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, TRANSMISSION/HYDRAULIC > RETURN OIL MANIFOLD SCREEN R27173 and “Clean filter every 1500 hours.”

Villkor: The source says clean every 1,500 hours; it does not state replacement at that interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Deere: motoroljefilter och serviceintervallMotoroljefilter DZ101880; byt var 250 h eller årligen.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Engine oil filter DZ101880; replace every 250 hours or annually. part number; hours / calendar

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The p.1 callout has no model-specific engine, transmission, drive or serial qualifier; the 55 Series title includes 4755. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.1, ENGINE > OIL FILTER DZ101880 and adjacent replacement instruction.

Villkor: Filter replacement interval, not engine-oil change interval.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Deere: Cool-Gard II och ungefärlig kylsystemskapacitetCool-Gard II; ungefärlig kylsystemvolym 30.3 L (8 gal), raden för 4555/4755/4955.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: Cool-Gard II; approximate cooling-system capacity 30.3 L (8 gal), 4555/4755/4955 row. OEM coolant; approximate capacity L (gal)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The OEM row lists 4755 but does not split by engine code, PST/QRT, MFWD or serial. DLG Test 1621 separately reports 30.3 L (32 qt) for the 4755 PST/MFWD specimen; this adds OEM Cool-Gard II context. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Cooling System > Cool-Gard II > 4555/4755/4955 row.

Villkor: Numeric capacity matches the DLG test record; this is the separate OEM approximate row. No mix ratio stated.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Deere: ungefärlig QRT-kapacitet för 4755-gruppenQRT med Hy-Gard: ungefärlig kapacitet 101.8 L (26.9 US gal) för gruppen 4555/4755.

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd.

Källa

Originalvärde: Transmission (QRT), Hy-Gard: approximate capacity 101.8 L (26.9 gal), 4555/4755 group. L (US gal); QRT

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: The source explicitly lists 4755 in QRT row, without a separate MFWD or serial cell. DLG Test 1621 profile is PST/MFWD, serial RW4755P001033; this QRT cell is not that test transmission. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Transmission (QRT), Hy-Gard, 4555/4755 row.

Villkor: Do not attach QRT value to PST test specimen or infer QRT serial/year range.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

MFWD: smörjmedel och ungefärlig kapacitet i axelhusetMFWD-raden för 4555/4755/4955: GL-5-växelsmörjmedel (85W-140); axelhus 11.4 L (3 gal).

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Ungefärligt källvärde.

Källa

Originalvärde: 4555/4755/4955 MFWD group: GL-5 Gear Lubricant (85W-140); axle housing 11.4 L (3 gal). lubricant; approximate capacity L (gal)

Utförande: Official John Deere June 2016 55 Series Row-Crop service sheet. Its title lists 4055, 4255, 4455, 4555, 4755 and 4955. Exact model/group scope: 4755. Profile context from Nebraska Test 1621 / OECD 1236: PST (PowerShift), MFWD/4WD, engine John Deere 6076ARW06 per DLG #1621, tested serial RW4755P001033. Row applicability: Apply only to MFWD-equipped 4755. DLG Test 1621 specimen RW4755P001033 is MFWD; sheet still gives no serial boundary or specimen-specific fill procedure. No sheet or report statement here establishes a model year, production/PIN boundary, or a specific sales market. The report’s literal “first serial” RW4755P001001 (literal “1st Serial number”; not a boundary) is not converted to a production boundary.

Standard och villkor: OEM service/parts reference; no certification or test standard is stated. Page 2 labels capacities approximate.

Marknad: English-language John Deere service sheet on Deere's U.S. parts domain; no specific national sales market or individual tractor market is stated.

Källperiod: Sheet dated June 2016 and marked subject to change without notice; not a model year or production/PIN interval.

Underlag: Deere June 2016 sheet PDF p.2, CAPACITIES (Approximate) > Mechanical Front Wheel Drive (MFWD), GL-5 Gear Lubricant (85W-140), 4555/4755/4955 group, Axle Housing row.

Villkor: Approximate capacity for explicitly named MFWD group only.

Publicerad: June 2016; subject to change without notice.

Läst: 2026-10-08

Öppna källa

Övriga uppgifter

Nordamerikansk källa eller provning; svensk orderstatus är inte fastställd. · Provuppgift för det angivna utförandet; gäller inte automatiskt alla exemplar. · OECD

4755 · Övriga uppgifter
UppgiftVärde och utförandeKälla
DLG-testad traktor och identitetsbeteckningarJohn Deere 4755, PowerShift med mekanisk fyrhjulsdrift (4WD); testspecimenets serienummer RW4755P001033; källans första serienummer (1st): RW4755P001001.

Provrapportens uppgift om ”första serienummer” återges ordagrant; den anger inte produktionsstart, modellår eller ett fullständigt PIN-intervall.

Källa

Originalvärde: 4755; “Powershift with Mechanical Front Wheel Drive (4WD)”; tested-tractor serial RW4755P001033; “1st Serial number” RW4755P001001. model / configuration / serial

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.1 cover and p.4 (printed p.1), title, Tractor, Type and serial-number cells

Villkor: Serial labels describe the report/specimen. “1st Serial number” is not a dated production start, MY, or a complete PIN interval.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Spridare, insprutningstryck och tidpunktNippondenso RE30083-insprutare, 21 mm; insprutningstryck 29.0 MPa (4200 psi); insprutningstidpunkt 27° före övre dödläget (TDC).
Källa

Originalvärde: Nippondenso RE30083, 21 mm injectors; injection pressure 29.0 MPa (4200 psi); timing 27° before TDC. make/model; mm; MPa (psi); degrees

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.5 (printed p.2), FUEL SYSTEM > Injectors, Pressure and Timing cells

Villkor: Preserve the report's pressure and timing specification; no other injector revision is inferred.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Elsystem och generator12 V likström, minusjord; remdriven Nippondenso RE37201-generator med märkström 120 A vid motorvarvtal 2200 r/min.
Källa

Originalvärde: 12 V DC, negative ground; belt-driven Nippondenso RE37201 alternator rated 120 A at 2200 engine r/min. V DC; A; r/min

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.6 (printed p.3), ELECTRICAL SYSTEM and Alternator rows

Villkor: The alternator rating is at the stated engine speed.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

BatterierTvå parallellkopplade batterier på 12 V; vardera 175 Ah vid 20 h-klassning och 925 A kallstartström.
Källa

Originalvärde: Two 12 V batteries connected in parallel; each 175 Ah at 20-hour rate and 925 cold-cranking amps. count; V; Ah; A

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.6 (printed p.3), ELECTRICAL SYSTEM > Batteries cells

Villkor: Per-battery ratings are kept distinct from the parallel connection.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Dragstångsresultat i 12:e växeln, oballasteradDLG/OECD-data för dragstång (SI), oballasterad traktor på betong i 12:e växeln: dragstångseffekt 112.89 kW; dragkraft 30.70 kN; hastighet 13.24 km/h; motorvarvtal 2053 r/min; slirning 2.61 %; specifik bränsleförbrukning 0.265 kg/kWh och energi 3.12 kWh/L. Tabellen anger dragstångshöjd 483 mm, däcktryck 110 kPa bak och 165 kPa fram.
Källa

Originalvärde: DLG OECD Drawbar Data (SI), unballasted tractor on concrete, 12th gear: drawbar power 112.89 kW; pull 30.70 kN; speed 13.24 km/h; engine 2053 r/min; slip 2.61%; specific fuel consumption 0.265 kg/kWh and 3.12 kWh/L. Test table states drawbar height 483 mm, rear tire pressure 110 kPa, front 165 kPa. kW; kN; km/h; r/min; %; kg/kWh; kWh/L; mm; kPa

Utförande: John Deere 4755 test tractor, Powershift, Mechanical Front Wheel Drive (4WD/MFWD), Nebraska Test No. 1621 / OECD Test No. 1236; test conducted April–May 1989. DLG test-unit serial RW4755P001033. Values are report/test scoped.

Standard och villkor: Nebraska Test No. 1621 and OECD Test No. 1236; report also prints C(87)53 Final, Annex II, Restricted Code. These identify the report; no broader certification claim is made.

Marknad: DLG names the test site as the Center for Agricultural Equipment, University of Nebraska, Lincoln, Nebraska, USA; no sales country or Swedish availability is stated.

Källperiod: The report documents a 1989 test and 1990 report dates; it does not state a model year, production interval, or PIN boundary.

Underlag: physical PDF p.23 (printed p.20), DRAWBAR POWER AND FUEL CONSUMPTION (UNBALLASTED TRACTOR), OECD Drawbar Data (SI), 12th gear row and conditions

Villkor: Drawbar output under the listed test conditions; it is not engine or PTO power. No rated-speed claim is made.

Publicerad: DLG report: OECD approval 15 February 1990; signature date 27 April 1990; tests April–May 1989. Publication date not separately stated.

Läst: 2026-10-07

Öppna källa

Jämför modelluppgifter

Jämför källrader för två valda profiler.

Det finns ännu ingen särskilt utvald jämförelse för den här profilen.

Jämförelsen visar modellernas publicerade uppgifter och villkor.

Oljemängder och oljetyp

Oljevolymer, oljespecifikationer och serviceintervall.

Angivna fyllnadsmängder och serviceuppgifter enligt respektive källa
UppgiftVärde och utförandeKälla
Motorolja21 l 4755 Powershift MFWD · engine without filter
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Engine (w/o filter) 21 liter (22 quart).

Utförande: 4755 Powershift MFWD

System: engine without filter

Transmissionsolja75 l 4755 Powershift MFWD · gearbox including rear axle and rear final drive
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Gear Box, includes rear axle and rear final drive, 75 liter (80 quart). Hydraulsystemet är common with gearbox.

Utförande: 4755 Powershift MFWD

System: gearbox including rear axle and rear final drive

Framaxel9 l 4755 Powershift MFWD · front axle housing
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Front axle housing 9 liter (9.5 quart).

Utförande: 4755 Powershift MFWD

System: front axle housing

Framaxel4,5 l 4755 Powershift MFWD · front final drive
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Final drive, front 4.5 liter (4.8 quart).

Utförande: 4755 Powershift MFWD

System: front final drive

Oljespecifikation · engine oilJohn Deere Torq-Gard Supreme, 102 cSt, API-CD, MIL-L-2104D. 4755 Powershift MFWD · engine oil
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Engine oil recommended.

Utförande: 4755 Powershift MFWD

System: engine oil

Oljespecifikation · transmission, hydraulic and steeringJohn Deere Hy-Gard, 58 cSt. Hydraulvätska och styrningsolja samma som transmissionsoljan. Framaxel och nav: GL-5, 85W-140. 4755 Powershift MFWD · transmission, hydraulic and steering
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Hy-Gard är inte motorolja.

Utförande: 4755 Powershift MFWD

System: transmission, hydraulic and steering

Serviceintervallmotorolja 250 h; motoroljefilter 250 h; transmissionsolja 1 500 h; hydraulolja 1 500 h 4755 Powershift MFWD · OECD oil table
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida -12-. Motorolja och filter 250 h. Växellåda 1500 h. Hydraulintervallet följer den gemensamma växellådan. Filterbyte annually lagras inte som timmar.

Utförande: 4755 Powershift MFWD

Villkor: OECD oil table

Bränsle och kylvätska

Angivna volymer enligt respektive källa
UppgiftVärde och utförandeKälla
Kylvätska30,3 l 4755 Powershift MFWD · cooling system
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. Tryckt sida 2. Coolant system capacity 30.3 liter (32 qt).

Utförande: 4755 Powershift MFWD

System: cooling system

Bränsletank386 l 4755 Powershift MFWD · fuel tank
Källa

OECD restricted-code test, John Deere 4755 Powershift MFWD, DLG file Nr1236

Utgivare: Center for Agricultural Equipment, University of Nebraska

Utgåva: 1989

OECD-fil Nr1236, provtraktor 4755 med mekanisk framhjulsdrift. Kraftuttag 1989-04-21, Lincoln, Eaton Dynamatic 2025 D.G.. PDF-sida 4. Fuel Tank capacity 386 liter (102 US gallons).

Utförande: 4755 Powershift MFWD

System: fuel tank

Källor

Öppna källraden för exakt publikation, villkor och variant.

Om underlaget
Modellkod
4755
Generation
John Deere 55 Series Row-Crop tractor; 4755 is explicitly listed by Deere. Production/MY/PIN span is not established.
Marknad
DLG report identifies a Nebraska test site in the USA; Deere service sheet is English-language OEM material on the U.S. parts domain. Neither establishes sales country, Swedish availability, or registered market.
Källperiod
DLG test conducted April–May 1989; DLG report approved 15 February 1990 and signed 27 April 1990. These dates do not establish MY or production/PIN boundaries.

Avgränsat källunderlag · status gap · omfattning jämförelsefakta.

En fullständig granskning av hela modellguiden är inte dokumenterad.

Öppna kontrollfrågor (6)
  • No explicit model year, production span, or general PIN range.
  • No sales market or Swedish availability established.
  • No 2WD or Quad-Range test results proposed.
  • No verified rated crankshaft engine power value; measured output rows here are PTO or drawbar tests.
  • DLG p.16 has a printed L/h-to-gal/h mismatch in the two-hour maximum-power row; both source values are preserved pending review.
  • No full user guide/service manual or universal option/fitment coverage.
