John Deere 6330 Premium

6330P: Nominellt motorvarvtal anges till 2 300 varv/min. Nominell motoreffekt i kW · 97/68 EC är 81 kW. PowerQuad Plus · 20/20, 2.5–40 km/h anges till –.

Visa underlag till modellöversikten

Faktarader

Källposter

Cylinderantal och slagvolym · originalcell
4/4530
Nominell motoreffekt i kW · 97/68 EC
81 kW
Bakre trepunktslyft · kategori
III N
Hjulbas
2 400 mm

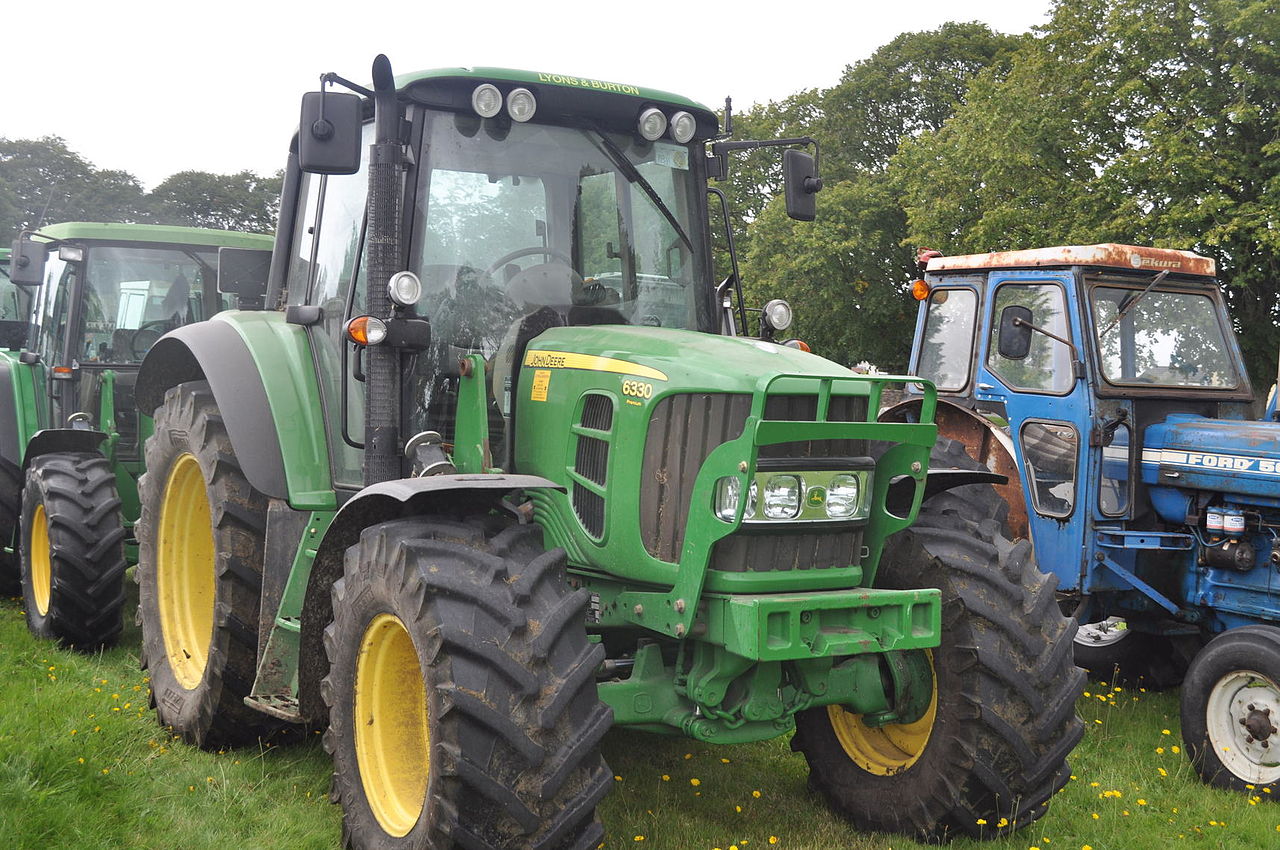

John Deere 6330 Premium vid ett traktorevenemang, med en blå Ford bredvid.
John Deere 6330 Premium vid Edward Cosgrave Tractor Run, Irland, 21 augusti 2011. Fotot fastställer inte årsmodell, transmission eller marknadsutförande.
Foto: Peter Mooney · Nedskalad Commons-version · CC BY-SA 2.0 · Bildkälla

Översikt

Motor och effekt

Nominell motoreffekt i kW · 97/68 EC är 81 kW. Nominell motoreffekt med IPM, i kW · 97/68 EC är 92 kW. Nominell motoreffekt i kW · ECE-R24 är 77 kW. Nominell motoreffekt med IPM, i kW · ECE R24 är 88 kW. Maximal motoreffekt i kW · 97/68 EC är 87 kW.

Fakta och källor till avsnittet

Faktarader

Källposter

Kraftuttag

Bakre PTO · cellvärdessekvens vid 540/540E/1000 PTO-hastighet anges till 2143 / 1684 / 2208. Bakre PTO-koppling anges till elektrohydrauliskt manövrerad Oljekyld multi-disc clutch. PTO · varvtalsval i CommandCenter anges till Kraftassisterat val av 540, 540E och 1000 rpm via CommandCenter.

Fakta och källor till avsnittet

Faktarader

Källposter

Kraft, fart och format.

John Deere 6330 Premium

Alla tekniska data

Motoreffekt

kW

Nominell motoreffekt i kW · 97/68 EC81 kW
Fakta
Maximal motoreffekt i kW · 97/68 EC87 kW
Fakta

Skala 0–87 kW

Fler effektuppgifter

hp

Nominell effekt · original hp-värde · 97/68 EC110 hp
Fakta
Maxeffekt · original hp-värde · 97/68 EC118 hp
Fakta

Skala 0–118 hp

kW

Nominell motoreffekt i kW77 kW
Fakta
Maximal motoreffekt i kW83 kW
Fakta

Skala 0–83 kW

hp

Nominell effekt · original hp-värde105 hp
Fakta
Maxeffekt · original hp-värde113 hp
Fakta

Skala 0–113 hp

Nominell motoreffekt med IPM, i kW92 kWMätt under körning.Fakta
Nominell effekt med IPM · original hp-värde125 hpMätt under körning.Fakta
Nominell motoreffekt med IPM, i kW88 kWMätt under körning.Fakta
Nominell effekt med IPM · original hp-värde120 hpMätt under körning.Fakta

Hastighet

AutoQuad Plus · ECOSHIFTVisad hastighet 40 km/h på skalan 0 till 40 km/h.02040

40 km/h

Fakta

Mått

Angiven variant
Längd och höjd i proportionRektangel proportionerad efter längd 4 289 mm och höjd 4 289 mm. Den visar inte maskinens form.4 289 mm · längd4 289 mm · höjd
Bredd × höjd × längd4 289 mmFakta
Bredd × höjd × längd4 289 mmFakta
Proportion mellan publicerade mått; bilden visar inte maskinens form.
Hjulbas2 400 mmFakta
Bredd × höjd × längd4 289 mmFakta

Viktuppgifter

Minsta leveransvikt4 540 kgFakta
Fler viktuppgifter
Max tillåten totalvikt vid 40 km/h9 000 kgFakta
Lastare 633 MSL · bakre John Deere-ballast enligt matris900 kgFakta
Lastare 633 HSL · bakre John Deere-ballast enligt matris900 kgFakta
Lastare 653 NSL · bakre John Deere-ballast enligt matris900 kgFakta
Lastare 653 MSL · bakre John Deere-ballast enligt matris900 kgFakta
Lastare 653 HSL · bakre John Deere-ballast enligt matris900 kgFakta
Lastare 683 NSL · bakre John Deere-ballast enligt matris900 kgFakta

Basvikt, ballast och totalvikt är skilda uppgifter.

Tekniska data

Motor och effekt

6330P · Motor och effekt
UppgiftVärde och utförandeKälla
Nominell motoreffekt i kW · 97/68 EC81 kW

EC

Källa

Originalrubrik: Nominell effekt · broschyrens kW-värde

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: 97/68 EC

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Nominell effekt: 81 kW (110 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Nominell effekt · original hp-värde · 97/68 EC110 hp

EC

Källa

Originalrubrik: Nominell effekt · original hp-värde

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: 97/68 EC

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Nominell effekt: 81 kW (110 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Maximal motoreffekt i kW · 97/68 EC87 kW

EC

Källa

Originalrubrik: Maxeffekt · broschyrens kW-värde

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: 97/68 EC

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Maxeffekt: 87 kW (118 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Maxeffekt · original hp-värde · 97/68 EC118 hp

EC

Källa

Originalrubrik: Maxeffekt · original hp-värde

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: 97/68 EC

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Maxeffekt: 87 kW (118 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Nominell motoreffekt med IPM, i kW92 kW

Mätt under körning. · EC

Källa

Originalrubrik: Nominell effekt med IPM · broschyrens kW-värde

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: 97/68 EC; mobile PTO and transport applications

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Nominell effekt med IPM (in mobile PTO and transport applications): 92 kW (125 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Nominell effekt med IPM · original hp-värde125 hp

Mätt under körning. · EC

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: 97/68 EC; mobile PTO and transport applications

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Nominell effekt med IPM (in mobile PTO and transport applications): 92 kW (125 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Nominell motoreffekt i kW77 kW

ECE-R24

Källa

Originalrubrik: Nominell effekt · broschyrens kW-värde

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: ECE-R24

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Nominell effekt: 77 kW (105 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Nominell effekt · original hp-värde105 hp

ECE-R24

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: ECE-R24

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Nominell effekt: 77 kW (105 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Maximal motoreffekt i kW83 kW

ECE-R24

Källa

Originalrubrik: Maxeffekt · broschyrens kW-värde

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: ECE-R24

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Maxeffekt: 83 kW (113 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Maxeffekt · original hp-värde113 hp

ECE-R24

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: ECE-R24

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Maxeffekt: 83 kW (113 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Nominell motoreffekt med IPM, i kW88 kW

Mätt under körning. · ECE R24

Källa

Originalrubrik: Nominell effekt med IPM · broschyrens kW-värde

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: ECE R24; brochure prints row label ‘ECER24’; mobile PTO and transport applications

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Nominell effekt med IPM (in mobile PTO and transport applications): 88 kW (120 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Nominell effekt med IPM · original hp-värde120 hp

Mätt under körning. · ECE R24

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: ECE R24; brochure prints row label ‘ECER24’; mobile PTO and transport applications

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: printed p.30, 6330 column, Nominell effekt med IPM (in mobile PTO and transport applications): 88 kW (120 hp). Both units are printed; neither is converted.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Maxmoment455 Nm

Momentstandard ej angiven

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure engine-performance row; no torque test standard stated

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, Maximum Torque: 455 Nm.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Konstant effektområde600 varv/min
Källa

Originalvärde: 600 rpm

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure row; no speed endpoints printed

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column: 600 rpm.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Momentreserv35 %
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure engine-performance row

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, Torque Reserve: 35%.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Nominellt motorvarvtal2 300 varv/min
Källa

Originalvärde: 2300 rpm

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure engine-specification row

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, Rated speed: 2300 rpm.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Cylinderantal och slagvolym · originalcell4/4530
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: OEM row label specifies ccm for displacement; combined cell is preserved literally

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, row heading ‘Cylinder and Displacement, ccm’; original cell is 4/4530. Kept literal rather than expanding a paired cell into unsupported engine-family claims.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

MotortypPowerTech Plus; CommonRail; 4 valves; Stage III A emissions certified
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure engine specification; merged row applies to the table scope

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Engine Type row is merged across the seven model columns.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Överladdning och avgasåterföringTurboladdare med variabel geometri, laddluftkylare och kyld avgasåterföring (EGR).
Källa

Originalvärde: Variable Geometry Turbocharger with Intercooler and Cooled Exhaust Gas Recirculation (EGR)

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure engine specification; merged row applies to the table scope

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Engine Aspiration row is merged across the seven model columns.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

PowerQuad Plus · 20/20, 2.5–40 km/h–

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning. · Standard ej angiven

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘PowerQuad Plus · 20/20, 2.5–40 km/h’: original mark ‘–’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

PowerQuad Plus · 24/24, 1.6–40 km/h●

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning. · Standard ej angiven

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘PowerQuad Plus · 24/24, 1.6–40 km/h’: original mark ‘●’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Transmission

6330P · Transmission
UppgiftVärde och utförandeKälla
AutoQuad Plus · 20/20, 2.5–40 or 2.5–50 km/h–

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning.

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘AutoQuad Plus · 20/20, 2.5–40 or 2.5–50 km/h’: original mark ‘–’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

AutoQuad Plus · 24/24, 1.6–40 km/h●

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning.

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘AutoQuad Plus · 24/24, 1.6–40 km/h’: original mark ‘●’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

AutoQuad Plus · 24/24, 2.0–50 km/h●

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning.

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘AutoQuad Plus · 24/24, 2.0–50 km/h’: original mark ‘●’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

AutoQuad Plus ECO SHIFT · 20/20, 2.5–40 km/h–

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning.

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘AutoQuad Plus ECO SHIFT · 20/20, 2.5–40 km/h’: original mark ‘–’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

AutoQuad Plus ECO SHIFT · 24/24, 2.0–40 km/h●

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning.

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘AutoQuad Plus ECO SHIFT · 24/24, 2.0–40 km/h’: original mark ‘●’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

AutoPowr · 50 m/h–40 km/h or 50 km/h●

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning.

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘AutoPowr · 50 m/h–40 km/h or 50 km/h’: original mark ‘●’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Creeper · PQ/AQ/AQ ECO SHIFT●

Tillval enligt källraden; monterad utrustning är inte verifierad. · Källans symbol återges utan att tolkas som standardutrustning.

Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Literal OEM matrix marker only; brochure contains no located legend defining filled dot/dash as standard/optional/orderable.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, transmission matrix cell for ‘Creeper · PQ/AQ/AQ ECO SHIFT’: original mark ‘●’.

Villkor: Preserved as the printed cell symbol; do not reinterpret as standard equipment or a fitted transmission.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

PowrQuad/AutoQuad Plus · SoftShiftKort automatisk anpassning av motorvarvtalet vid växling
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast PowrQuad Plus eller AutoQuad Plus med broschyrens SoftShift. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.14: SoftShift paragraph explicitly calls the function standard on both PowrQuad Plus and AutoQuad Plus, with brief automatic engine-speed adjustment.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

PowrQuad/AutoQuad Plus · frikopplingsknappKnapp på växelreglaget för byte av grupp under färd
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast PowrQuad Plus eller AutoQuad Plus. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.14: Bottom-left caption identifies a declutch button on PowrQuad Plus and AutoQuad Plus for shifting ranges on the go.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

AutoQuad Plus · ECOSHIFTTransport med lägre motorvarvtal; beskrivet alternativ för 40 km/h
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast broschyrens 40K AutoQuad Plus med ECOSHIFT. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.14: ECOSHIFT caption says available for the 40K AutoQuad Plus transmission. Diagram percentages are excluded: no test conditions or model-specific saving are supplied.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

TLS Plus · Auto-lägeDynamisk reglering med frekvens- och positionsgivare
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast med TLS Plus. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.19: Auto Mode bullet names frequency and position sensors for dynamic control.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

TLS Plus · Max-lägeStyvare reglering av framaxelfjädringen för precisionsarbete
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast med TLS Plus. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.19: Max Mode bullet describes stiffening front-axle suspension for accurate work, giving pallet placement as example; no fixed axle lock is claimed.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

TLS Plus · Manual-lägeManuell reglering av fjädringshöjden vid anslutning av främre utrustning
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast med TLS Plus. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.19: Manual Mode bullet describes manual suspension-height control for attaching front equipment.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

E-SCV · programmeringProgrammerbar reglering av hydraulflöde och tid
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast när E-SCV är monterade. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.20: The E-SCV sentence explicitly says hydraulic flow and time can be programmed.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

HMS Plus · vändtegssekvenserProgrammerade följder för bland annat redskapslyft, PTO och differentialspärr via CommandCenter
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast med HMS Plus och tillhörande styrfunktioner. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.21: Bottom caption explains sequencing multiple functions into one button, with implement raising, PTO/differential-lock disengagement and hot-key start/reverse. No unsupported sequence count is inferred.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Bakskärm · yttre reglageReglage för bakre lyft och PTO; toppstångsreglage anges som tillval

Tillval enligt källraden; monterad utrustning är inte verifierad.

Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Broschyrens yttre reglageutförande; toppstångsreglage uttryckligen tillval. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.21: Right caption names fender-mounted rear hitch/PTO remote switches and optional top-link control.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Riktningsväxling · reglageVänsterhandsmanövrerad fram/back-växlare
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Broschyrens vänsterhandsreglage; at-a-glance anger standard. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.28: Bottom bullet explicitly calls the left-hand reverser standard. No unsupported hydraulic clutch instruction is supplied.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

AutoPowr · PowerZeroNollhastighetsfunktion som håller traktor och last stilla
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast med broschyrens AutoPowr/PowerZero; tabellens symboler fastställer inte standardutrustning. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.25: Caption names PowerZero holding the tractor/load at zero speed, including on an incline. Not a parking or unattended-hold instruction.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

AutoPowr · AutoClutchAutomatisk kopplingsfunktion vid bromspedalmanövrering
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast med broschyrens AutoPowr/AutoClutch. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.25: Same caption says the integrated AutoClutch feature acts when the brakes are stepped on. It does not define brake configuration, override controls or parking procedures.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Lastare 633 NSL · bakre John Deere-ballast enligt matris0 kg
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast lastare 633 NSL, matrisens kolumn 6330/6430. NSL = utan självnivellering; MSL = mekanisk självnivellering; HSL = hydraulisk självnivellering. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.29: Matrix row 633/NSL, literal 6330/6430 column: 0. Legend defines 0 as compatible without ballast and shaded 900/1150 as compatible with John Deere rear ballast of the specified kg value. Blank cells and starred 583/quote-marked 6630/6530 cases are excluded. This is rear ballast, not loader lift capacity.

Villkor: Historisk lastarmatris och dess angivna bakre ballast. Inte komplett monterings-/stabilitetsbedömning, maximal last eller godkännande för annan lastare/utrustning; sidan hänvisar till återförsäljare för detaljerade specifikationer.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Lastare 633 MSL · bakre John Deere-ballast enligt matris900 kg
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast lastare 633 MSL, matrisens kolumn 6330/6430. NSL = utan självnivellering; MSL = mekanisk självnivellering; HSL = hydraulisk självnivellering. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.29: Matrix row 633/MSL, literal 6330/6430 column: 900. Legend defines 0 as compatible without ballast and shaded 900/1150 as compatible with John Deere rear ballast of the specified kg value. Blank cells and starred 583/quote-marked 6630/6530 cases are excluded. This is rear ballast, not loader lift capacity.

Villkor: Historisk lastarmatris och dess angivna bakre ballast. Inte komplett monterings-/stabilitetsbedömning, maximal last eller godkännande för annan lastare/utrustning; sidan hänvisar till återförsäljare för detaljerade specifikationer.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Lastare 633 HSL · bakre John Deere-ballast enligt matris900 kg
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast lastare 633 HSL, matrisens kolumn 6330/6430. NSL = utan självnivellering; MSL = mekanisk självnivellering; HSL = hydraulisk självnivellering. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.29: Matrix row 633/HSL, literal 6330/6430 column: 900. Legend defines 0 as compatible without ballast and shaded 900/1150 as compatible with John Deere rear ballast of the specified kg value. Blank cells and starred 583/quote-marked 6630/6530 cases are excluded. This is rear ballast, not loader lift capacity.

Villkor: Historisk lastarmatris och dess angivna bakre ballast. Inte komplett monterings-/stabilitetsbedömning, maximal last eller godkännande för annan lastare/utrustning; sidan hänvisar till återförsäljare för detaljerade specifikationer.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Lastare 653 NSL · bakre John Deere-ballast enligt matris900 kg
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast lastare 653 NSL, matrisens kolumn 6330/6430. NSL = utan självnivellering; MSL = mekanisk självnivellering; HSL = hydraulisk självnivellering. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.29: Matrix row 653/NSL, literal 6330/6430 column: 900. Legend defines 0 as compatible without ballast and shaded 900/1150 as compatible with John Deere rear ballast of the specified kg value. Blank cells and starred 583/quote-marked 6630/6530 cases are excluded. This is rear ballast, not loader lift capacity.

Villkor: Historisk lastarmatris och dess angivna bakre ballast. Inte komplett monterings-/stabilitetsbedömning, maximal last eller godkännande för annan lastare/utrustning; sidan hänvisar till återförsäljare för detaljerade specifikationer.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Lastare 653 MSL · bakre John Deere-ballast enligt matris900 kg
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast lastare 653 MSL, matrisens kolumn 6330/6430. NSL = utan självnivellering; MSL = mekanisk självnivellering; HSL = hydraulisk självnivellering. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.29: Matrix row 653/MSL, literal 6330/6430 column: 900. Legend defines 0 as compatible without ballast and shaded 900/1150 as compatible with John Deere rear ballast of the specified kg value. Blank cells and starred 583/quote-marked 6630/6530 cases are excluded. This is rear ballast, not loader lift capacity.

Villkor: Historisk lastarmatris och dess angivna bakre ballast. Inte komplett monterings-/stabilitetsbedömning, maximal last eller godkännande för annan lastare/utrustning; sidan hänvisar till återförsäljare för detaljerade specifikationer.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Lastare 653 HSL · bakre John Deere-ballast enligt matris900 kg
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast lastare 653 HSL, matrisens kolumn 6330/6430. NSL = utan självnivellering; MSL = mekanisk självnivellering; HSL = hydraulisk självnivellering. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.29: Matrix row 653/HSL, literal 6330/6430 column: 900. Legend defines 0 as compatible without ballast and shaded 900/1150 as compatible with John Deere rear ballast of the specified kg value. Blank cells and starred 583/quote-marked 6630/6530 cases are excluded. This is rear ballast, not loader lift capacity.

Villkor: Historisk lastarmatris och dess angivna bakre ballast. Inte komplett monterings-/stabilitetsbedömning, maximal last eller godkännande för annan lastare/utrustning; sidan hänvisar till återförsäljare för detaljerade specifikationer.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Lastare 683 NSL · bakre John Deere-ballast enligt matris900 kg
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Endast lastare 683 NSL, matrisens kolumn 6330/6430. NSL = utan självnivellering; MSL = mekanisk självnivellering; HSL = hydraulisk självnivellering. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.29: Matrix row 683/NSL, literal 6330/6430 column: 900. Legend defines 0 as compatible without ballast and shaded 900/1150 as compatible with John Deere rear ballast of the specified kg value. Blank cells and starred 583/quote-marked 6630/6530 cases are excluded. This is rear ballast, not loader lift capacity.

Villkor: Historisk lastarmatris och dess angivna bakre ballast. Inte komplett monterings-/stabilitetsbedömning, maximal last eller godkännande för annan lastare/utrustning; sidan hänvisar till återförsäljare för detaljerade specifikationer.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Hydraulik och lyft

6330P · Hydraulik och lyft
UppgiftVärde och utförandeKälla
Maximalt hydraulflöde · originalcell71/110 l
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Hydraulic-system Maximum flow row; literal unit text retained

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column, Maximum flow: 71/110 l. The cell prints no ‘/min’ suffix, so no time unit is added.

Villkor: Do not present as a known L/min rate without another explicit source; 71/110 remains a paired cell value.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Bakre trepunktslyft · kategoriIII N
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure category cell; slashes retained without assigning an option hierarchy

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column, 3-Point Hitch–Rear: III N.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Maximal bakre lyftkapacitet vid krokar57.2 kN
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Hook capacity; original kN-only value, no kg conversion

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column, Maximum lift capacity at hooks: 57.2 kN.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Växellåda/slutväxel/hydraulolja · originalcell1500 h, 53 / 62 l
Källa

Originalrubrik: Transmission/slutväxel/hydraulolja · originalcell

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: The row-label qualifier is preserved; slash-separated fill capacities are not assigned to a named installed transmission

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column, row label includes ‘(with AutoPowr)’ and cell reads 1500 h, 53 / 62 l; the cell is preserved as printed.

Villkor: The row label says ‘with AutoPowr’; slash-separated capacities remain unmapped to named transmission configurations.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

HydraulsystemPFC-system (tryck- och flödeskompensering) med lastkänning.
Källa

Originalvärde: PFC System (pressure and flow compensating), load sensing

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure equipment description

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Hydraulic System row is merged across the seven model columns.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Bakre lyft · reglersystemElectronic lower link; load & depth control, infinite mix, float
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure equipment description

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, 3-Point Hitch–Rear Type row is merged across the seven model columns.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Hydrauluttag · reglagealternativElektriska E-SCV eller mekaniska M-SCV
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Reglagealternativ i seriens broschyr; ingen individuell standard/tillvalsmappning. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.20: Seeding Solutions paragraph gives electrical E-SCV or mechanical M-SCV as the two control choices.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Kraftuttag

6330P · Kraftuttag
UppgiftVärde och utförandeKälla
Bakre PTO · cellvärdessekvens vid 540/540E/1000 PTO-hastighet2143 / 1684 / 2208
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Row names PTO speeds but does not explicitly attach a unit to the value sequence

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column, row ‘540/540E/1000 Rear PTO at rated PTO speeds’: 2143 / 1684 / 2208. Values are retained as a raw sequence; the value cell does not print a separate unit.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Bakre PTO-kopplingelektrohydrauliskt manövrerad Oljekyld multi-disc clutch
Källa

Originalvärde: Electro-hydraulically operated oil cooled multi-disc clutch

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure equipment description; installed fitment not established

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, PTO–Rear Type row is merged across the seven model columns.

Villkor: Shared/merged brochure row, not proof of the equipment fitted to an individual tractor.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

PTO · varvtalsval i CommandCenterKraftassisterat val av 540, 540E och 1000 rpm via CommandCenter
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. Broschyrens kraftassisterade PTO-varvtalsväxling. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.27: Caption describes power-assisted speed changes and CommandCenter selection of 540, 540E and 1000 rpm, with a programmable hot key. Existing engine-speed table is retained separately.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Underrede och band

6330P · Underrede och band
UppgiftVärde och utförandeKälla
Däck i dimensionsraden14.9R24 and 16.9R38
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Tire sizes printed with the dimensions row; not a complete tire option list

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column, With tyre size: 14.9R24 and 16.9R38 as printed.

Villkor: Dimensions/tires vary by configuration; confirm actual tires and axle on the machine.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Chassi · ramkonstruktionFullängdsram
Källa

Utförande: 6330 Premium i OEM-broschyren 10/09. 6030 Premium-seriens fullängdsram enligt Loader Solutions. Beskrivningen gäller det angivna utrustningsutförandet inom serien; monterad utrustning och lokal tillgänglighet fastställs inte.

Standard och villkor: OEM brochure functional/equipment description; not independently measured performance or a machine-specific operating instruction.

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed/PDF p.28: Body describes a full-length frame protecting drivetrain components from load stresses. Reliability, service life and cycle-time marketing claims are excluded.

Villkor: Seriebeskrivning inom denna broschyrutgåva. Kontrollera utrustning och PIN-bunden instruktionsbok; detta är inte ett påstående om standardutrustning på varje exemplar.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Mått och vikt

6330P · Mått och vikt
UppgiftVärde och utförandeKälla
Hjulbas2 400 mm
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Original brochure row; no alternative units or model-year inference

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column: 2400 mm.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Bredd × höjd × längd2275 x 2714 x 4289 mm
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series; dimensions printed with tyre sizes: 14.9R24 and 16.9R38

Standard och villkor: Width x Height x Length in mm; sequence retained as printed

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column, Width x Height x Length row: 2275 x 2714 x 4289 mm. Following same-column tyre row: 14.9R24 and 16.9R38.

Villkor: Måtten gäller den tryckta däckkombinationen 14.9R24 and 16.9R38; mått för andra utföranden är inte fastställda.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Motor och maskindata

Motor och effekt

John Deere 6330P · Motor och effekt
UppgiftVärde och utförandeKälla
MotortypPowerTech Plus 4.53 L

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Motor · Motortyp och cylindervolym

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 4/4530 ccm

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Motor

Mätning: Motortyp och cylindervolym

Kraftuttag

John Deere 6330P · Kraftuttag
UppgiftVärde och utförandeKälla
Kraftuttagseffekt70 kW (95 hp)

Utförande John Deere 6330 Premium · PTO · Fabriksmätt vid nominellt kraftuttagsvarvtal, 1000 r/min; årsmodell t.o.m. 2009

Källa

John Deere Operator's Manual OMAL171299, Premium Tractors 6230, 6330 and 6430

Utgivare: John Deere

Källans värde: 70 kW (95 hp) kW (hp)

Utförande: John Deere 6330 Premium

Norm: PTO

Villkor: Fabriksmätt vid nominellt kraftuttagsvarvtal, 1000 r/min; årsmodell t.o.m. 2009

Kraftuttagseffekt70 kW (95 hp)

Utförande John Deere 6330 Premium · PTO · Fabriksmätt vid nominellt kraftuttagsvarvtal, 1000 r/min; från årsmodell 2010

Källa

John Deere Operator's Manual OMAL171299, Premium Tractors 6230, 6330 and 6430

Utgivare: John Deere

Källans värde: 70 kW (95 hp) kW (hp)

Utförande: John Deere 6330 Premium

Norm: PTO

Villkor: Fabriksmätt vid nominellt kraftuttagsvarvtal, 1000 r/min; från årsmodell 2010

Transmission och drivning

John Deere 6330P · Transmission och drivning
UppgiftVärde och utförandeKälla
TransmissionPowerQuad Plus; 24/24; 1,6–40 km/h

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Växellåda · Fylld markering. 6830 och 6930 har tankstreck på den här raden.

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: PowerQuad Plus 24/24 1.6–40 km/h

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Växellåda

Villkor: Fylld markering. 6830 och 6930 har tankstreck på den här raden.

TransmissionAutoQuad Plus; 24/24; 1,6–40 km/h

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Växellåda · Fylld markering.

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: AutoQuad Plus 24/24 1.6–40 km/h

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Växellåda

Villkor: Fylld markering.

TransmissionAutoQuad Plus; 24/24; 2,0–50 km/h

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Växellåda · Fylld markering.

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: AutoQuad Plus 24/24 2.0–50 km/h

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Växellåda

Villkor: Fylld markering.

TransmissionAutoQuad Plus ECO SHIFT; 24/24; 2,0–40 km/h

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Växellåda · Fylld markering.

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: AutoQuad Plus ECO SHIFT 24/24 2.0–40 km/h

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Växellåda

Villkor: Fylld markering.

TransmissionAutoPowr; 50 m/h–40 km/h eller 50 km/h

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Växellåda · AutoPowr, 50 m/h–40 km/h eller 50 km/h.

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 50 m/h – 40 km/h or 50 km/h

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Växellåda

Villkor: AutoPowr, 50 m/h–40 km/h eller 50 km/h.

TransmissionKrypväxel

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Växellåda · Creeper för PowerQuad Plus, AutoQuad Plus och AutoQuad Plus Ecoshift.

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: Creeper (PowerQuad Plus, AutoQuad Plus and AutoQuad Plus Ecoshift)

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Växellåda

Villkor: Creeper för PowerQuad Plus, AutoQuad Plus och AutoQuad Plus Ecoshift.

Framåtväxlar24 växlar

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Växellåda · PowerQuad Plus och AutoQuad Plus 24/24. · Antal växlar framåt

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 24/24

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Växellåda

Mätning: Antal växlar framåt

Villkor: PowerQuad Plus och AutoQuad Plus 24/24.

Backväxlar24 växlar

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Växellåda · PowerQuad Plus och AutoQuad Plus 24/24. · Antal växlar bakåt

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 24/24

Sidangivelse: tryckt s. 30

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Växellåda

Mätning: Antal växlar bakåt

Villkor: PowerQuad Plus och AutoQuad Plus 24/24.

Mått, vikt och däck

John Deere 6330P · Mått, vikt och däck
UppgiftVärde och utförandeKälla
Vikt4 540 kg

Utförande John Deere 6330 Premium, 6030 Premium Series · Minsta leveransvikt

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 4540 kg kg

Sidangivelse: tryckt s. 31 (PDF-s. 31)

Utförande: John Deere 6330 Premium, 6030 Premium Series

Mätning: Minsta leveransvikt

Vikt9 000 kg

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Högsta tillåtna bruttovikt vid 40 km/h

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 9000 kg

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Högsta tillåtna bruttovikt vid 40 km/h

Hjulbas2 400 mm

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Hjulbas

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 2400 mm

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Hjulbas

Längd4 289 mm

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Med däck 14.9R24 och 16.9R38. · Längd

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 4289 mm

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Längd

Villkor: Med däck 14.9R24 och 16.9R38.

Bredd2 275 mm

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Med däck 14.9R24 och 16.9R38. · Bredd

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 2275 mm

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Bredd

Villkor: Med däck 14.9R24 och 16.9R38.

Höjd2 714 mm

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Med däck 14.9R24 och 16.9R38. · Höjd

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 2714 mm

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Höjd

Villkor: Med däck 14.9R24 och 16.9R38.

Hydraulik och lyft

John Deere 6330P · Hydraulik och lyft
UppgiftVärde och utförandeKälla
Hydraulflöde71 l/min

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Hydraulpump · Första talet i cellen 71/110 l. Broschyren säger inte vilket tal som är standard. · Maximalt flöde

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 71/110 l l

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Hydraulpump

Mätning: Maximalt flöde

Villkor: Första talet i cellen 71/110 l. Broschyren säger inte vilket tal som är standard.

Hydraulflöde110 l/min

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Hydraulpump · Andra talet i cellen 71/110 l. Talen är inte summerade. · Maximalt flöde

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 71/110 l l

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Hydraulpump

Mätning: Maximalt flöde

Villkor: Andra talet i cellen 71/110 l. Talen är inte summerade.

Däck

John Deere 6330P · Däck
UppgiftVärde och utförandeKälla
Framdäck14.9R24

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Fram, listad först i With tyre size. · Däckdimension för de angivna måtten

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 14.9R24 and 16.9R38

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Däckdimension för de angivna måtten

Villkor: Fram, listad först i With tyre size.

Bakdäck16.9R38

Utförande John Deere 6330 Premium · Broschyr YY0914174E 10/09, worldwide circulation · Bak, listad efter and. · Däckdimension för de angivna måtten

Källa

6030 Premium Tractors

Utgivare: John Deere

Källans värde: 14.9R24 and 16.9R38

Sidangivelse: tryckt s. 31

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Däckdimension för de angivna måtten

Villkor: Bak, listad efter and.

Service och underhåll

6330P · Service och underhåll
UppgiftVärde och utförandeKälla
Motorolja · serviceintervall/volym500 h, 16 l
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Source-specific service interval and quantity

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column: Engine oil 500 h, 16 l.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Kylvätska · serviceintervall/volym1500 h, 24 l
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Source-specific service interval and quantity

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column: Engine Coolant 1500 h, 24 l.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Övriga uppgifter

6330P · Övriga uppgifter
UppgiftVärde och utförandeKälla
Bränsletank185 l
Källa

Originalrubrik: Bränsletank · original cell

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure cell; multiple capacities retained without assigning tank/market conditions

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30, 6330 column, Fuel Tank Capacity: 185 l.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Maximalt antal SCV4 st
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Maximum Selective Control Valves; not installed-count confirmation

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column: maximum 4 SCVs.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Ljudnivå i hytt70,6 dB(A)
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure Sound Reduction/Level row

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column: 70.6 dB(A).

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

KylfläktTemperature controlled viskofläkt
Källa

Originalvärde: Temperature controlled viscous fan

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure engine specification; merged row applies to the table scope

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Cooling fan drive row is merged across the seven model columns.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

BränsleinsprutningHigh Pressure CommonRail
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure engine specification; merged row applies to the table scope

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Fuel Injection system & Control row is merged across the seven model columns.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

TLS Plus · konstruktionHydro-pneumatic, permanent active, triple link; self-levelling; accumulators
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: TLS Plus option description; not installed-fitment confirmation

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Front Axles/TLS Plus Design row is merged across the seven model columns.

Villkor: Shared/merged brochure row, not proof of the equipment fitted to an individual tractor.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

TLS Plus · fjädringsväg100 mm suspension range
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: TLS Plus option description; not installed-fitment confirmation

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Front Axles/TLS Plus Suspension System row is merged across the seven model columns.

Villkor: Shared/merged brochure row, not proof of the equipment fitted to an individual tractor.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

TLS Plus · bromstillvalÖkad bromskapacitet genom extra bromsskivor i axelnavens bromsar.

Tillval enligt källraden; monterad utrustning är inte verifierad.

Källa

Originalvärde: Increased braking capacity by additional brake discs in the axle hubs

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Optional front-axle brake description; not installed-fitment confirmation

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Front Axles/TLS Plus Brakes (option) row is merged across the seven model columns.

Villkor: Shared/merged brochure row, not proof of the equipment fitted to an individual tractor.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

HyttutförandeVippbar hytt; 310° runtomsikt; teleskoperande och lutningsbar rattstång/ratt; 2 förvaringsfack; FieldOffice som tillval.
Källa

Originalvärde: Tiltable cab; 310° all-round vision; telescoping and tiltable steering column/wheel; 2 storage compartments; optional FieldOffice

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure cab description/options

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Cab Type row is merged across the seven model columns.

Villkor: Shared/merged brochure row, not proof of the equipment fitted to an individual tractor.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

HyttdisplayerCommandCenter and dashboard
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Brochure cab row; fitted display configuration not established

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.30–31, Cab Display row is merged across the seven model columns.

Villkor: Shared/merged brochure row, not proof of the equipment fitted to an individual tractor.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Minsta leveransvikt4 540 kg
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Minimum shipping weight; brochure definition only

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column: 4540 kg minimum shipping weight.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Max tillåten totalvikt vid 40 km/h9 000 kg
Källa

Utförande: John Deere 6330P; brochure table column 6330, explicitly within the 6030 Premium Series

Standard och villkor: Maximum permissible gross weight at 40 km/h, as explicitly stated

Marknad: The final page says worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.

Källperiod: Brochure print marking 10/09; document edition, not model year or production period

Underlag: Printed p.31, 6330 column: 9000 kg maximum permissible gross weight at 40 km/h.

Publicerad: Footer print code YY0914174E 10/09 on printed page 32 indicates an October 2009 print/publication marking; not model year or production range.

Läst: 2026-10-06

Öppna källa

Jämför modelluppgifter

Jämför källrader för två valda profiler.

Det finns ännu ingen särskilt utvald jämförelse för den här profilen.

Jämförelsen visar modellernas publicerade uppgifter och villkor.

Oljemängder och oljetyp

Oljevolymer, oljespecifikationer och serviceintervall.

Angivna fyllnadsmängder och serviceuppgifter enligt respektive källa
UppgiftVärde och utförandeKälla
Motorolja16 l John Deere 6330P Premium · Motoroljans volym · Premium-utförande; filterinkludering anges inte i broschyren.
Källa

6030 Premium Tractors

Utgivare: John Deere

John Deere 6030 Premium-broschyr, kod YY0914174E 10/09, global cirkulation enligt kolofonen. PDF p.31 (PDF-index P30; specifikationsuppslag p.30–31), tabellen "SERVICE INTERVALS AND QUANTITIES", raden "Engine oil", kolumnen "6330": originalcell "500 h, 16 l". Volymen är 16 l; broschyren belägger inte svensk försäljning. Filterinkludering anges inte i broschyren.

Utförande: John Deere 6330P Premium

Mätning: Motoroljans volym

Villkor: Premium-utförande; filterinkludering anges inte i broschyren.

Transmissionsolja53 l John Deere 6330 Premium · Transmission, slutväxel och hydraulolja med AutoPowr · Oljevolym · Första talet i cellen 53 / 62 l. Broschyren säger inte vilket tal som är standard.
Källa

6030 Premium Tractors

Utgivare: John Deere

John Deere 6030 Premium-broschyr YY0914174E 10/09, tryckt s. 31, Transmission, final drive and hydraulic oil (with AutoPowr). Kombinerad volym för transmission, slutväxel och hydraul, inte en separat hydraulbehållare. Första talet i cellen 53 / 62 l. Broschyren säger inte vilket tal som är standard. Filens sha256 f802bb549f6e71860446e926722889c7b1944e9ea76350617326c8262dcb50b8 stämmer med källposten, läst 2026-10-25.

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Transmission, slutväxel och hydraulolja med AutoPowr

Mätning: Oljevolym

Villkor: Första talet i cellen 53 / 62 l. Broschyren säger inte vilket tal som är standard.

Transmissionsolja62 l John Deere 6330 Premium · Transmission, slutväxel och hydraulolja med AutoPowr · Oljevolym · Andra talet i cellen 53 / 62 l. Talen är inte summerade.
Källa

6030 Premium Tractors

Utgivare: John Deere

John Deere 6030 Premium-broschyr YY0914174E 10/09, tryckt s. 31, Transmission, final drive and hydraulic oil (with AutoPowr). Kombinerad volym för transmission, slutväxel och hydraul, inte en separat hydraulbehållare. Andra talet i cellen 53 / 62 l. Talen är inte summerade. Filens sha256 f802bb549f6e71860446e926722889c7b1944e9ea76350617326c8262dcb50b8 stämmer med källposten, läst 2026-10-25.

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

System: Transmission, slutväxel och hydraulolja med AutoPowr

Mätning: Oljevolym

Villkor: Andra talet i cellen 53 / 62 l. Talen är inte summerade.

Hydraulik49 l John Deere 6330 Premium, PowrQuad Plus 16/16 · Transmission och hydraulik, gemensam reservoar · Grundvolym utan tillägg för krypväxel, framhjulsdrift, TLS-axel eller extra oljebehållare
Källa

John Deere Operator's Manual OMAL171299, Premium Tractors 6230, 6330 and 6430

Utgivare: John Deere

John Deere operatörshandbok OMAL171299, avsnitt Capacities (dokument-id 09001faa8137a453): Transmission/hydraulic system, raden PowrQuad Plus 16/16: 49 l. Gemensam reservoar för transmission och hydraulik; grundvolym utan tillägg (+1 l med krypväxel, +3 l med framhjulsdrift, +3 l med TLS-axel, +14 l med extra oljetank).

Utförande: John Deere 6330 Premium, PowrQuad Plus 16/16

System: Transmission och hydraulik, gemensam reservoar

Villkor: Grundvolym utan tillägg för krypväxel, framhjulsdrift, TLS-axel eller extra oljebehållare

Hydraulik50 l John Deere 6330 Premium, PowrQuad Plus 24/24 och AutoQuad Plus 24/24 · Transmission och hydraulik, gemensam reservoar · Grundvolym utan tillägg för krypväxel, framhjulsdrift, TLS-axel eller extra oljebehållare
Källa

John Deere Operator's Manual OMAL171299, Premium Tractors 6230, 6330 and 6430

Utgivare: John Deere

John Deere operatörshandbok OMAL171299, avsnitt Capacities (dokument-id 09001faa8137a453): Transmission/hydraulic system, raden PowrQuad Plus 24/24 och AutoQuad Plus 24/24: 50 l. Gemensam reservoar för transmission och hydraulik; grundvolym utan tillägg (+1 l med krypväxel, +3 l med framhjulsdrift, +3 l med TLS-axel, +14 l med extra oljetank).

Utförande: John Deere 6330 Premium, PowrQuad Plus 24/24 och AutoQuad Plus 24/24

System: Transmission och hydraulik, gemensam reservoar

Villkor: Grundvolym utan tillägg för krypväxel, framhjulsdrift, TLS-axel eller extra oljebehållare

Hydraulik60 l John Deere 6330 Premium, AutoPowr · Transmission och hydraulik, gemensam reservoar · Grundvolym utan tillägg för krypväxel, framhjulsdrift, TLS-axel eller extra oljebehållare
Källa

John Deere Operator's Manual OMAL171299, Premium Tractors 6230, 6330 and 6430

Utgivare: John Deere

John Deere operatörshandbok OMAL171299, avsnitt Capacities (dokument-id 09001faa8137a453): Transmission/hydraulic system, raden AutoPowr: 60 l. Gemensam reservoar för transmission och hydraulik; grundvolym utan tillägg (+1 l med krypväxel, +3 l med framhjulsdrift, +3 l med TLS-axel, +14 l med extra oljetank).

Utförande: John Deere 6330 Premium, AutoPowr

System: Transmission och hydraulik, gemensam reservoar

Villkor: Grundvolym utan tillägg för krypväxel, framhjulsdrift, TLS-axel eller extra oljebehållare

Oljespecifikation · vevhus med filterPlus-50 6330 Premium · vevhus med filter
Källa

John Deere 6030 Series Premium Tractors filter overview, 6230, 6330 and 6430, April 2021

Utgivare: John Deere

John Deere Filter Overview, 6030 Series Premium Tractors 6230, 6330 och 6430, april 2021, kapacitetssida. SHA-256 7754e28c8afcecf9e3abdbd74e5ea485e99992fc6cb6d2edce051afb1557636d. Vevhus med filter: Plus-50. Transmission and Hydraulic System: Hy-Gard. Front-PTO och framaxel skriver också Hy-Gard; de volymerna lagras inte, och den gemensamma transmissions-/hydraulvolymen kopieras inte till hydraulolja. Plus-50 II nämns bara som villkor för förlängt filterbyte och är inte kapacitetsradens oljenamn. 6534, 6630, 6830 och 6930 står inte på bladet.

Utförande: 6330 Premium

System: vevhus med filter

Oljespecifikation · transmission och hydraulikHy-Gard 6330 Premium · transmission och hydraulik
Källa

John Deere 6030 Series Premium Tractors filter overview, 6230, 6330 and 6430, April 2021

Utgivare: John Deere

John Deere Filter Overview, 6030 Series Premium Tractors 6230, 6330 och 6430, april 2021, kapacitetssida. SHA-256 7754e28c8afcecf9e3abdbd74e5ea485e99992fc6cb6d2edce051afb1557636d. Vevhus med filter: Plus-50. Transmission and Hydraulic System: Hy-Gard. Front-PTO och framaxel skriver också Hy-Gard; de volymerna lagras inte, och den gemensamma transmissions-/hydraulvolymen kopieras inte till hydraulolja. Plus-50 II nämns bara som villkor för förlängt filterbyte och är inte kapacitetsradens oljenamn. 6534, 6630, 6830 och 6930 står inte på bladet.

Utförande: 6330 Premium

System: transmission och hydraulik

Serviceintervallmotorolja 500 h; motoroljefilter 500 h; transmissionsolja 1 500 h; hydraulolja 1 500 h John Deere 6330 Premium · Motor, transmission och hydraulik · Motorolja och filter 500 h med premiumolja, JD-filter och bränsle under 0,2 % svavel (annars 250 h); transmissions-/hydraulolja 1500 h
Källa

John Deere Operator's Manual OMAL171299, Premium Tractors 6230, 6330 and 6430

Utgivare: John Deere

John Deere operatörshandbok OMAL171299, avsnitt 85 Service (Daily / Every 10, Every 250, Every 500, Every 750 Hours) (dokument-id 09001faa8190a73d): byte av motorolja och motoroljefilter står i kolumnerna 250 och 500 timmar, med hänvisning till avsnitt 80 Diesel Engine Oil and Filter Service Intervals (dokument-id 09001faa804120f8): 500 timmar med premiumolja (John Deere Plus-50, ACEA E7 eller E6), godkänt John Deere-filter och bränsle med under 0,2 % svavel; 250 timmar med standardolja. Motoroljan byts minst en gång per år. Avsnitt 85 Service (Annually, Every 1000, Every 1500 Hours) (dokument-id 09001faa8190a75f): Change oil in transmission/hydraulic system var 1500:e timme (gemensam olja för transmission och hydraulik).

Utförande: John Deere 6330 Premium

System: Motor, transmission och hydraulik

Villkor: Motorolja och filter 500 h med premiumolja, JD-filter och bränsle under 0,2 % svavel (annars 250 h); transmissions-/hydraulolja 1500 h

Bränsle och kylvätska

Angivna volymer enligt respektive källa
UppgiftVärde och utförandeKälla
Kylvätska24 l John Deere 6330 Premium · Kylvätska · Volymen står tillsammans med 1 500 h.
Källa

6030 Premium Tractors

Utgivare: John Deere

John Deere 6030 Premium-broschyr YY0914174E 10/09, tryckt s. 31, Engine Coolant 1 500 h, 24 l i kolumnen 6330. 1 500 h står bredvid volymen. Raden saknar motorfilter och separat hydraul och är inte interval_h. Filens sha256 f802bb549f6e71860446e926722889c7b1944e9ea76350617326c8262dcb50b8 stämmer med källposten, läst 2026-10-25.

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Kylvätska

Villkor: Volymen står tillsammans med 1 500 h.

Bränsletank185 l John Deere 6330 Premium · Bränsletank · Kolumnen trycker 185 l.
Källa

6030 Premium Tractors

Utgivare: John Deere

John Deere 6030 Premium-broschyr YY0914174E 10/09, tryckt s. 30, Fuel Tank Capacity, kolumn 6330. Kolumnen trycker 185 l. Filens sha256 f802bb549f6e71860446e926722889c7b1944e9ea76350617326c8262dcb50b8 stämmer med källposten, läst 2026-10-25.

Utförande: John Deere 6330 Premium

Marknad: Broschyr YY0914174E 10/09, worldwide circulation

Mätning: Bränsletank

Villkor: Kolumnen trycker 185 l.

Källor

Öppna källraden för exakt publikation, villkor och variant.

Om underlaget
Modellkod
6330P
Generation
6030 Premium Series; distinct from the standard 6030 Series and 7030 Large Frame/Premium families
Marknad
2009 Deere brochure states worldwide circulation and warns that some options/accessories are not available in all regions; Swedish order status is not established.
Källperiod
Brochure print marking 10/09; not a model year, manufacturing date, or PIN range.

Avgränsat källunderlag · status gap · omfattning jämförelsefakta.

En fullständig granskning av hela modellguiden är inte dokumenterad.

Öppna kontrollfrågor (8)
  • This source-bounded comparison profile is partial and does not approve a complete model guide or production/model-year range.
  • The 10/09 footer is a brochure print marking, not a tractor model year or production date; PIN/year ranges are not established.
  • The brochure says worldwide circulation and does not establish Swedish order availability or regional equipment applicability.
  • Transmission matrix dot/dash cells are preserved literally because the brochure pages inspected contain no symbol legend; do not infer standard fitment.
  • The brochure lists alternative/optional configurations; the specification installed on an individual tractor requires its PIN/order/build record.
  • The 71/110 l maximum-flow cells omit a time-unit suffix in the table; no L/min unit has been supplied or inferred.
  • Slash-separated lift-capacity, tank-capacity, and fluid-quantity cells remain as printed where the table does not identify the underlying equipment condition.
  • No PIN-specific operator manual, complete maintenance schedule, ownership/fault study, or verified local order sheet is included.
